6 Watt 100 Volt Ceiling Speaker

NAC-131

  • Multiple Power Options

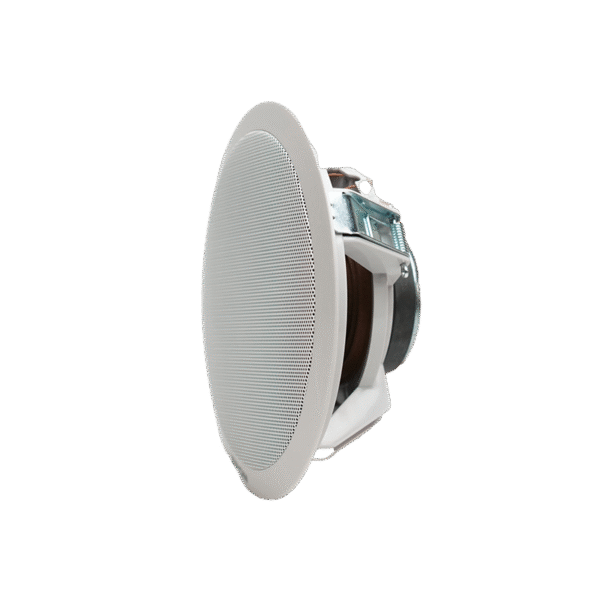

  • Adjustable Clamp Design
  • Composite Speaker Cone
  • Composite Suspension and Damping

Description

The NAC-131 full-range ceiling speaker, engineered for exceptional sound quality and user-friendly installation. Its composite speaker cone ensures clear and captivating audio reproduction. The robust adjustable clamp design simplifies setup, providing a secure installation. To enhance longevity and maintain performance, the speaker incorporates composite suspension and damping treatment.

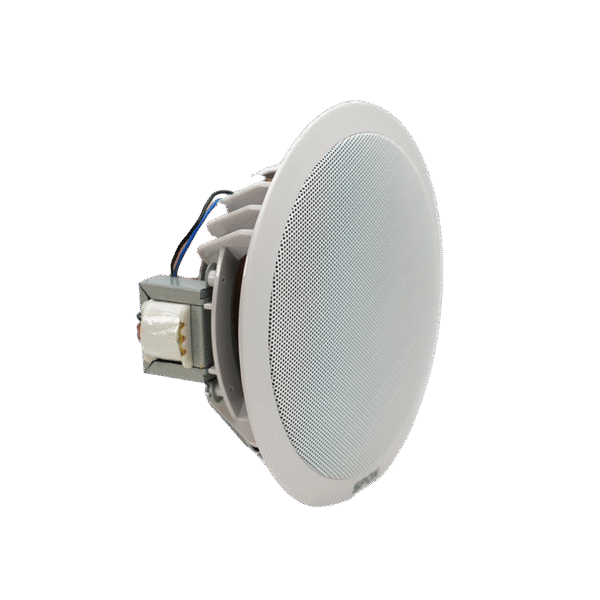

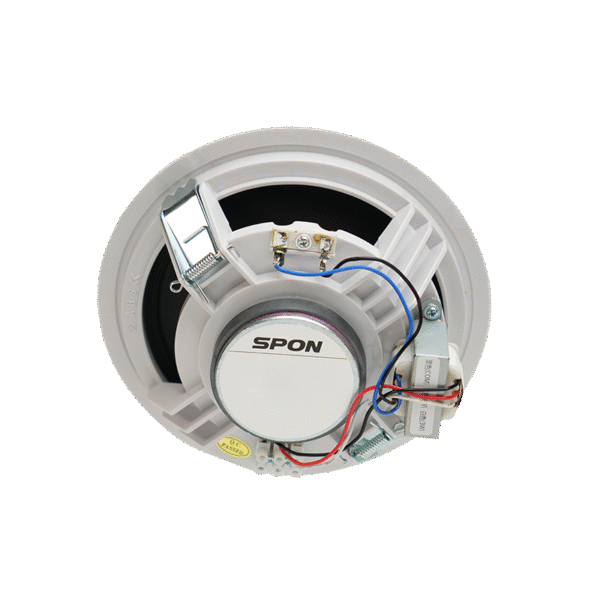

This speaker easily connects to a power amplifier’s 100V line output, a common choice for commercial audio systems. Users can select from multiple power options through the primary winding of the 100V transformer. The NAC-131 is ideal for diverse applications, including commercial audio setups and public address systems, offering reliable and high-quality sound reproduction with ease of installation.

Specifications


Parameter Specification
Speaker Unit 1×6″ Paper Cone Full Range Speaker
Rated Power Output 3W / 6W
Input Voltage 100V
Sensitivity 90dB±3dB
Frequency Response 80Hz–20KHz
Ceiling Cut-out Φ170mm
Dimensions Φ188×76mm

Table listing device parameters and their specifications.
