| Power Supply |
AC220V/50Hz |
| Protection |
Overcurrent, Short Circuit, Overheating Protection, AC Fuse |
| Rated Current |
5A |
| Surge Protection |
Power Supply: Common Mode 4KV, Differential Mode 2KV, Power Output: Common Mode 2KV |
| Output Power (RMS) |
360W / 720W |
| Audio Sampling, Bitrate |
48kHz, 24bit |
| Cooling |
Smart Temperature Control Fan Forced Cooling |
| Frequency Response |
130Hz-18kHz |
| Interface |

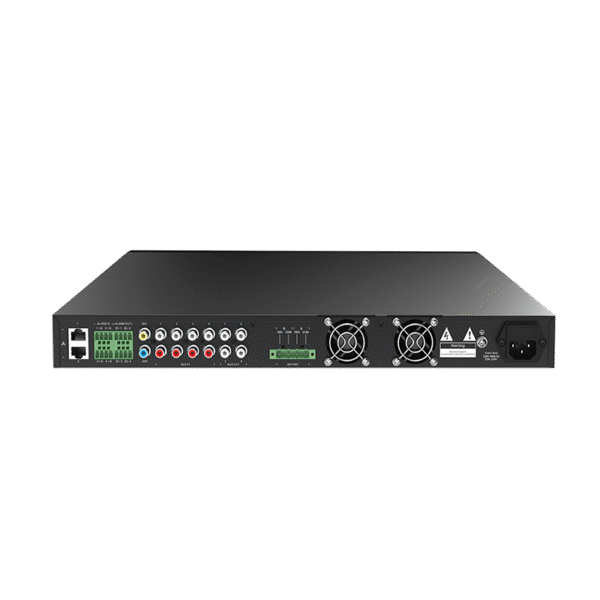

2 RJ45 Ports, 4 Alarm Inputs/Outputs, 4 Line Inputs, 1 Dynamic Microphone Input, 1 FM Antenna Connection, 1 AC220 Power Interface |
| Total Harmonic Distortion |
≤0.5% (1kHz, 1/2 Power Output) |
| Signal-to-Noise Ratio |
MIC: ≥85dB, AUX: ≥95dB |
| Network |
10/100Mbps Adaptive |
| Working Temperature, Humidity |
-10 °C~+50 °C, ≤90%RH (No Frost) |
