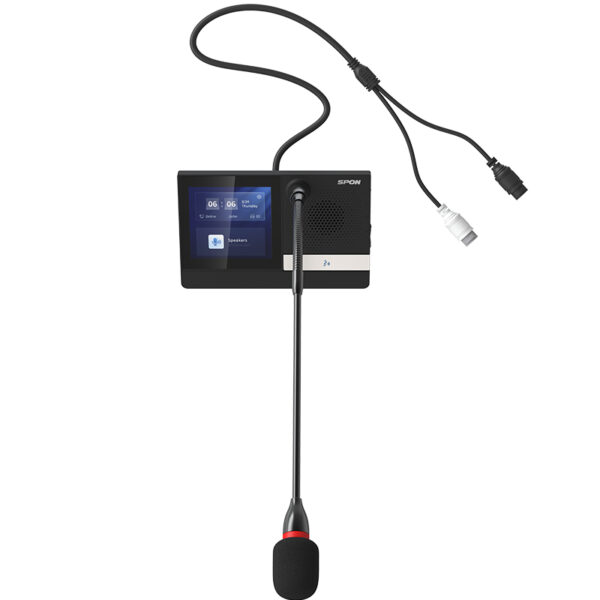

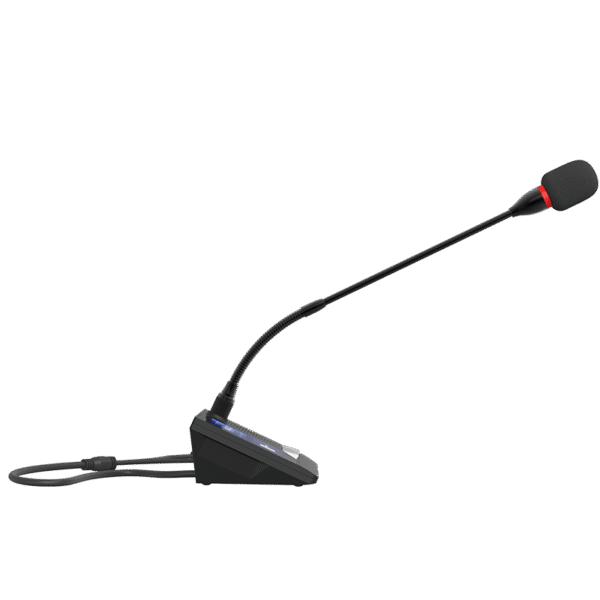

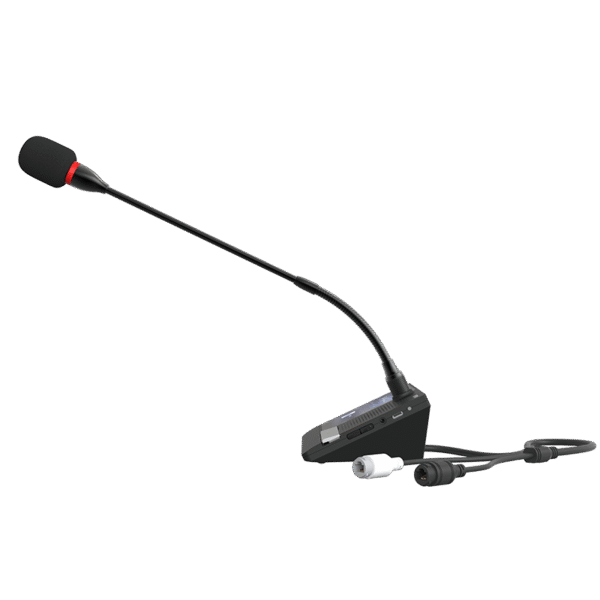

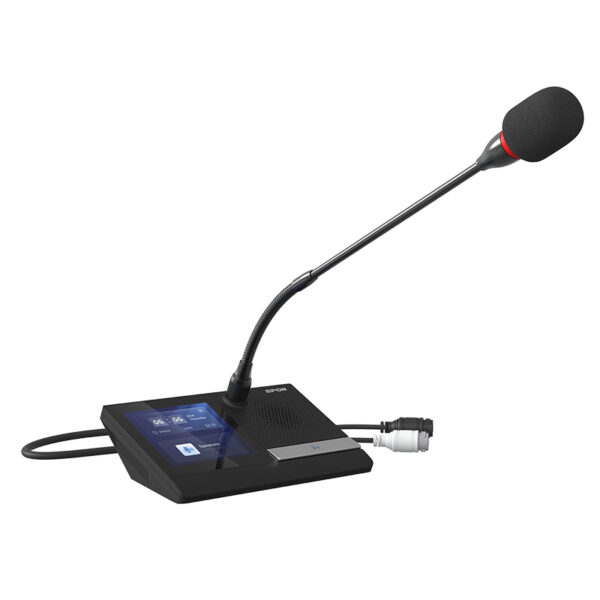

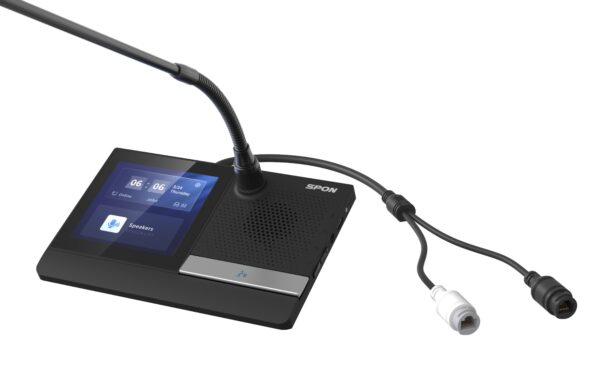

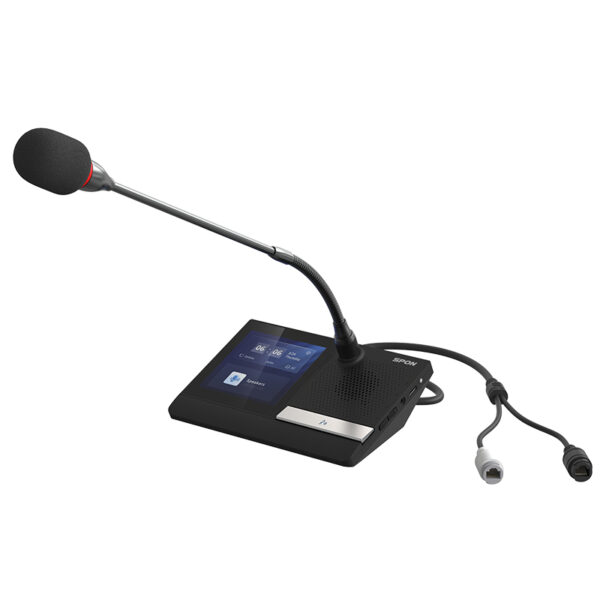

Conference Microphone Delegate Unit

LCM-6013DV-L

  • 4.3″ Touch Screen
  • Flexible Connectivity
  • Intuitive Touch Controls
  • Real-Time Voting Results
  • Digital Signal Transmission

Description

Conference Microphone Delegate Unit

It is equipped with a super-cardioid condenser mic, it ensures clear audio capture. With full digital signal transmission, it boasts strong anti-interference capabilities.​As a professional conference microphone, it allows independent setting of input gain, EQ, and automatic gain control via the conference host. It also offers essential functions like meeting check-ins and voting, enhancing participation and efficiency in conferences.

Specifications

Parameter Specification
Power Supply Powered By Conference Central Control Unit, DC24V
Power Consumption ≤3W
Audio Codec Formats MP3, PCM, ADPCM
Audio Sampling Rate and Bitrate 8kHz-48kHz, 16-bit, 8kbps-320kbps
Signal-to-Noise Ratio ≥ 83dB
Display 4-inch capacitive touch screen
Headphone Output 3.5mm stereo jack
Connectivity Cat6 network cable
Microphone Gooseneck Microphone
Interfaces RJ45 Ethernet Port x2 (for connecting to the next microphone unit)
Operating Temperature and Humidity 0°C~+45°C, ≤ 90% (non-condensing)
Microphone Base Dimensions 168×103×289(mm)
