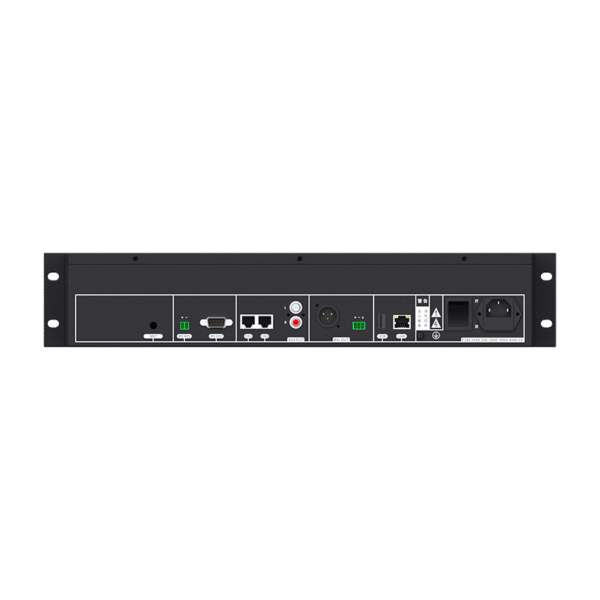

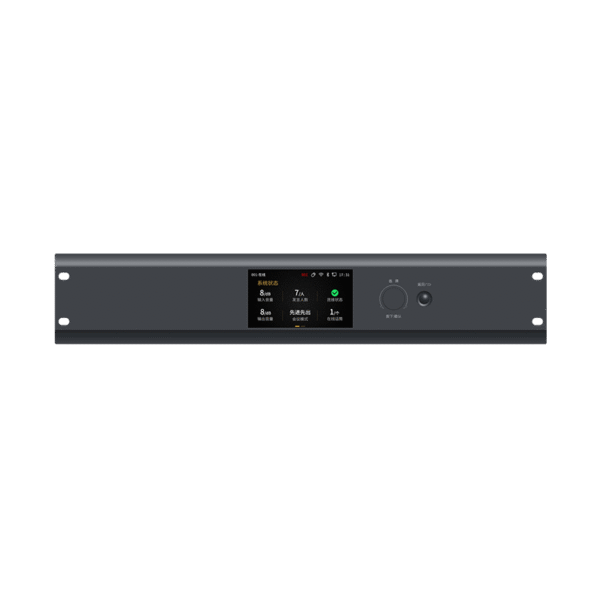

Digital Conference System Center Unit

LCM-6010

  • Camera Tracking
  • Meeting Recording
  • External Device Control
  • Wifi & Bluetooth Support
  • Wired & Wireless Integration

Description

Integrated Conference Functions

This master control unit combines wired and wireless conference discussion, video tracking, sign-in, voting, service calls, and matrix control in a single device, making it ideal for professional meeting.

High-Quality Digital Audio

Featuring 48KHz digital audio sampling with less than 10ms delay, it ensures lossless sound transmission. The digital transmission design keeps audio clear and stable regardless of cable length, preventing signal degradation over distance. This guarantees that every participant, whether near or far from the main unit, hears the same crystal-clear sound.

Flexible Microphone Management

The system supports up to 42 conference microphones when connected using dual loops and repeaters. Users can fine-tune each microphone’s volume, Automatic Gain Control (AGC), and Equalizer (EQ) settings individually, or apply uniform adjustments across the entire system. This flexibility allows precise audio balancing to meet different room sizes, speaker voices, and acoustic environments, ensuring optimal clarity in every meeting.

Specifications

Parameter Specification
Power Supply 100V~240V, 50Hz~60Hz 1A
Standby Power Consumption ≤10W
Audio Codec MP3/PCM/ADPCM
S/N > 83dB
Frequency Response 40Hz~18kHz
Installation Environment Dry Indoor Locations Only
Product Dimensions 483×229.5×89mm
