HD Surveillance Microphone

TS-806A

  • Automated Gain Control
  • Dynamic Noise Reduction
  • Web Page Configurations
  • Adaptable Audio Monitoring
  • Versatile Integrations with IPC, NV

Description

Wall Mount HD Surveillance CCTV Security Mic

This HD surveillance microphone features an ultra-thin aluminum alloy anti-vandal housing with a brushed and oxidized finish, offering strong durability and corrosion resistance. It uses a professional-grade pickup head for clear, natural sound. Built-in AEC echo cancellation and multi-stage adaptive noise reduction minimize background noise for high voice clarity. Designed to operate in extreme conditions from -35°C to 70°C, it’s ideal for both indoor and outdoor surveillance needs.

Specifications

Parameter Specification
Pick-up Area 10 square meters (adjustable)
Frequency Response 20Hz to 20KHz
Polar Pattern Omnidirectional
Signal Output Amplitude 2Vrms (@1KHz) / 5.6Vpp (@1KHz)
Protection Circuit Power polarity reversal protection, ESD protection

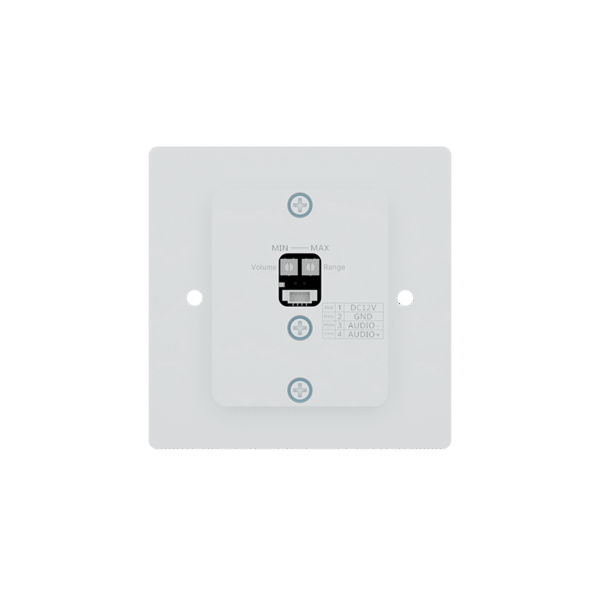

Connection Method Supports three-wire, four-wire audio isolation output
Signal Transmission Distance 3000 meters (use shielded cable in complex electromagnetic environments)
Power Voltage DC 12V
