IP Intercom Microphone

NAS-8526

  • Offline Intercom
  • DSP Noise Suppression
  • Numeric Keypad Dialing
  • Alarm Input and Output
  • Hands-Free Communication

Description

IP Intercom Microphone

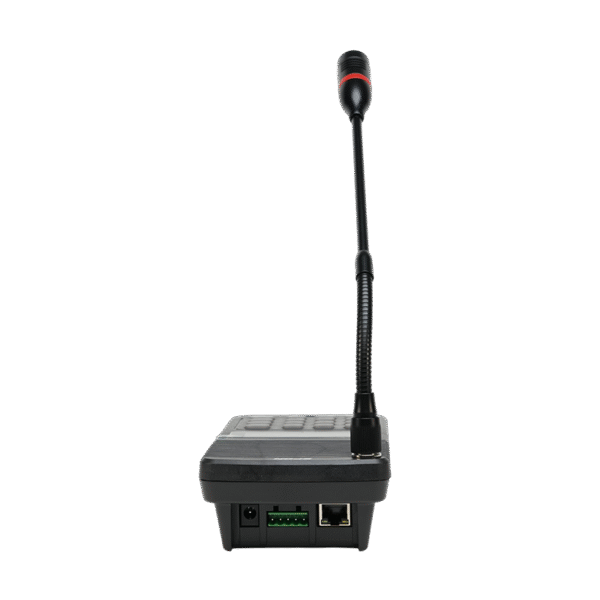

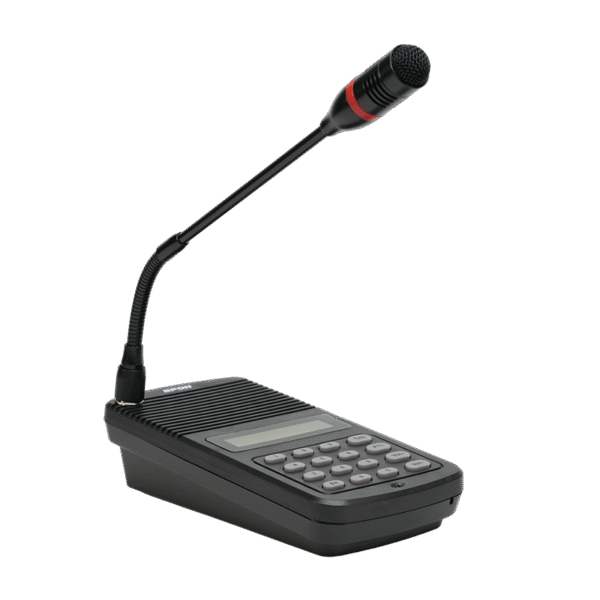

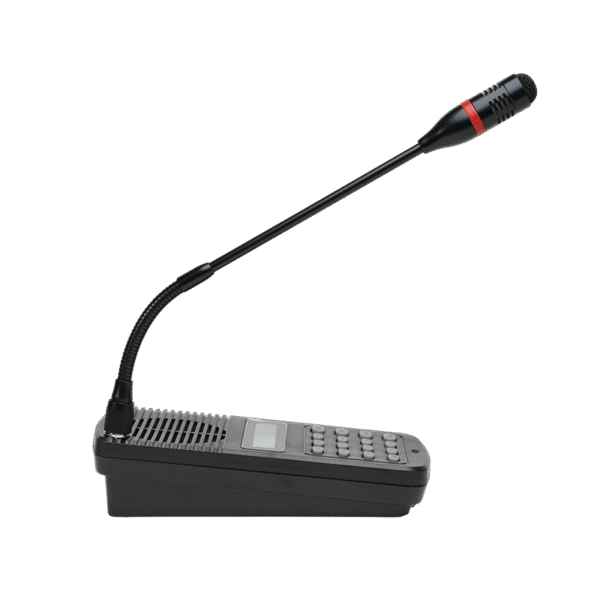

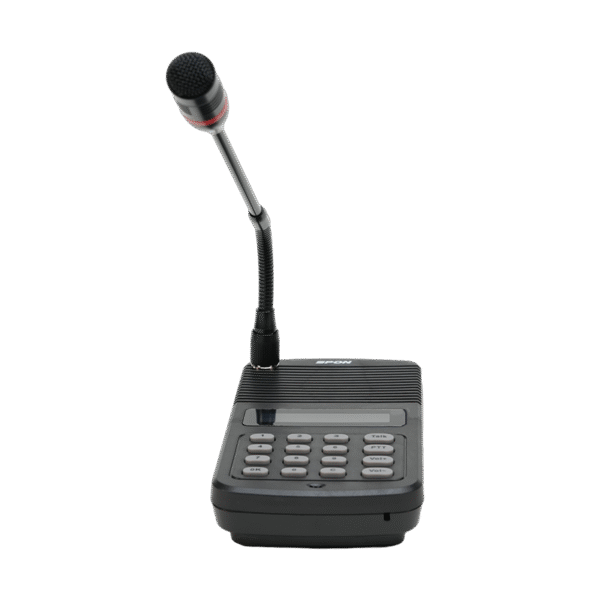

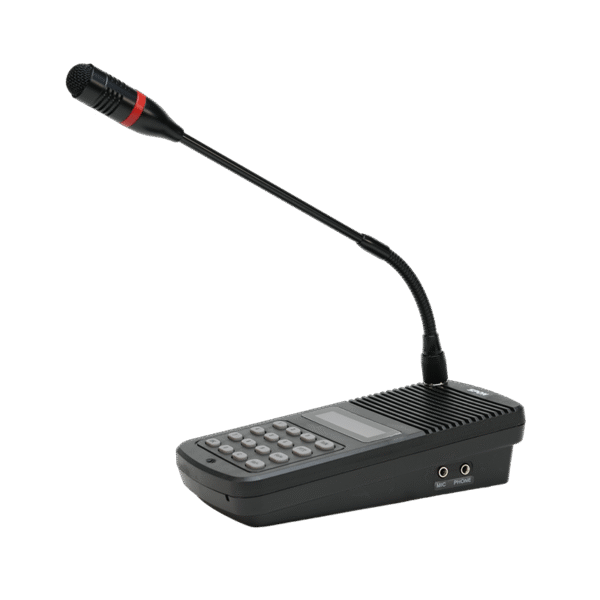

NAS-8526 features dual call buttons to connect with both local and remote monitoring rooms. Equipped with DSP noise suppression, it filters out background noise for clean audio. The unit includes a built-in speaker and gooseneck microphone, enabling hands-free two-way talking and receiving of public broadcasts. Ideal for use in control rooms, offices, schools, or any environment requiring reliable intercom functions.



Specifications

Parameter Specification
Power Supply DC 12V/1.5A
Power Consumption ≤5W
Network Communication Protocol TCP/IP, UDP, SIP, ARP, ICMP, IGMP
Audio Sampling Rate, Bit Rate 8kHz to 22.050kHz, 16bit, 16kbps to 352kbps
Display Screen LCD 16 Characters x 2 Lines
Display Language English
Interfaces 1 RJ45, 1 alarm input, 1 alarm output, 1 headphone output, 1 microphone input
Operating Temperature 0°C to 45°C
Humidity ≤90%RH (non-condensing)
