IP Intercom Telephone

NAS-8528

  • Offline Intercom
  • Zone Broadcasting
  • Numeric Keypad Dialing
  • Alarm Input and Output
  • Full-Duplex Communication

Description

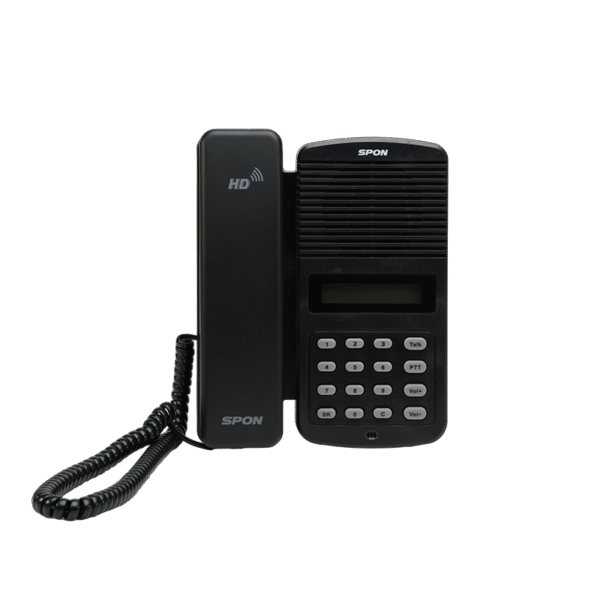

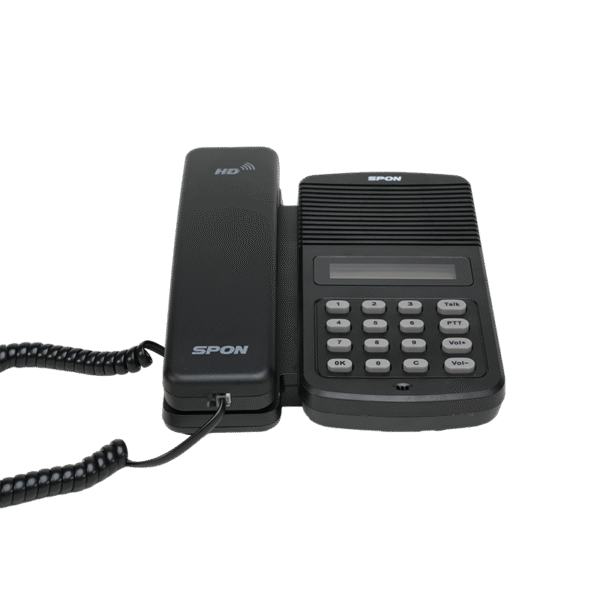

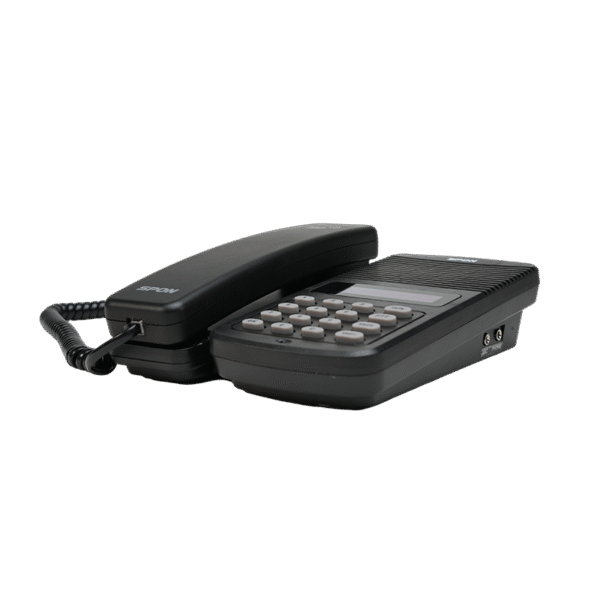

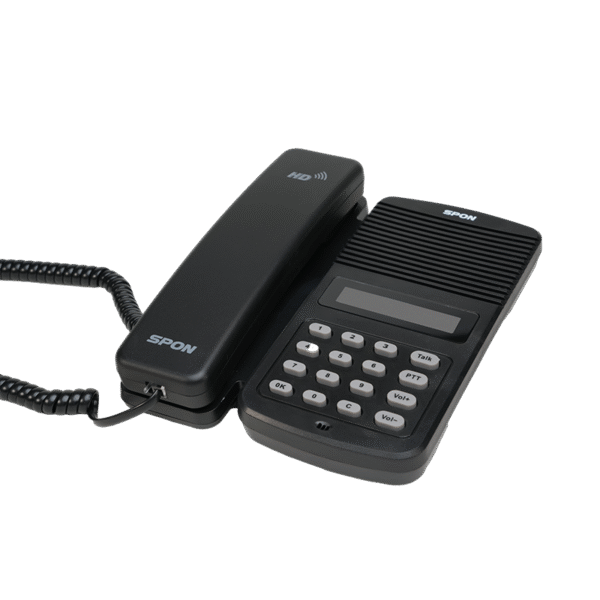

IP Intercom Telephone

This IP intercom telephone features a built-in 3W speaker and microphone for clear hands-free communication and audio broadcast. It supports full offline intercom operation—both initiating and receiving calls—without needing a server. The device also includes an audio output and mic input, making it easy to connect a headset for flexible use. Ideal for environments where simple, reliable voice communication is required.

Specifications


Parameter Specification
Power Supply DC 12V / 1.5A
Power Consumption ≤5W
Network Communication Protocol TCP/IP, UDP, SIP, ARP, ICMP, IGMP
Audio Sampling Rate, Bit Rate 8kHz to 22.050kHz, 16bit, 16kbps to 352kbps
Display Screen LCD 16 Characters × 2 Lines
Display Language English

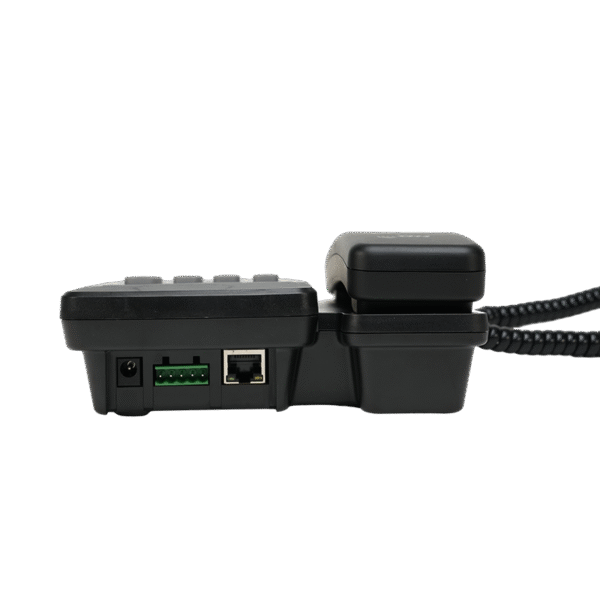

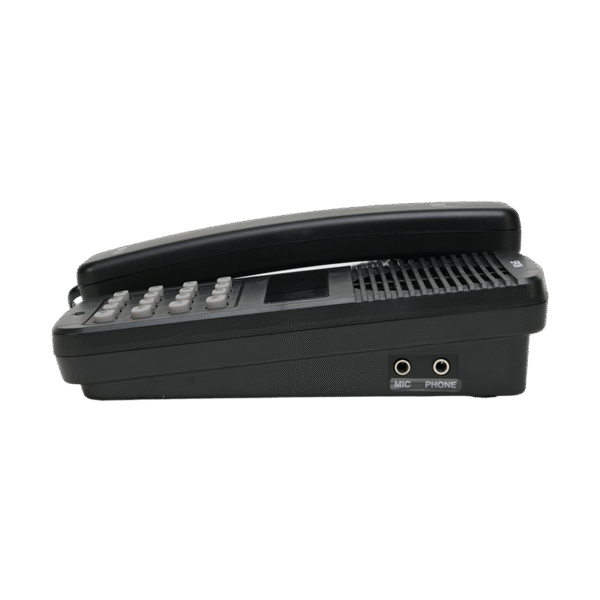

Interfaces 1 RJ45, 1 alarm input, 1 alarm output, 1 headphone output, 1 microphone input
Operating Temperature 0°C to 45°C
Humidity ≤90%RH (non-condensing)

Table listing device parameters and their specifications.
