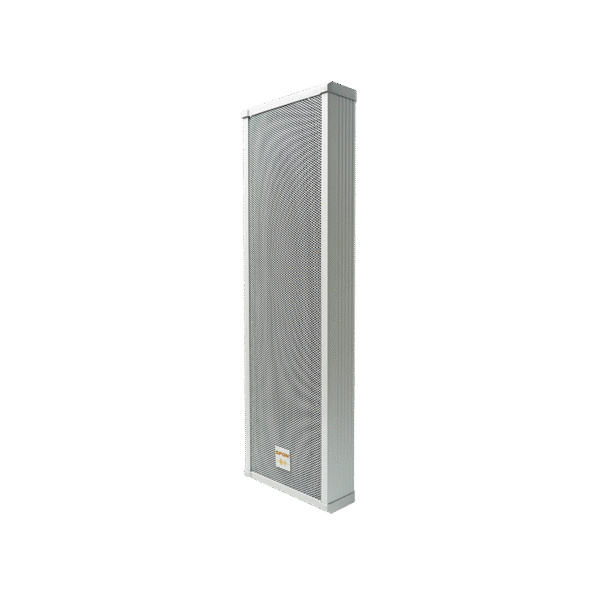

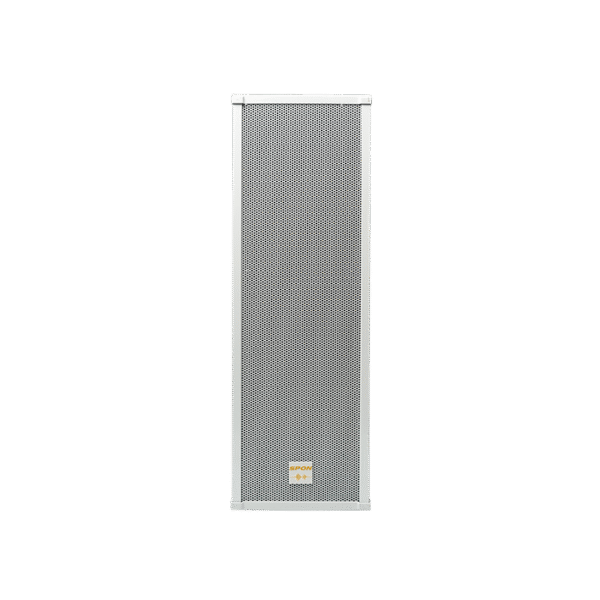

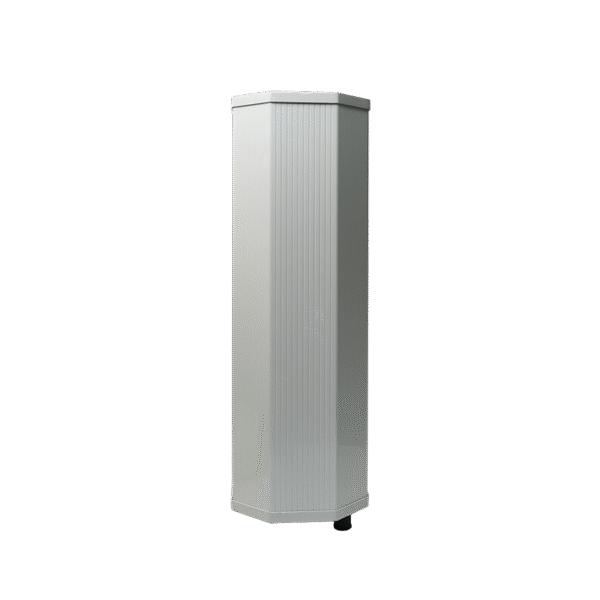

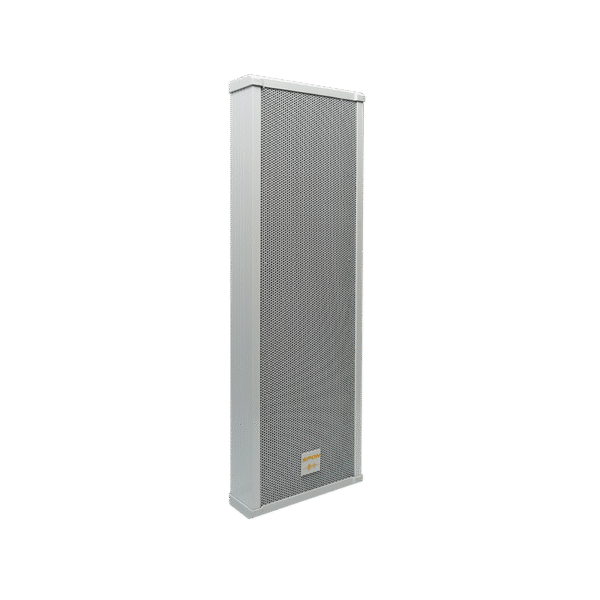

IP Outdoor Column Speaker

XC-9603A12

  • Loop Detection
  • All-in-One Design
  • Offline Broadcasting
  • Remote Terminal Control
  • Broad Network Compatibility

Description

The IP Outdoor Column Speaker offers a robust, all-in-one design, combining network audio decoding, digital amplification, and a column speaker. It features large-capacity flash memory with a clock chip for offline broadcasting of pre-loaded content.

Equipped with a remote loop detection function, the speaker allows for easy monitoring of its status for effortless maintenance. Additionally, it can automatically adjust the broadcast volume based on environmental noise levels when idle.

The speaker can be remotely controlled for volume adjustments using service software and supports web-based configuration for network parameters, audio settings, and task priorities, making it highly customizable. The RJ45 network interface allows easy integration with Ethernet networks, supporting cross-subnet and cross-router connectivity.

The IP Outdoor Column Speaker is perfect for outdoor broadcasts, offering seamless network integration, maintenance-free operation, and high-quality sound.

♦ All-in-One Design: Integrates network audio decoding, digital amplification, and column speaker.
♦ Offline Broadcasting: Built-in large-capacity flash and clock chip for offline content playback.
♦ Remote Monitoring: Built-in loop detection for easy status monitoring and maintenance.
♦ Automatic Volume Adjustment: Detects environmental noise and adjusts output volume accordingly.
♦ Remote Volume Control: Supports service software for volume adjustments.
♦ Web Configuration: Configurable network, audio settings, and task priorities via a web interface.
♦ Ethernet Connectivity: Standard RJ45 network interface, supports cross-subnet and cross-router integration.
♦ IPX5 Waterproof: Weather-resistant design for reliable outdoor use.
♦ Power & Performance: 120W output (100V constant voltage), operating on AC220V, ≤150W power consumption.
♦ Wide Temperature Range: Operates in temperatures from -20℃ to 55℃, with 10%-90% humidity (no condensation).

Specifications


Parameter Specification
Power Supply AC 220V 50Hz
Power Consumption ≤ 150W
Rated Power Output 120W
Network Protocol SIP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Codec MP2, MP3, PCM, ADPCM
S/N Ratio ≥80dB
Frequency Response 200Hz~18kHz

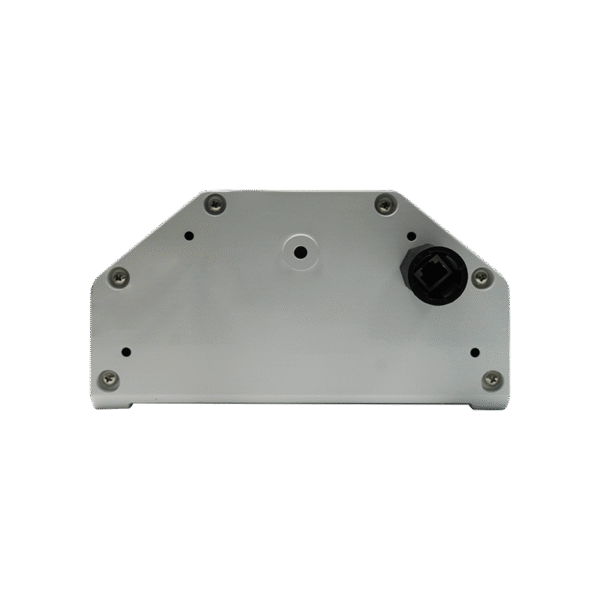

Interface 1×RJ45 Ethernet Port, 1×Power Input
IP Rating IPX5
Dimensions 1110×227×125mm
Net Weight 13.55 kg
Standard Accessories 1×Waterproof Connector, 2×Mounting Bracket, 1×Installation Manual
Optional Accessories Fixed Power Cord (US/EU/UK/AU)

Table listing device parameters and their specifications.
