IP Paging Amp Adapter

XC-9603

  • Circuit Fault Detection
  • Professional Recording
  • Adaptive Volume Control
  • User-Friendly Configuration

Description

Product Key Feature

XC-9603 is a state-of-the-art IP paging adapter integrated with an amplifier. Its innovative design brings modern technology and efficiency to traditional audio systems, providing both adaptability and convenience.
1. Modular Design:
The device boasts a sleek, compact design, ensuring ease of installation and saving space.
2. Audio I/O:
Comes with 1 channel for audio input and 1 for audio output, facilitating efficient audio routing.
3. Advanced Broadcast Features:
When paired with a server, it offers functionalities like a timed bell ringing, real-time broadcast capturing, and even supports offline broadcasting tasks.
4. Circuit Fault Detection:
The device can detect potential speaker malfunctions and display the status on the server software, ensuring quick identification and rectification.
5. Adaptive Volume Control:
Features an innovative ambient noise detection during idle times. Depending on the detected noise level, it can automatically adjust the broadcast volume, ensuring clarity.
6. User-Friendly Configuration:
Users can easily configure network parameters, audio settings, task priorities, and more via a web browser. This offers personalized setup options for various applications.
7. Easy Network Integration:
With a standard Ethernet port, it can be integrated into any network environment. It is compatible across different network segments and routers, ensuring seamless connectivity.

Specifications


Parameter Specification
Model No. XC-9603P06
Power Supply DC 24V/2.7A
Network Protocol SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Built-In Amplifier 60W/4Ω
S/N (Signal-to-Noise) Ratio ≥86dB
Audio Sampling & Bit Rate 8kHz–44.1kHz, 16bit, 8kbps–320kbps
THD (Total Harmonic Distortion) ≤0.3% at 1kHz
Frequency Response 50Hz–20kHz

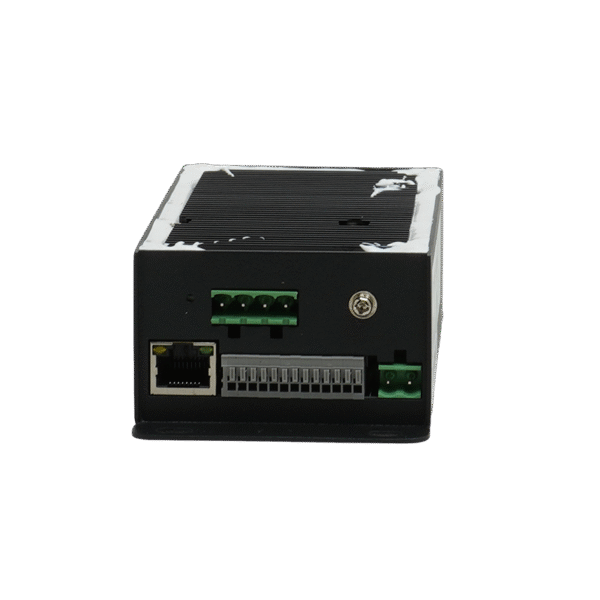

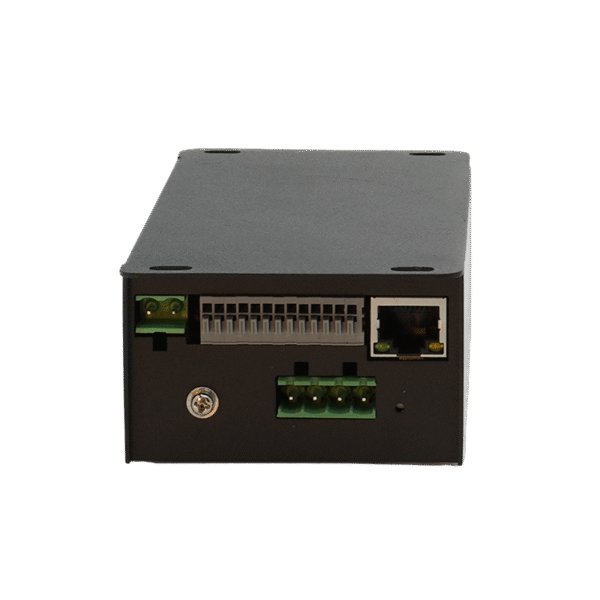

Interface 1×RJ45 Ethernet Port, 1×Line Input, 1×Line Output, 2×Relay Input, 1×Relay Output, 1×Status Indicator LED Output, 1×Mic Input, 2×Speaker Output, 1×Power Input
Dimensions 140×71×43mm
Weight 0.4kg
Standard Accessories 1×2-Pin Terminal Block Connector, 1×4-Pin Terminal Block Connector, 1×Installation Manual
Optional Accessories DC 24V/2.7A Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)

Table listing device parameters and their specifications.
