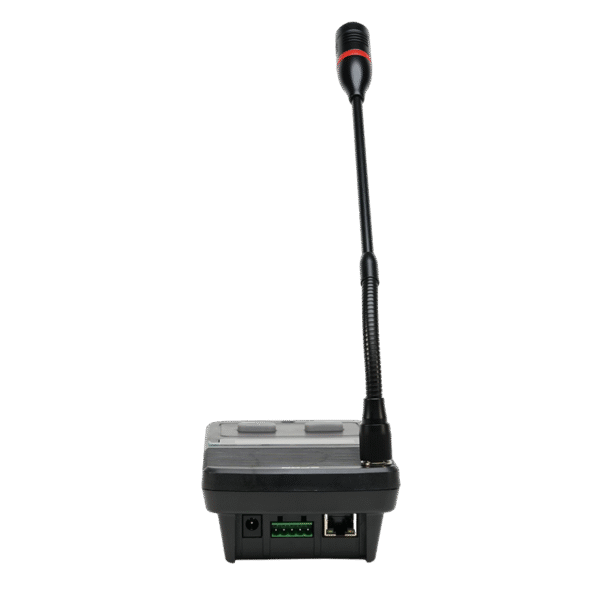

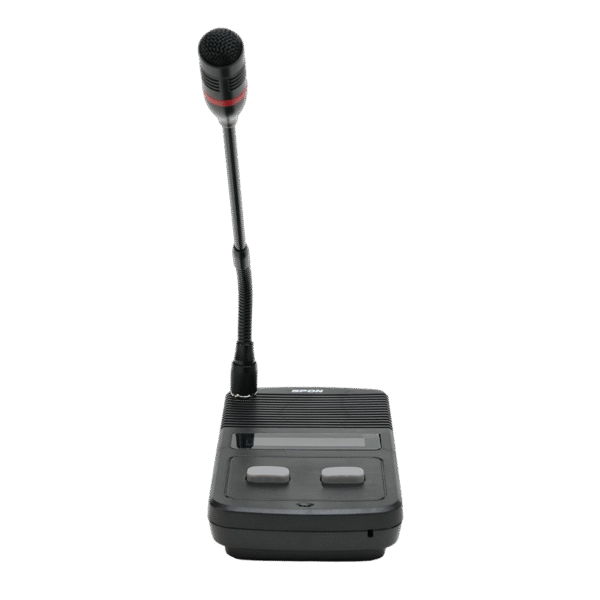

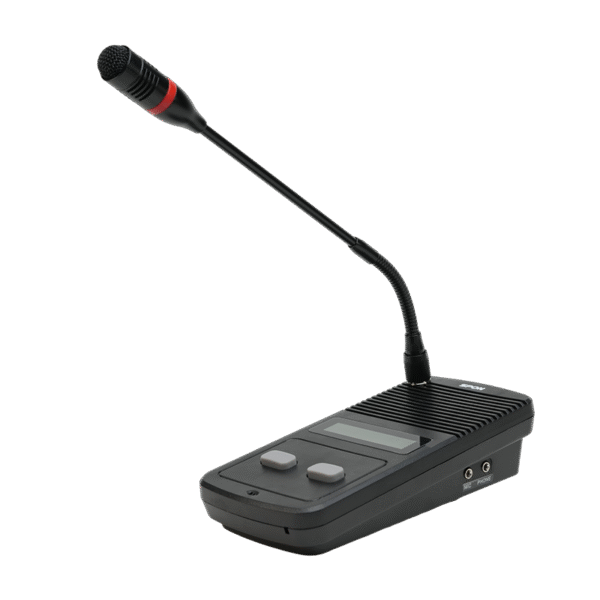

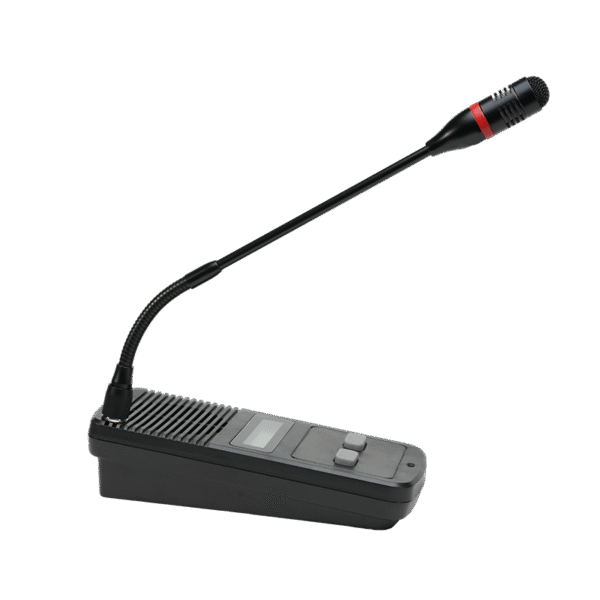

IP Paging Microphone

NAS-8525

  • Offline Intercom
  • Dual Call Buttons
  • DSP Noise Suppression
  • Alarm Input and Output
  • Increased Speaker Volume

Description

Desktop IP Paging Intercom Station with Gooseneck | SPON

The NAS-8525 IP Paging Microphone is designed for clear and efficient communication in modern intercom systems. It supports full-duplex intercom and includes dual call buttons to reach both local and remote monitoring rooms. Built with advanced DSP noise suppression, it effectively filters out background noise for better audio clarity. It also supports external alarm buttons and can control door locks or warning lights, making it ideal for schools, buildings, factories, or security centers.



Specifications

Parameter Specification
Power Supply DC 12V/1.5A
Power Consumption ≤5W
Network Communication Protocol TCP/IP, UDP, SIP, ARP, ICMP, IGMP
Audio Sampling Rate, Bit Rate 8kHz to 22.050kHz, 16bit, 16kbps to 352kbps
Display Screen LCD 16 Characters x 2 Lines
Display Language English
Interfaces 1 RJ45, 1 alarm input, 1 alarm output, 1 headphone output, 1 microphone input
Operating Temperature 0°C to 45°C
Humidity ≤90%RH (non-condensing)
