IP Video Intercom Panel

NAS-8523DV

  • SPON® Software Integration
  • Clear Two-Way Communication

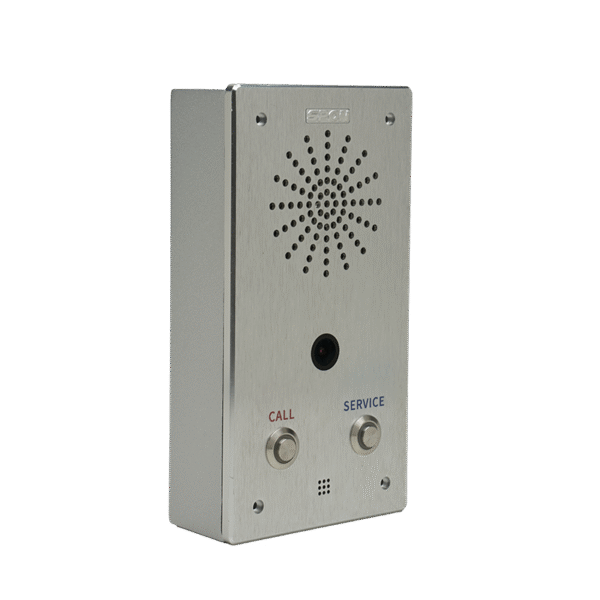

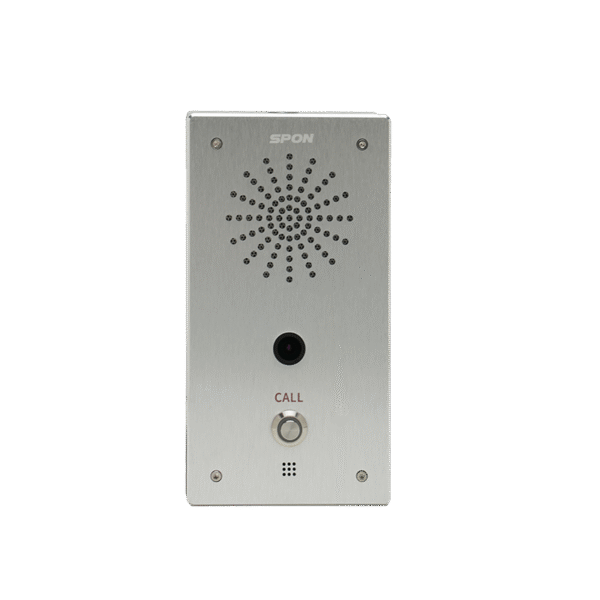

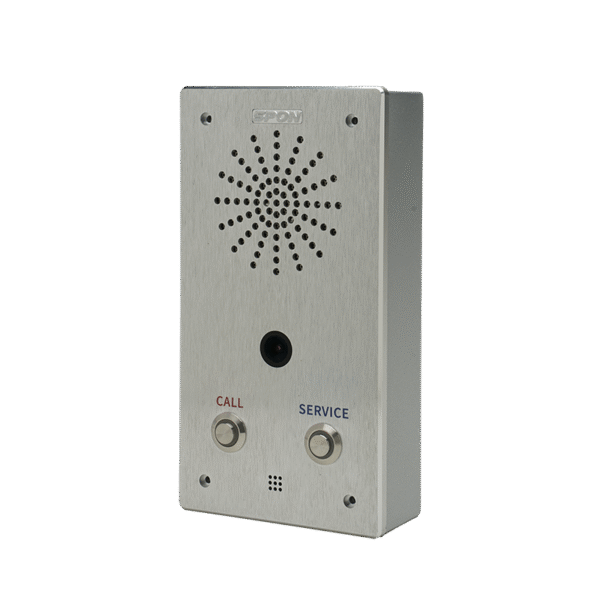

  • Single/Dual Button Versions
  • Reliable Offline Communication
  • SIP VoIP Compatibility

Description

IP Video Intercom Station – One Touch, Full Communication

The IP Video Intercom Station features a simple one-button design for quick and easy one-touch calling. It supports full-duplex two-way communication, allowing clear and smooth conversations in real time. Built with a high-definition 1080P camera, it delivers sharp video for secure and reliable visual verification. With PoE support, both power and data run through a single cable, making installation fast and hassle-free. Ideal for building entrances, offices, campuses, and other access control scenarios.



Specifications

Parameter Specifications
Model No. NAS-8523CV/NAS-8523DV
Power Supply DC 24V/1A or PoE (IEEE802.3af)
Power Consumption ≤3W
Network Protocol SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Sampling Rate 22.05kHz, 16bit
Bit Rate 8Kbps-320Kbps
Video Coding GVA/720/1080P
S/N (Signal-to-Noise) Ratio ≥82dB
Frequency Response 50Hz-20KHz
Interface 1×RJ45 Ethernet Port, 1×Relay Input, 1×Relay Output, 1×Line Input, 1×Line Output, 1×Controlled Power Output, 1×Power Input
