The Milesight SE0201 KNx KSA is a professional Milesight surveillance solution designed for Saudi Arabia’s demanding security environments.

What is Milesight OpenVision Server

Milesight Openvision Server is a pre-configured, plug-and-play surveillance platform that comes with Nx VMS Server embedded. Designed for fast and hassle-free deployment, it combines powerful hardware and intelligent video management software in one compact system.

embedded server

Pre-installed VMS for Instant Setup

Linux-based & Stable Operation

Empower Camera Analytics on Nx with
Built-in Plugin

Secured Data with N+M Failover &
Backup Storage

Cost-Effective & Streamlined Deployment

Central Management of Distributed Security

Key Specifications

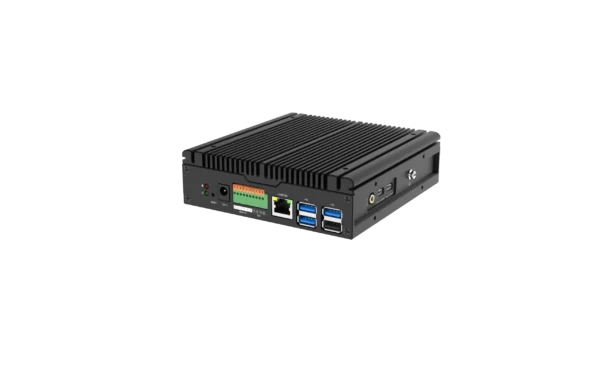

OpenVision Server Mini

Up to 8 Channel

Dual M.2 SSD Slots, Up to 8TB Storage

-20°C to 60°C Operating Range

Compact Size and Low-Power Consumption

Edge-Ready for Outdoor Environments

Download Datasheet

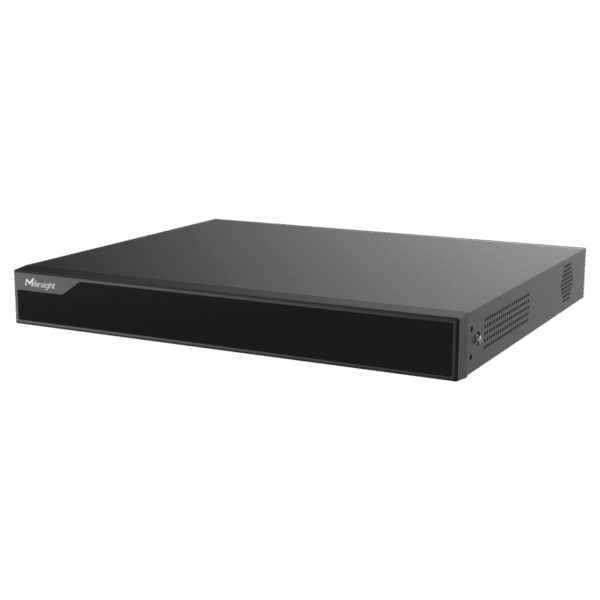

OpenVision Server

Up to 16 Channel

Dual 3.5″ SATA Slots, Up to 40TB Storage

Linux Ubuntu OS

Pre-Installed with Nx Client

Stable Performance for Medium-Sized Projects

Download Datasheet

Download How-to Guide

Seamless Compatibility: Milesight & Network Optix

Feature-rich & Advanced Video Management

Download Brochure

Available from Seven Sectors — official Milesight distributor for Saudi Arabia. Browse all Milesight security products in KSA or visit Milesight.

Specifications

System
Main Processor	Intel Celeron Series, 4C 4T @2.00 GHz
Memory	2*4GB DDR4
Network Interface	2*1000Mbps RJ-45 Ports
Operating System	Linux Ubuntu 22.04.5 LTS Desktop
GPU Options	Integrated GPU
Auto Power On	Support
Record
Video Compression	H.265, H.264, MJPEG
Recording Bandwidth	Max. 144Mbps
Resolution	12MP ~ CIF
Mode	Continuous, Motion, Events, Objects, Dual Stream
Edge Analytics	Analytics Events: CCTV (Intrusion Detection/ Region Entrance/ Region Exit/ Advanced Motion Detection/ Line Crossing/ Loitering/ Object Left/Object Removed/ Object Counting/ Regional People Counting); LPR (Attribute Event/ Black List/ White List/ Visitor Event/ Speed Monitoring/ No Plates/ Reverse Driving); Object Detected Events (person and vehicle with attribute/ face) Smart Search: CCTV: Person (Hat, Top Clothing Color, Bottom Clothing Color), Vehicle (Vehicle Type), Face (Gender, Age, Mask, Cap, Glasses); LPR: Vehicle (Color, Vehicle Type, Brand, Speed, Direction), License Plate (Number, Color, Country, Plate Type)
Event Action	Bookmark, Camera Output, Camera Recording, Do HTTP(S) Request, Execute PTZ Preset, Play Sound, etc.
Storage
Supported HDD	Up to 20TB per disk
HDD Slot	SATA*2
Protocol
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF
Audio
Compression	G.711/AAC/G.722/G.726
Audio Communication	2-way
Interface
Ethernet	2*1000Mbps Ethernet Port
Display	2HDMI Port, 1DP Port Note: Display ports are for system setup and diagnostics only. They do not support video playback or desktop display.
Audio	1BNC In, 1BNC Out
USB Interface	Rear panel: 2USB 2.0, 2USB 3.0, 1*USB-C Port
Power Supply	AC 100-240V, 50-60Hz, DC 12V
General
Consumption	≤30W (without HDD)
Working Temperature	0°C to 35°C (32°F to 95°F)
Working Humidity	10% to 90% RH (no freezing and no condensation)
Dimension	380mm(W) X 317.6mm(D) X 51.8mm(H)
Weight	2.2 Kg
Warranty	3 Years
