Multi-Zone Network Mixer Amplifier

NBS-2301P13

  • Infrared Remote
  • Offline Broadcasting
  • 4.3″ TFT Color Screen
  • Built-in Speaker & Mic
  • 3 Alarm Inputs, 2 Outputs

Description

Network Multizone Amplifier – Smart Audio for Every Zone

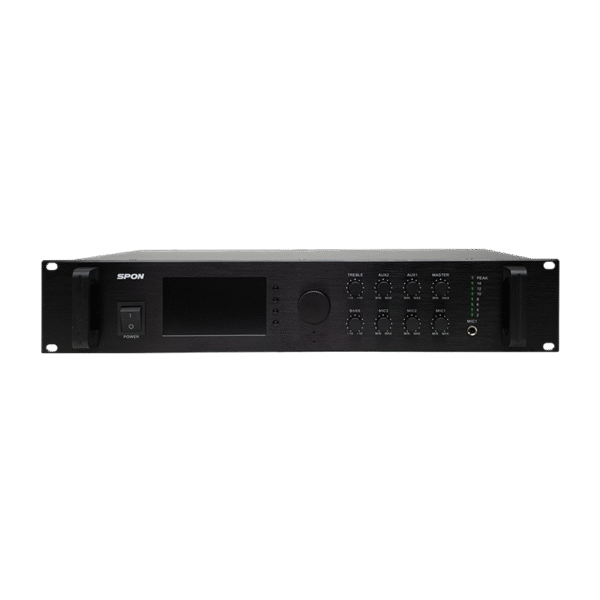

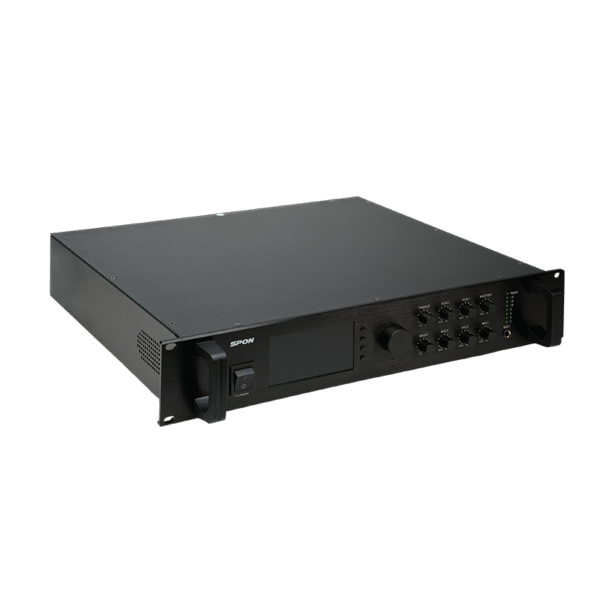

The Network Multizone Amplifier features a sleek black design with a 4.3-inch LCD screen and built-in 130W amplifier. It supports SD card playback and offers multiple audio input options, including 1 dynamic mic input, 2 line/mic inputs, 2 AUX inputs, and 1 network audio input. Each input channel has independent volume control for precise audio management.

Designed for flexibility, it works perfectly in wide-area distributed networks and can also function as a standalone audio system. Ideal for schools, commercial buildings, and industrial sites, it supports both centralized and independent control, making it a powerful and user-friendly solution for multizone public address needs.

Specifications


Parameter Specification
Power Supply AC 100V~220V 50/60Hz
Power Consumption ≤170W / ≤320W / ≤420W / ≤650W / ≤800W
Rated Power Output 130W / 260W / 360W / 550W / 700W
Network Protocol TCP/IP, UDP, ARP, ICMP, IGMP, HTTP
Audio Codec MP2, MP3, PCM, ADPCM
S/N (Signal-to-Noise) Ratio Mic Input 1: ≥66dB; Mic Input 2/3: ≥80dB; Line Input 1/2: ≥75dB
THD (Total Harmonic Distortion) ≤0.5% at 1kHz, 1/2 rated output
Frequency Response 130–18kHz
Speaker Output 100V (Constant-Voltage) / 8-16Ω (Low-Impedance)

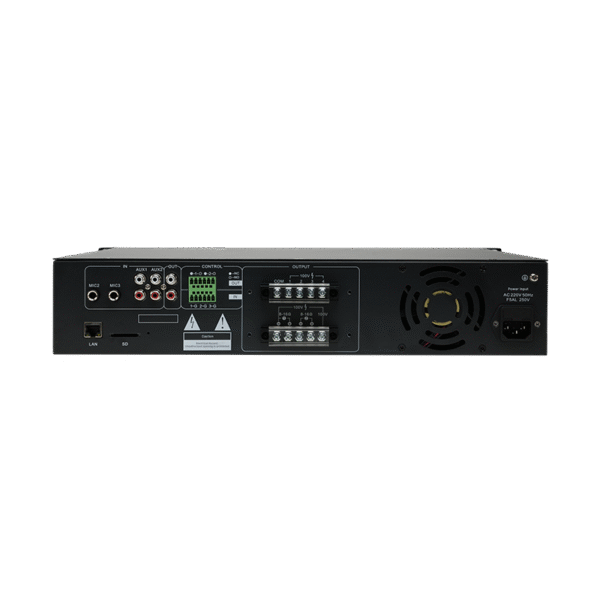

Interface 1×RJ45 Ethernet Port, 1×SD Card Slot, 3×Mic Input (1/4” TS Jack), 2×Line Input (RCA Jack),
1×Line Output (RCA Jack), 3×Relay Input, 2×Relay Output, 1×4-Zone Speaker Output (100V),
1×4-Zone Speaker Output (8-16Ω), 1×Speaker Output (100V), 2×Speaker Output (8-16Ω),
1×Speaker Output (100V), 1×Power Input
Dimensions 483×430×88mm
Net Weight 7.5kg
Standard Accessories 2×6-Pin Terminal Block Connector, 1×Installation Manual
Optional Accessories IEC C13 Power Cord (US/EU/UK/AU)

Table listing device parameters and their specifications.
