| Parameter | Specification |
|---|---|
| Model No. | NAS-8505B06 / NAS-8505B12 |
| Power Supply | AC 220V 50/60Hz |
| Power Consumption | ≤75W, ≤150W |
| Rated Power Output | 60W, 120W |
| Network Protocol | HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Audio Codec | MP2, MP3, PCM, ADPCM |
| S/N (Signal-to-Noise) Ratio | ≥90dB |
| THD (Total Harmonic Distortion) | ≤0.3% at 1kHz |
| Frequency Response | 20Hz~16kHz |
| Speaker Output | 100V (Constant-Voltage) |

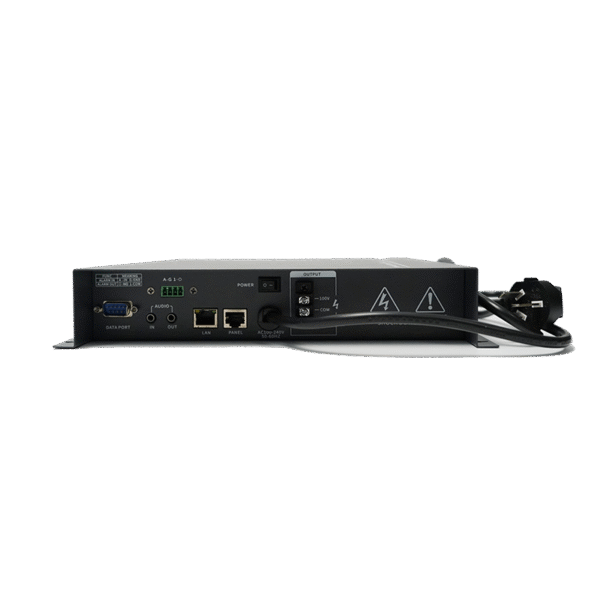

| Interface | 1×RJ45 Ethernet Port, 1×Line Input (1/8″ TS Jack), 1×Line Output (1/8″ TS Jack), 1×Relay Input, 2×Relay Output, 2×Speaker Output (100V), 1×Power Input |
| Dimensions | 337×283.5×50.5mm |
| Net Weight | 4.3kg, 5.1kg |
| Standard Accessories | 1×4-Pin Terminal Block Connector, 4×Rubber Foot, 1×Installation Manual |
| Optional Accessories | Fixed Power Cord (US/EU/UK/AU) |
Table listing device parameters and their specifications.
