Description

Network 8 Ohm Wall Mount Amplifier

It is a premium Wall Mount Amplifier and Network Amplifier, Equipped with a high-speed DSP industrial-grade chip, it ensures quick startup and simplified operation, saving time and effort in use.This Wall Amplifier, with constant impedance, can work seamlessly with VolP phone systems, enabling real-time voice announcements and providing clear audio communication. It’s designed to deliver stable performance, making it suitable for various scenarios where efficient and clear audio transmission is needed, enhancing overall communication effectiveness.

Specifications


Parameter	Specification
Model No.	NAS-8505L02, NAS-8505L06
Power Supply	DC 24V/1A, DC 24V/2.7A
Power Consumption	≤24W, ≤64W
Rated Power Output	2×10W, 2×30W
Network Protocol	HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Codec	MP2, MP3, PCM, ADPCM
S/N (Signal-to-Noise) Ratio	≥80dB
THD (Total Harmonic Distortion)	≤0.3% at 1kHz
Frequency Response	60Hz–20kHz
Speaker Output	8Ω (Low-Impedance)

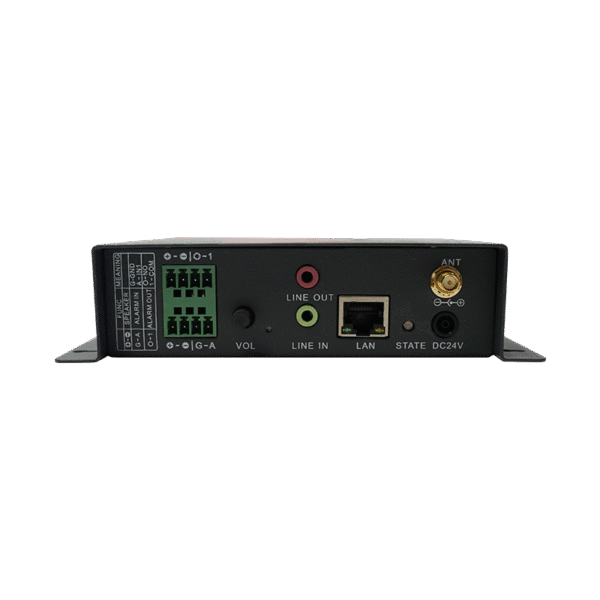

Interface	1×RJ45 Ethernet Port, 1×Line Input (1/8″ TS Jack), 1×Line Output (1/8″ TS Jack), 1×Relay Input, 1×Relay Output, 2×Speaker Output (8Ω), 1×Power Input
Dimensions	156.5×132×36mm
Net Weight	0.5kg, 0.6kg
Standard Accessories	2×4-Pin Terminal Block Connector, 1×Installation Manual
Optional Accessories	DC 24V/1A Power Adapter (US/EU/UK/AU), DC 24V/2.7A Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)

Table listing device parameters and their specifications.
