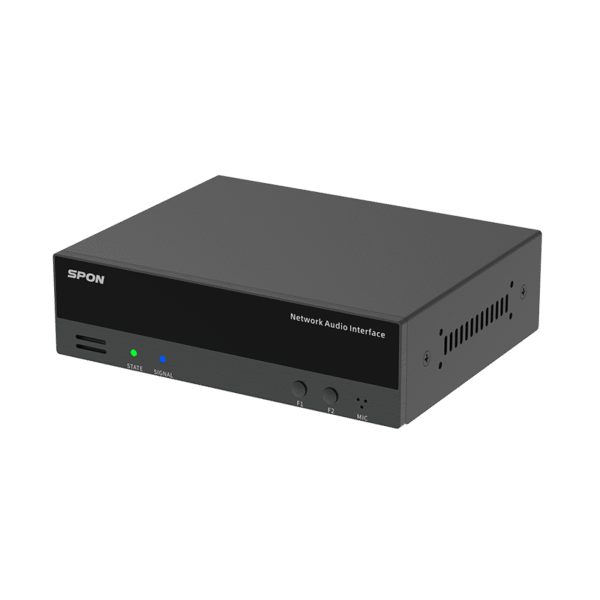

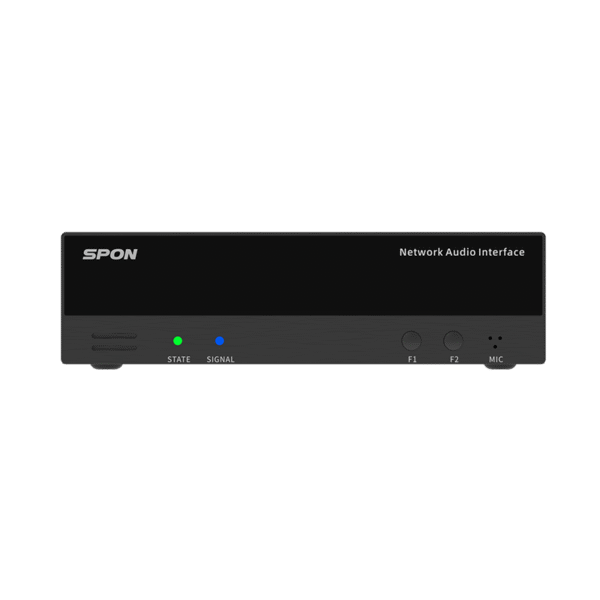

Network Audio Interface

GEN-3001A03

  • High Power Output
  • Simplified Cabling with PoE

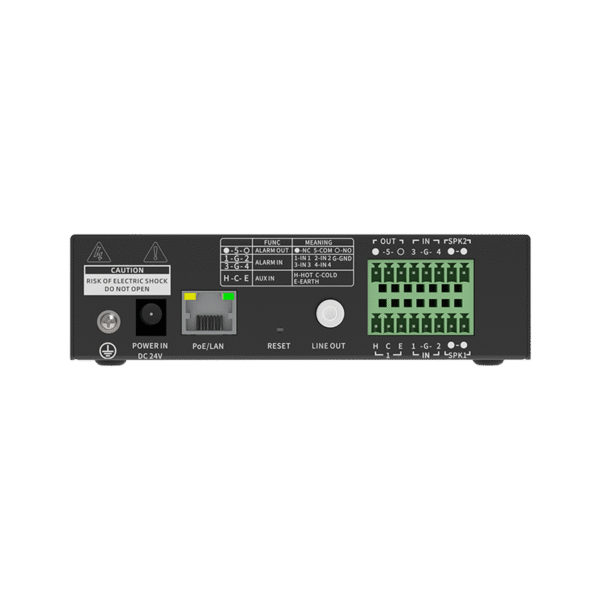

  • Versatile I/O Ports
  • 2 Customizable Keys
  • Audio Input/Output
  • Flexible Installation Options

Description

PoE Audio Interface for Network Audio Upgrades

The Ethernet Audio Interface is a compact, intelligent terminal that upgrades any passive speaker or amplifier into a network-enabled device. Powered by PoE or DC, it supports SIP/VMS calls, handles up to 20 multicast streams, and offers audio storage with scheduled playback. With a built-in 2×30W amplifier for 8Ω speakers, it allows existing analog PA systems to easily access advanced IP audio features—without the need for equipment replacement.

Specifications

Specifications
Parameter Specification
Power source DC24V, PoE (IEEE802.3af/at)
Power cons ≤ 3W
Network protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency response 100 ~ 20 KHz
Power output 2×30W (Use DC 24V), 2×7W (Use PoE/PoE+)
Network I/F 100BASE-TX, RJ45 Connector
Audio input x1, Line/Mic input (Balanced, Switchable)
Audio output x1 (RCA Connector), 0dB
Control input x4
Control output x1, Relay output/DC12V output switchable
Operating temperature -10°C ~ +50°C
Housing Material Sheet Metal
