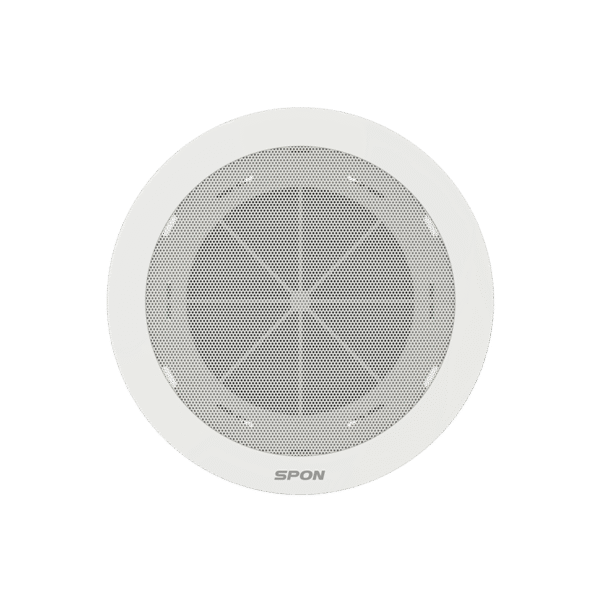

Network Ceiling Speaker

GEN-6213A01

  • Integrated Speaker
  • Simplified Wiring, PoE Power Supply
  • Integrated Speaker
  • Scalable & Easy to Integrate
  • User-Friendly
  • Concealed installation

Description

Ceiling Bracket Speaker | PoE Ceiling Speaker for Retail

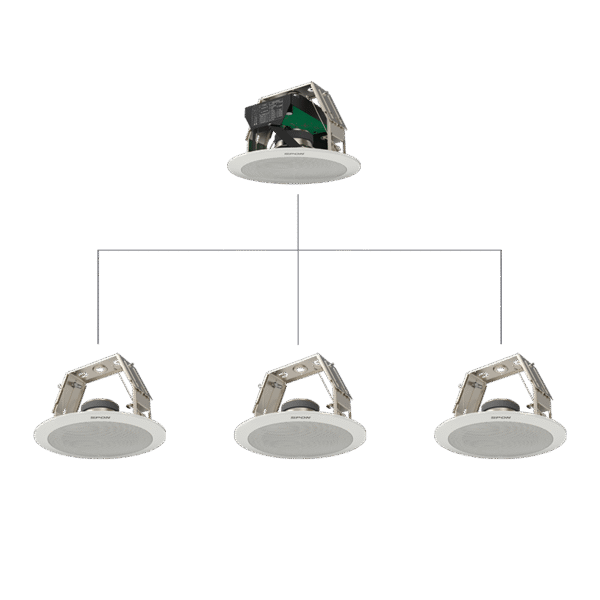

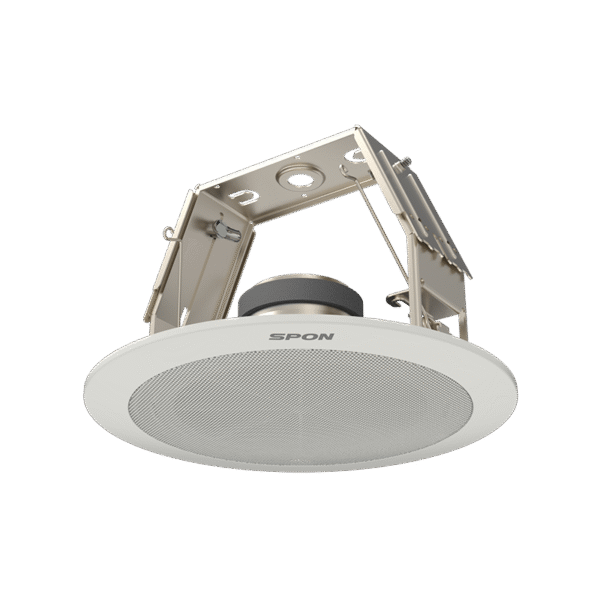

This Ceiling Bracket Speaker is designed for cost-effective audio coverage in small retail stores, hotel hallways and meeting rooms. Ideal for background music playback and daily voice broadcasting, it also supports up to 3 additional constant impedance speakers for broader sound coverage. With Bluetooth connectivity for music streaming, scheduled playback, and optional intercom panel integration, it offers flexible and smart audio solutions for various environments. Its unique bracket design allows for easy installation and maintenance.

Specifications

Specifications
Parameter Specification
Power source DC24V, PoE (IEEE802.3af/at)
Power cons ≤ 3W
Network protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency response 100 ~ 16 kHz
Power output 4×3W (Use DC 24V), 4×3W (Use PoE/PoE+)
Network I/F 100BASE-TX, RJ45 Connector

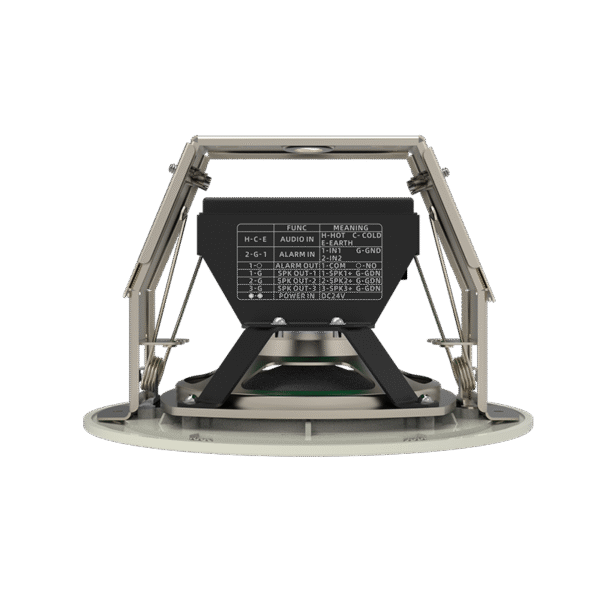

Audio input x1, Line/Mic input (Balanced, Switchable)
Control input x2
Control output x1
Operating temperature -10°C ~ +50°C
Housing Material Sheet Metal, ABS
