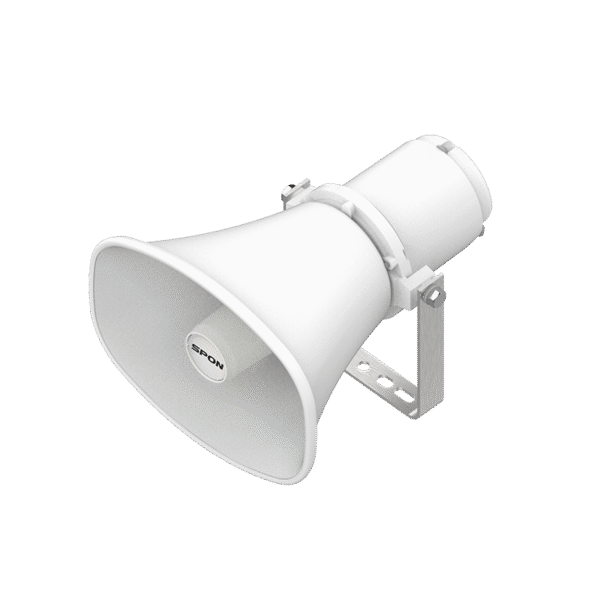

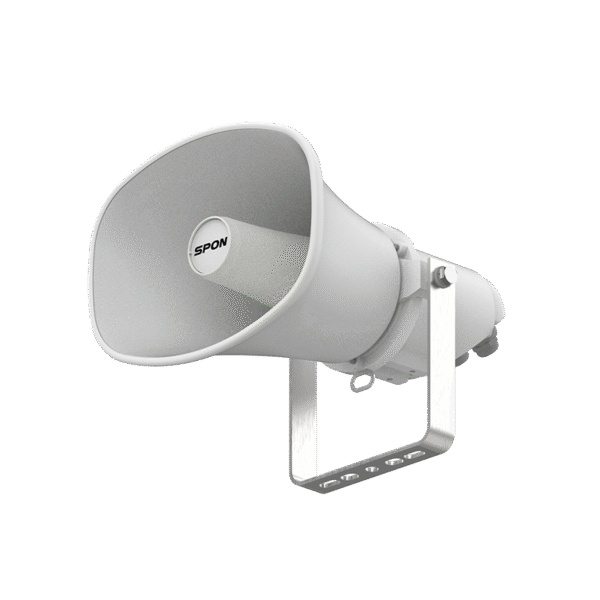

Network Horn Speaker

GEN-6392A01

  • Integrated Speaker
  • PoE for Simple Setup

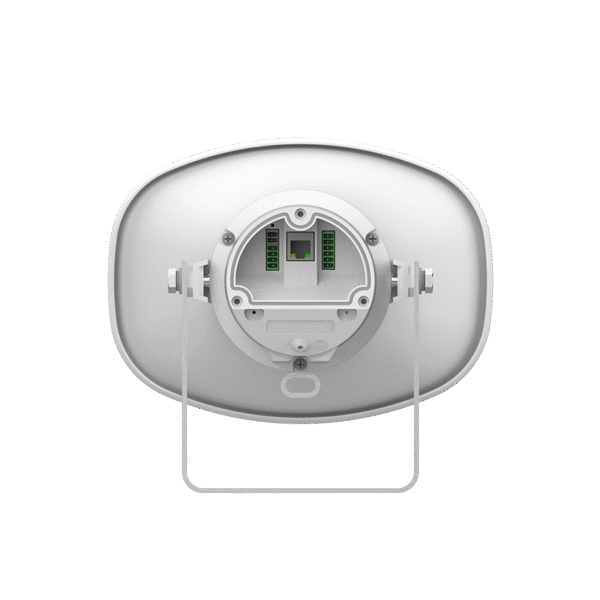

  • Versatile I/O Interfaces
  • Clear Sound, Low Power
  • Two-way communication
  • Rugged & Weatherproof

Description

Horn loudspeaker with Two-Way Intercom

This IP paging horn speaker delivers 121dB SPL with 10W low-power, high-quality audio. it features an IP66-rated waterproof, dustproof, and salt-resistant design. Equipped with a built-in mic for two-way intercom, 80MB storage for local playback, and alarm light control.A smart, easily integrated network horn speaker designed for seamless camera linkage—automatically issuing warnings to deter suspicious behavior when threats are detected. With remote control capabilities, it helps prevent incidents efficiently. Built tough and weather-resistant, it’s perfect for outdoor use in all kinds of climates.

Specifications

Specifications
Parameter Specification
Power source DC24V, PoE (IEEE802.3af/at)
Power cons ≤ 3W
Network protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency response 280 ~ 12.5 kHz
Power Output 15W (use DC 24V), 15W (use PoE/PoE+)
Data I/F 100BASE-TX, RJ45 connector
Audio input x1, Line/Mic input (Balanced, Switchable)
Control input x2
Control output x1
Operating temperature -40°C ~ +70°C
Housing Material Aluminum alloy
Dimensions 222×162×281 mm
Weight 1600 g
