Specifications
| Product |
Specifications |
| Model No. |
XC-950BP13 / XC-950BP26 / XC-950BP36 / XC-950BP50 |
| Power Supply |
AC 100V–240V 50/60Hz |
| Power Consumption |
≤160W / ≤310W / ≤420W / ≤580W |
| Rated Power Output |
130W / 260W / 360W / 500W |
| Network Protocol |
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| S/N (Signal-to-Noise) Ratio |
84dB |
| Audio Encoding |
MP3 / PCM / ADPCM / G711u / G711a / G729 |
| THD (Total Harmonic Distortion) |
≤0.5% at 1kHz, 1/2 rated output |
| Frequency Response |
130Hz–18kHz |
| Speaker Output |
70V / 100V (Constant-Voltage) |

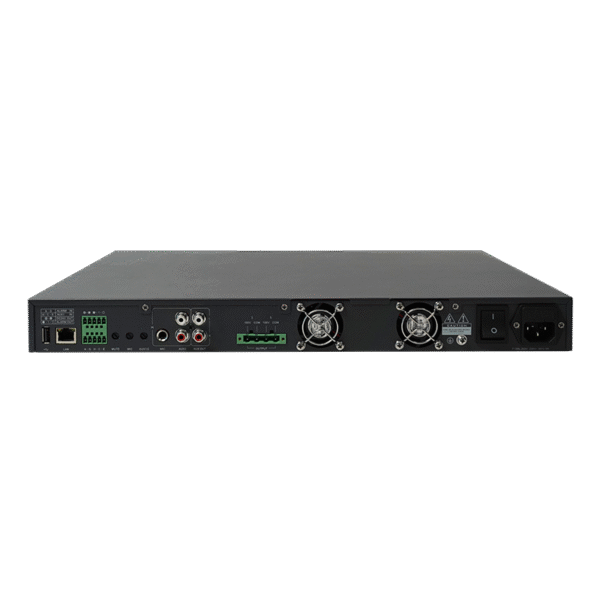

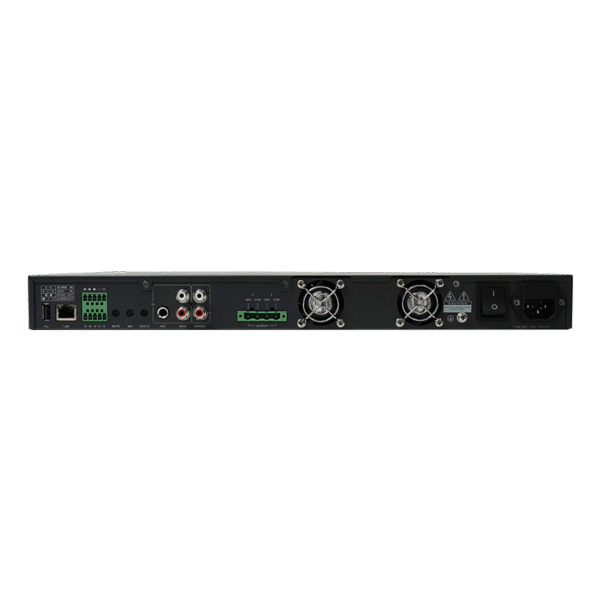

| Interface |
1×RJ45 Ethernet Port, 1×Line Input (Balanced), 1×Line Input (Unbalanced – RCA Jack),
1×Mic Input (1/4″ TS Jack), 1×Line Output (RCA Jack), 1×24V DC Relay Output,
1×Relay Input, 1×Relay Output, 1×Speaker Output (70V/100V), 1×Power Input |
| Dimensions |
440×300×44mm |
| Net Weight |
3.5 kg |
| Temperature & Humidity |
−10°C ~ +50°C, ≤90%RH (No Frost) |
| Standard Accessories |
1×4-Pin Terminal Block Connector, 2×5-Pin Terminal Block Connector, 2×Rack Ear, 4×Rubber Foot, 1×Installation Manual |
| Optional Accessories |
IEC C13 Power Cord (US/EU/UK/AU) |
Table listing product parameters and their specifications.
