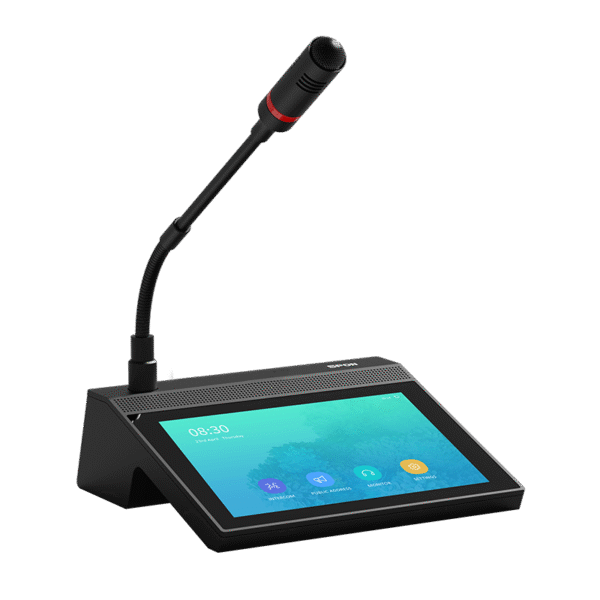

a cutting-edge communication device designed for seamless voice and broadcast functions. Equipped with a 7-inch high-definition display (1280*800 resolution), this IP intercom offers a crystal-clear visual experience. Supporting full-duplex communication, it enables smooth, real-time conversations without interruptions.
| Parameter | Specification |
|---|---|
| Power Supply | DC 12V/1.5A |
| S/N (Signal-to-Noise) Ratio | ≥82dB |
| Audio Sampling & Bit Rate | 8kHz–44.1kHz, 16bit, 8kbps–320kbps |
| Frequency Response | 40Hz–18kHz |
| Network Protocol | SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Configuration Method | Local Settings/Web Page |
| Mounting Method | Desktop |

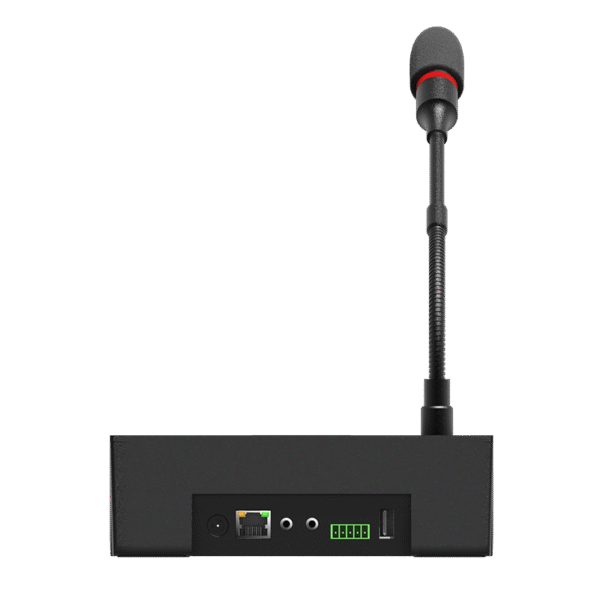

| Interface | 1×RJ45 Ethernet Port, 1×USB 2.0, 1×Line Input, 1×Line Output, 1×Relay Input, 1×Relay Output |
| Standard Accessories | 1×Gooseneck Microphone Rod, 1×3.55-Pin Terminal Block Connector, 1×Installation Manual |
| Optional Accessories | DC 12V/1.5A Power Adapter (US/EU/UK/AU) |
