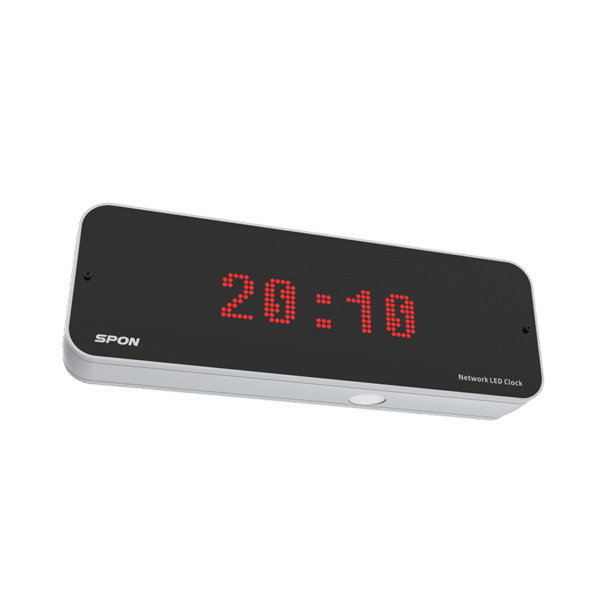

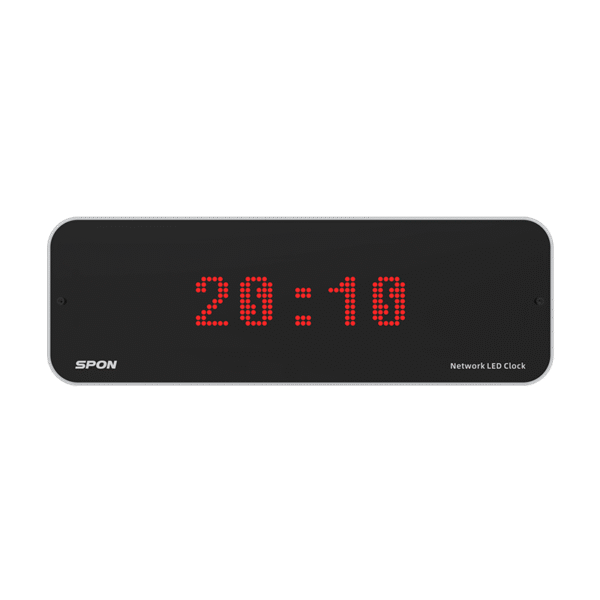

Network LED Clock

GEN-3102A03

  • High Power Output
  • Precise Time Display
  • Simplified Wiring, POE Power Supply
  • Versatile I/O Interfaces
  • Scalable & Easy to Integrate
  • Two-way communication

Description

Network LED Clock | PoE IP Network Synchronized LED Digital Clock

The Network LED Clock is an audio terminal with a built-in LED clock display, ensuring precise NTP time synchronization. It features a built-in 2×30W amplifier to drive 8Ω speakers and an integrated microphone for two-way intercom, enhancing communication in classrooms and monitoring rooms. It also upgrades any passive speaker into a network-enabled device, bringing the full benefits of SIPLINK network audio—regardless of the brand or design.

Specifications

Specifications
Parameter Specification
Power source DC24V, PoE (IEEE802.3af/at)
Power cons ≤ 3W
Network protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency response 100 ~ 20 KHz
Rated output 2×30W (Use DC 24V), 2×7W (Use PoE/PoE+)
Network I/F 100BASE-TX, RJ45 Connector
Audio input x1, Line/Mic input (Balanced, Switchable)
Control input x2
Control output x1
Operating temperature -10°C ~ +50°C
Housing Material Sheet Metal, ABS
Dimensions 366 × 123 × 55 mm
