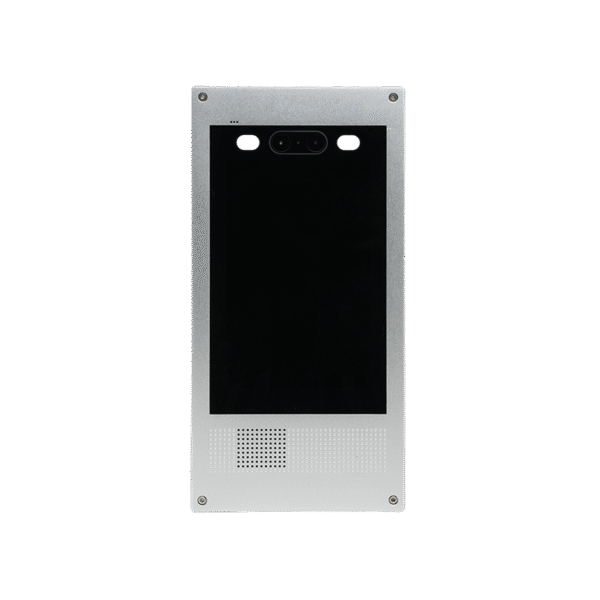

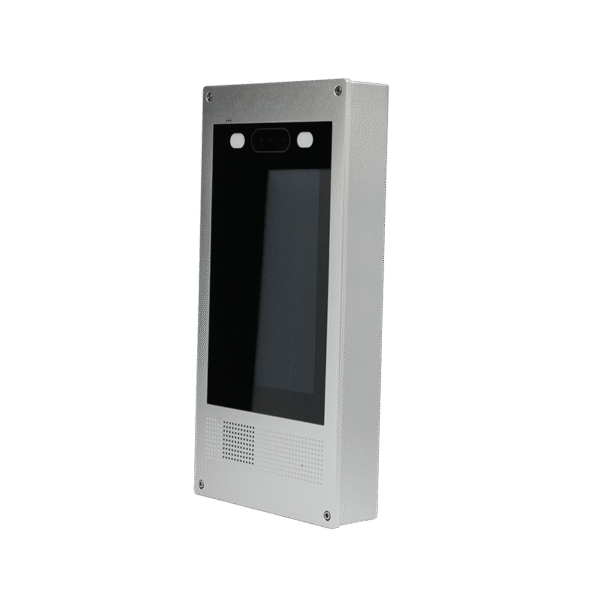

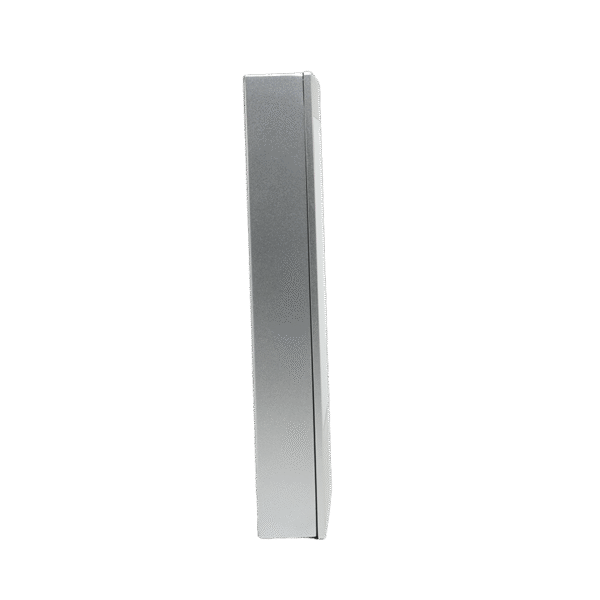

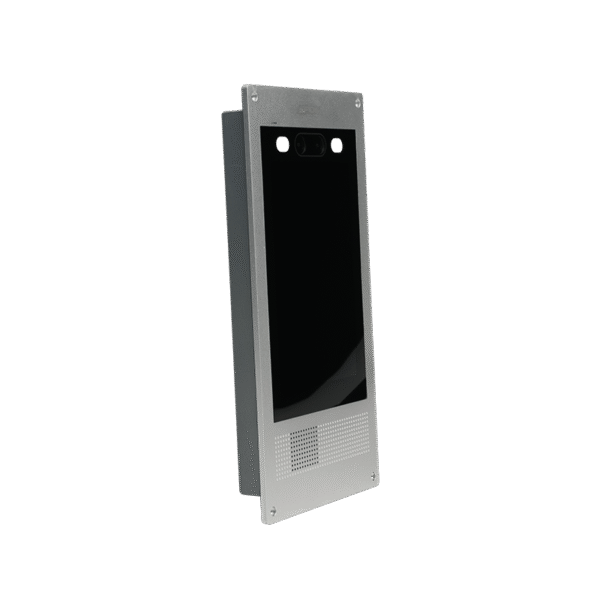

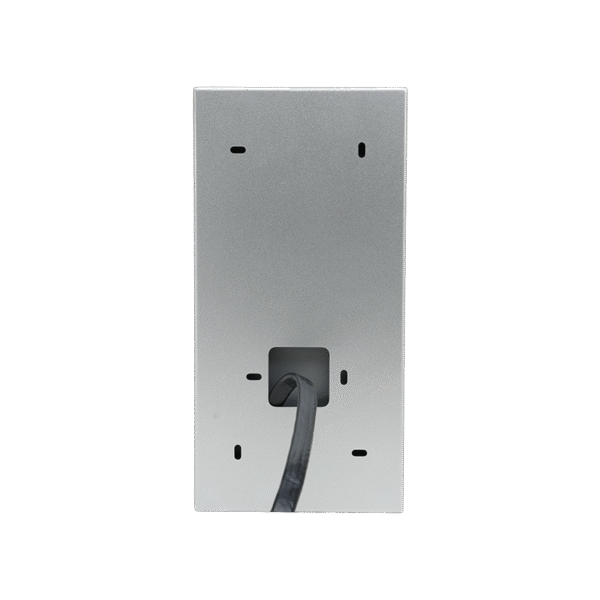

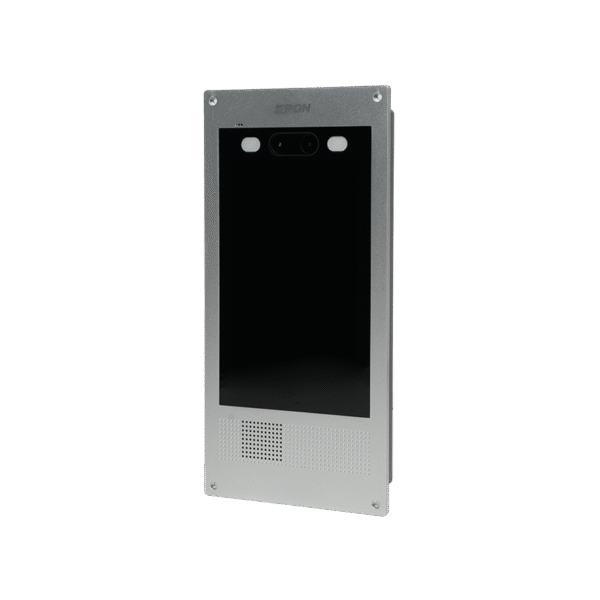

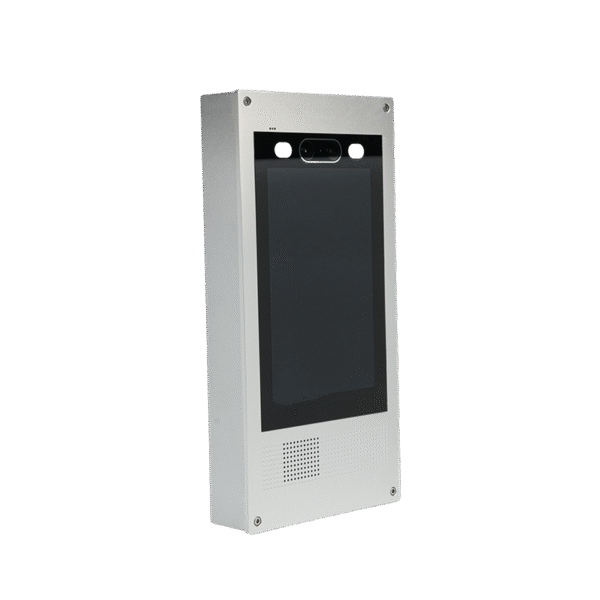

Network Outdoor Visual Intercom

XC-9135AVE

  • 7″ Touch Screen
  • Noise Reduction
  • Durable Aluminum Panel
  • Built-in 3W Speaker & Mic
  • Three Calling Modes

Description

Network Outdoor Visual Intercom – Stylish, Strong, Smart

The Network Outdoor Visual Intercom features a compact and modern design with a premium aluminum front panel for durability in all weather conditions. It comes with a 7-inch HD touchscreen (1280×800 resolution) for clear video display and easy operation. Built-in 3W speaker and microphone support hands-free two-way communication and broadcast reception. Ideal for building entrances, campuses, and gated communities, it offers a sleek look with reliable performance for outdoor access control.



Specifications

Parameter Specification
Model No. XC-9135AV
Power Supply DC 24V/1A or PoE (IEEE802.3At/Af)
Standby Power Consumption <4W
Overall Power Consumption ≤6W
Network Protocol SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Sampling Rate 8kHz-44.1kHz, 16bit
Transmission Bit Rate (Audio) 8kbps-320kbps
Video transmission Bit Rate 512Kbps-1Mbps
Video Coding GVA
Total Harmonic Distortion (THD) <1%
Signal-to-Noise (S/N) Ratio 84dB
