Description

SPON Network Paging Console

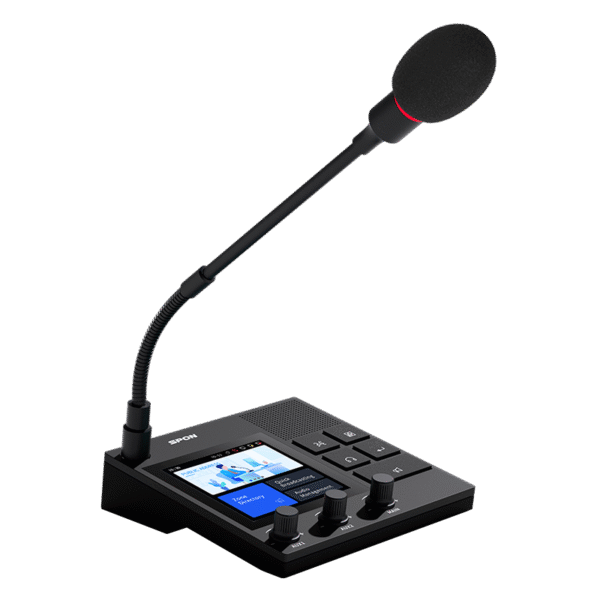

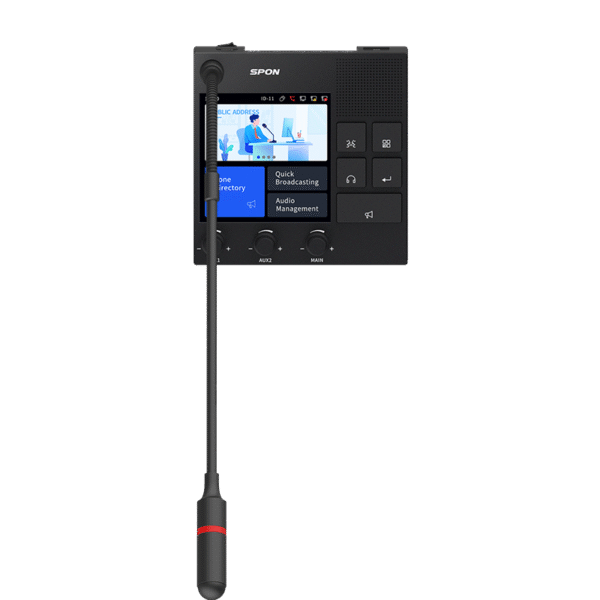

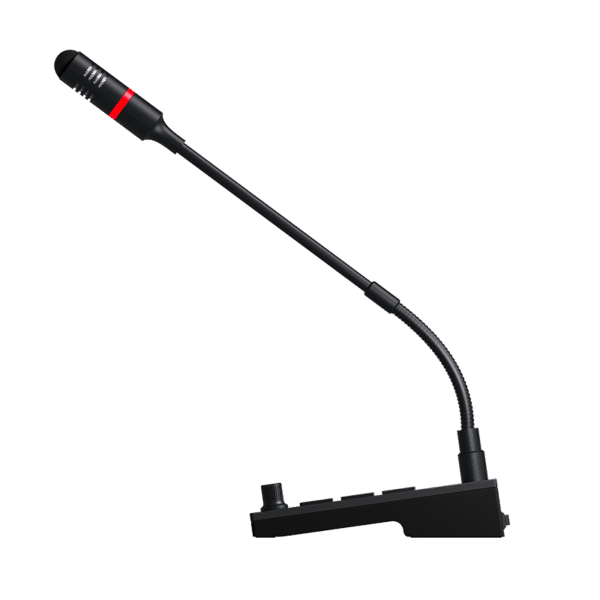

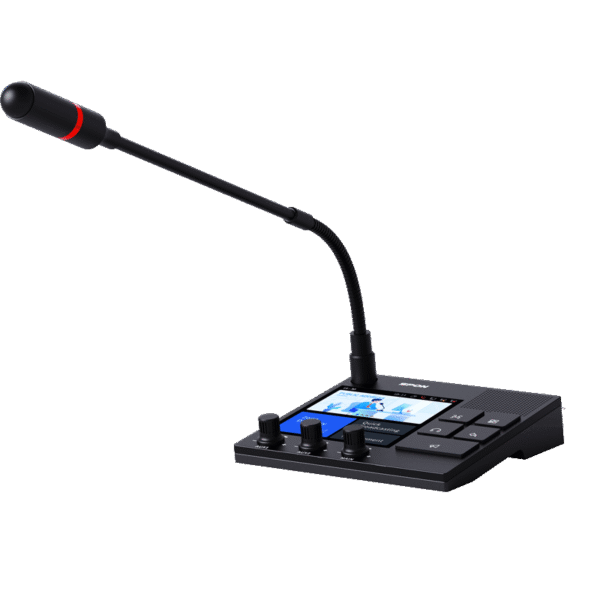

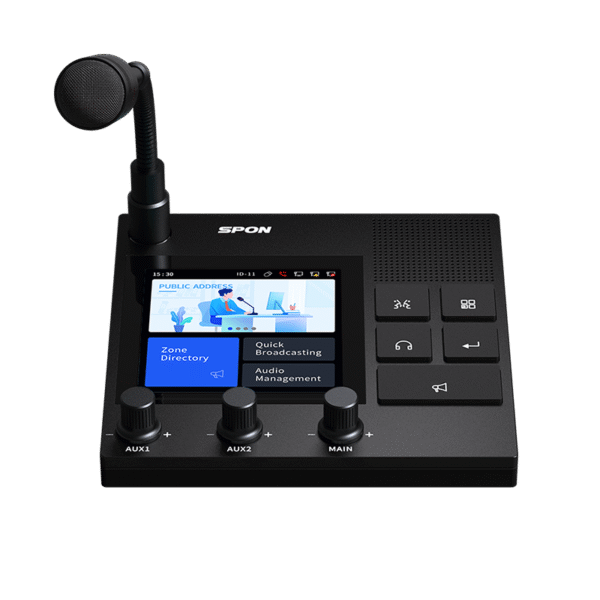

The SPON Network Paging Console is a powerful and modern communication tool. Featuring a 4-inch touchscreen and a sleek aluminum alloy panel, it supports zone paging, SIP protocol, and real-time two-way communication. Built-in speaker and microphone ensure clear audio, while mobile app control allows easy remote management. Perfect for schools, factories, offices, and factory, this console brings smart paging and intercom together in one compact device.

Specifications

Specifications
Parameter	Specification
Power Supply	DC 12V/1.5A
S/N (Signal-to-Noise) Ratio	≥80dB
Audio Sampling & Bit Rate	8kHz–44.1kHz, 16bit, 8kbps–320kbps
Frequency Response	100Hz ~ 16kHz
Network Protocol	SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP, FTP, DHCP
Configuration Method	Local Settings/Web Page
Mounting Method	Desktop
Interface	1×RJ45 Ethernet Port, 1×USB 2.0, 2×Line Input, 1×Line Output, 1×Relay Input, 1×Power supply port
Dimensions	144×144×34mm
Weight	0.55KG
Standard Accessories	1× Microphone Rod, 1× Terminal Block Connector, 1× Installation Manual, 1× Certification
Optional Accessories	DC 12V/1.5A Power Adapter (US/EU/UK/AU)

Network Paging Console

XC-9038N
