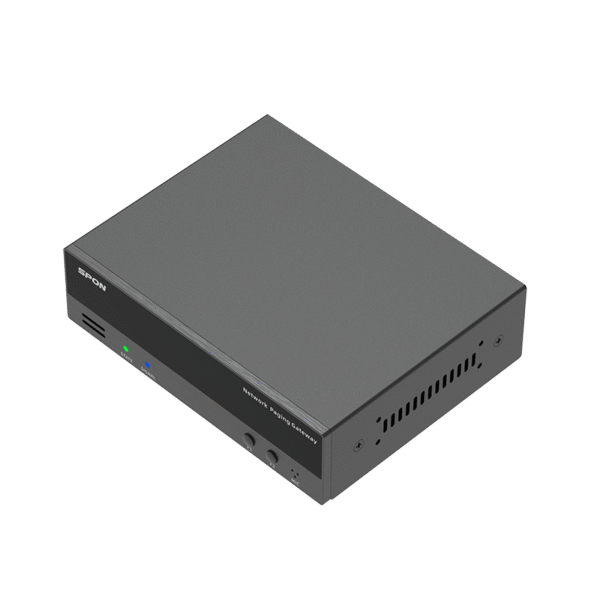

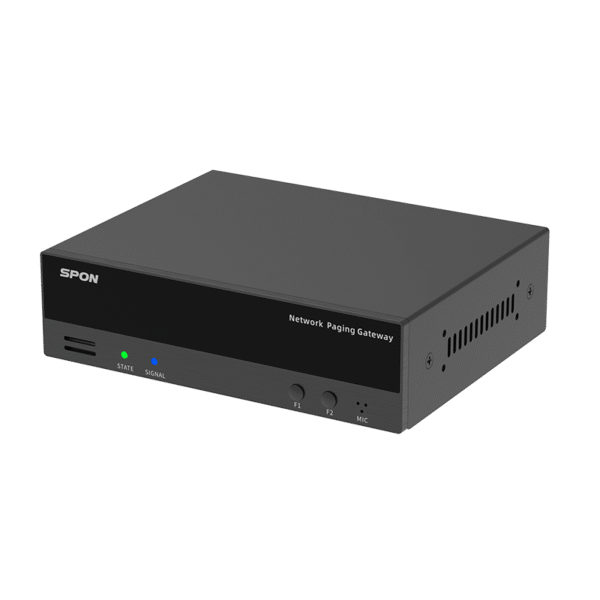

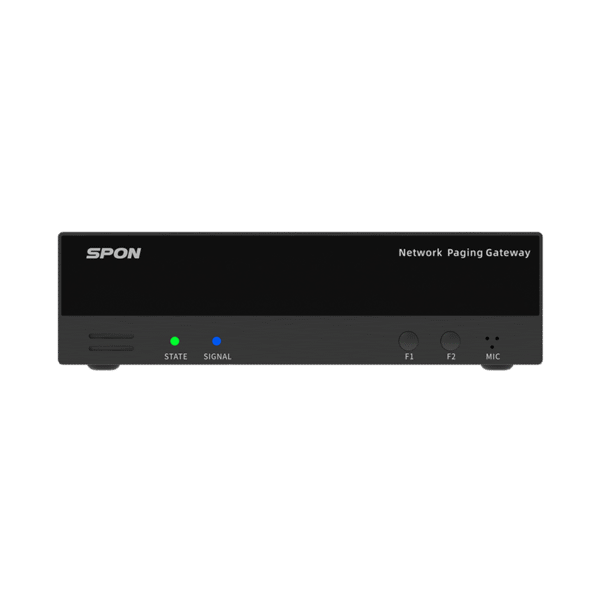

Network Paging Gateway

GEN-2001

  • Simplified Cabling with PoE

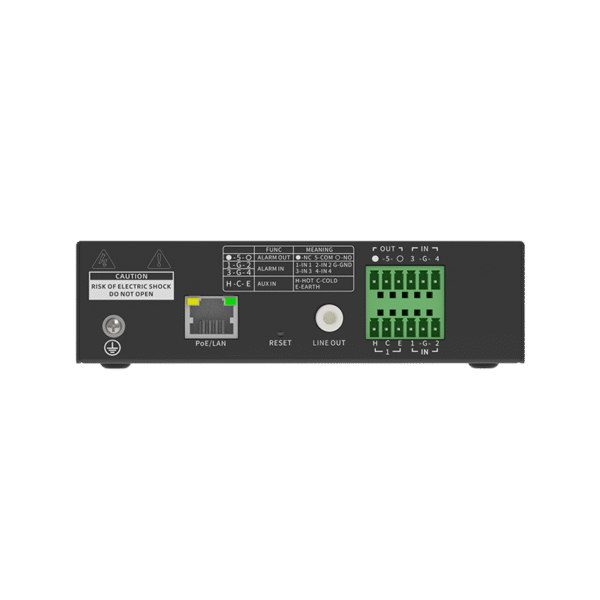

  • Versatile I/O Ports
  • 2 Customizable Keys
  • Audio Input/Output
  • Multiple Audio inputs Conversion
  • Flexible Installation Options

Description

Desk Microphone – Effortless Audio Broadcasting

The Network Paging Gateway is a POE-powered device that seamlessly converts SIP, ONVIF, and Bluetooth audio into multicast streams for efficient zoning and broadcasting. Designed for digital paging systems, it features expansion ports, control I/O, a built-in timer, and API triggers for flexible integration and automation. With simple installation and a built-in scheduler, it easily integrates with network speakers and third-party platforms, making it ideal for enhancing communication across diverse environments.

Specifications



Parameter Specification
Power source PoE (IEEE802.3af/at)
Power/current consumption ≤3W
Network protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Power Cons ≤3W
Network I/F 100BASE-TX, RJ45 Connector
Audio input x1, Line/Mic input (Balanced, Switchable)
Audio output x1 (RCA Connector)
Control input x4
Control output x1, Relay output / DC12V output switchable
Operating temperature −10°C ~ +50°C
Housing Material Sheet Metal

Table listing device parameters and their specifications.
