Network Paging Microphone

GEN-9102N/T

  • Simplified Wiring with PoE
  • 1GB Large-Capacity Storage
  • Privacy Protection with Handset Support
  • 216 PPI HD Display
  • 40 Customizable Function Keys
  • One-Touch Emergency Broadcast

Description

Desk Microphone – Effortless Audio Broadcasting

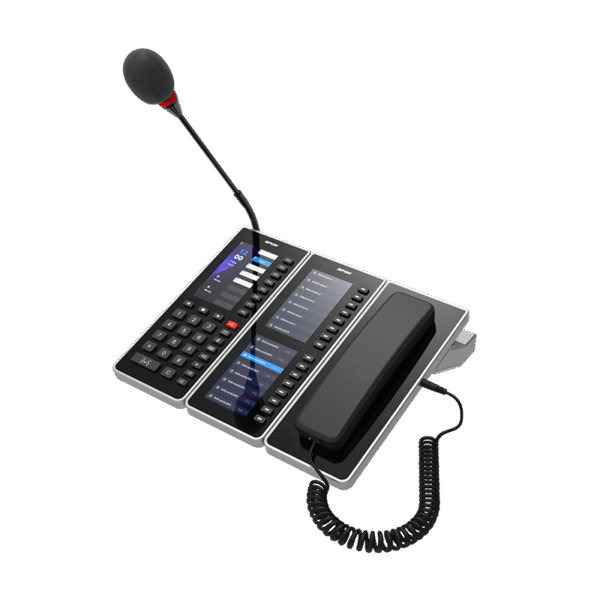

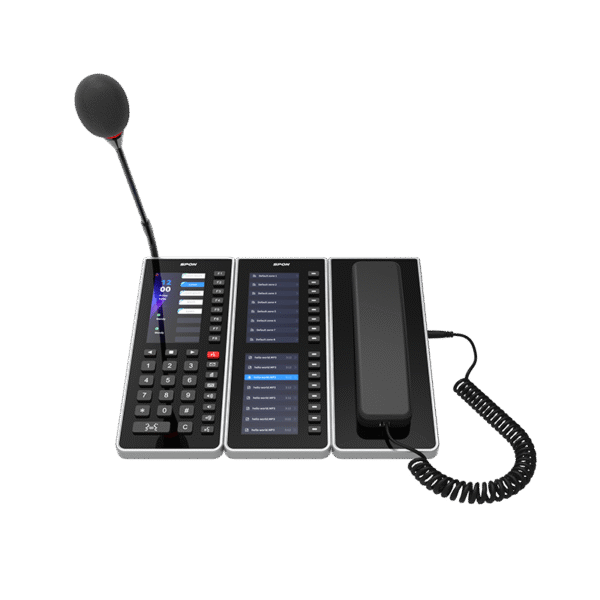

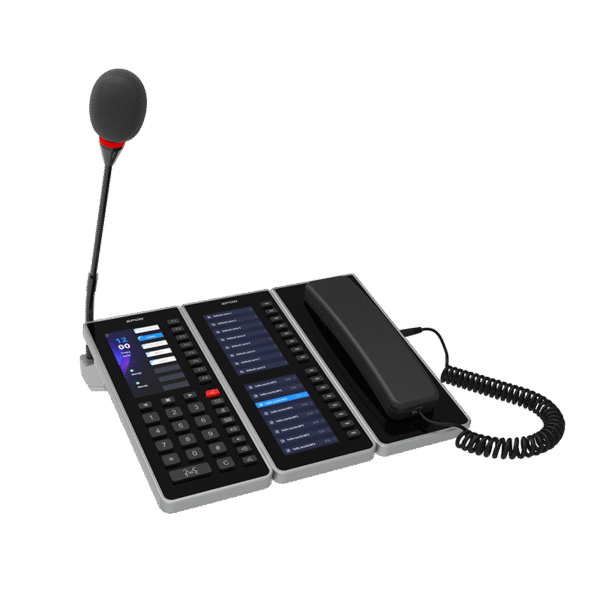

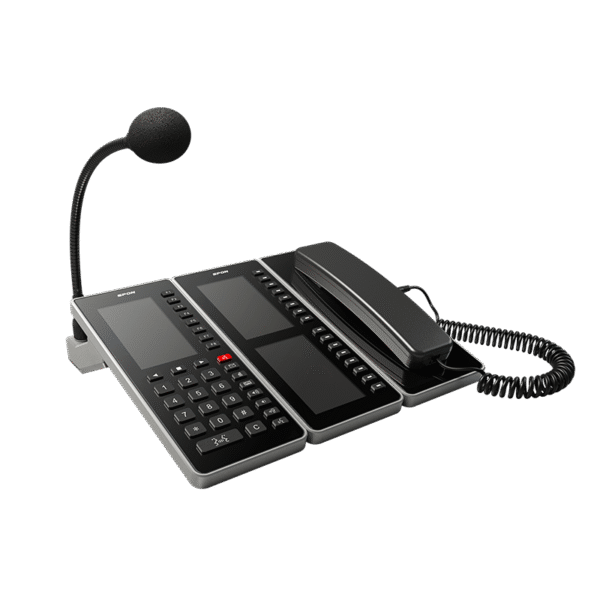

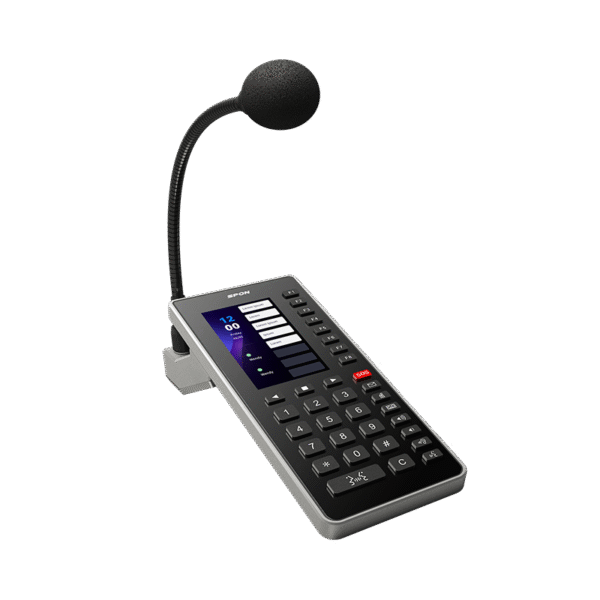

The Desk Microphone is a professional IP paging microphone designed for seamless audio broadcasting in critical communication environments. With one-touch SIP/P2P calling, multicast paging, and 1GB internal storage, it ensures clear and efficient voice transmission. This PA microphone supports expansion with two sub-screens and a handset, making it adaptable for various applications. Ideal for control rooms.

Specifications


Parameter Specification
Power source DC12V, PoE (IEEE802.3af)
Power cons ≤3W
Network protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP
Audio codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Mic frequency response 50Hz ~ 18KHz
Network I/F 100BASE-TX, RJ45 Connector
Line input x1 (3.5mm port)
Line output x1
Control input x1
Operating temperature −10°C ~ +50°C
Housing Material Aluminum, Plastic

Table listing device parameters and their specifications.
