Network POE Horn Speaker

GEN-6391A03

  • POE Supply
  • Easy Configuration
  • Two-way Communication
  • SIP Endpoint Compatibility
  • Compact Rack-Mount Design

Description

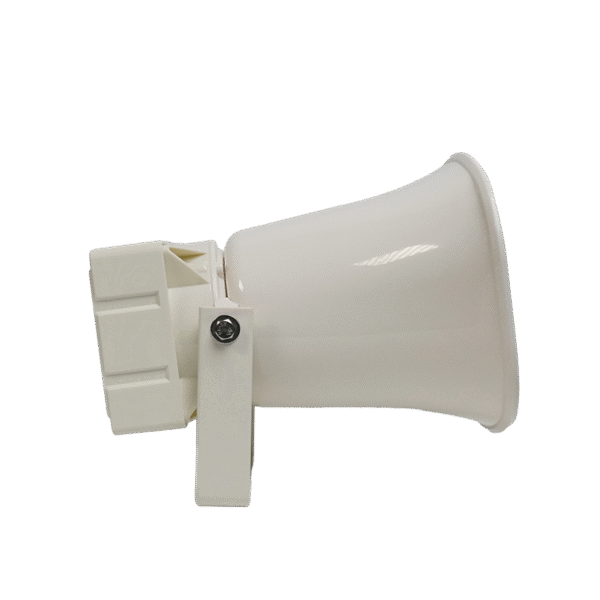

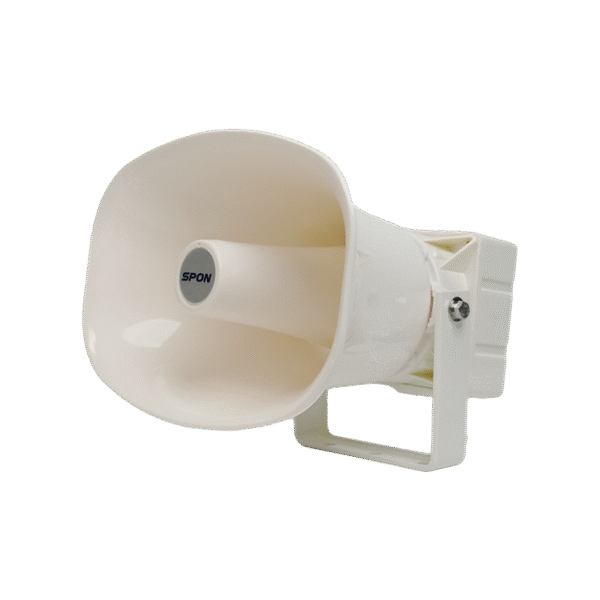

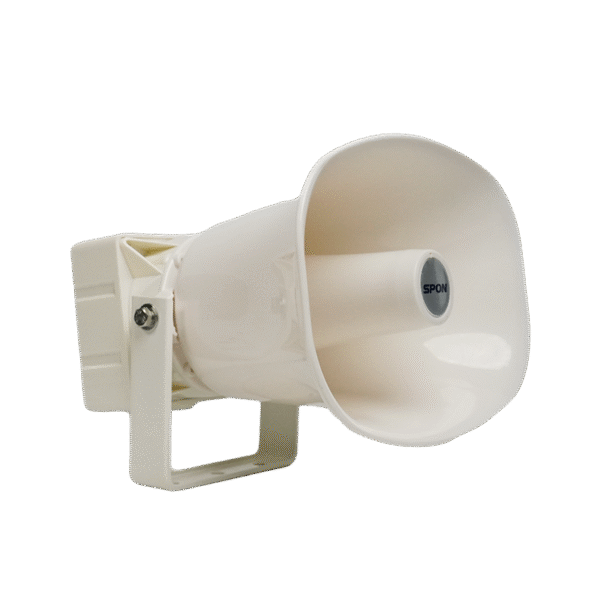

Network POE Horn Speaker

The Network POE Horn Speaker by SPON is a powerful audio solution designed for businesses and large spaces. Its all-in-one wall-mounted design integrates network audio decoding, digital amplification, and the speaker in one compact unit. It supports POE power supply (IEEE802.3at standard) and connects easily to existing networks via a standard RJ45 interface. Ideal for factories, schools, and public spaces, it offers clear sound and reliable communication.

With a built-in high-fidelity speaker, stereo class D amplifier, and microphone, it supports intercom features. It also supports SIP and ONVIF protocols, allowing easy integration with other systems. The speaker works in a wide range of temperatures, making it suitable for various environments.

Specifications


Parameter Specification
Power Supply DC 24V/2.7A or PoE (IEEE802.3af), PoE+ (IEEE802.3at)
Power Consumption ≤3W
Rated Power Output 30W (at DC 24V/2.7A powered) 22W (at PoE+ powered) 15W (at PoE powered)
Network Protocol SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Sensitivity 105dB±3dB (1M/1W)
S/N (Signal-to-Noise) Ratio ≥80dB
Frequency Response 350Hz ~ 7kHz
Interface 1×RJ45 Ethernet Port, 1×Power Input
IP Rating IP65
Dimensions 283.1 × 269 × 224.3 mm
Net Weight 2.0 kg
Standard Accessories 1×3-Pin Terminal Block Connector, 1×4-Pin Terminal Block Connector, 1×Installation Manual
Optional Accessories DC 24V/2.7A Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)

Table listing device parameters and their specifications.
