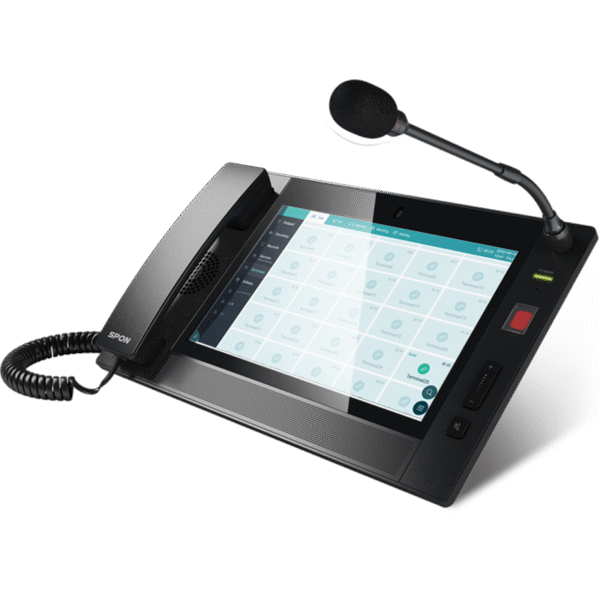

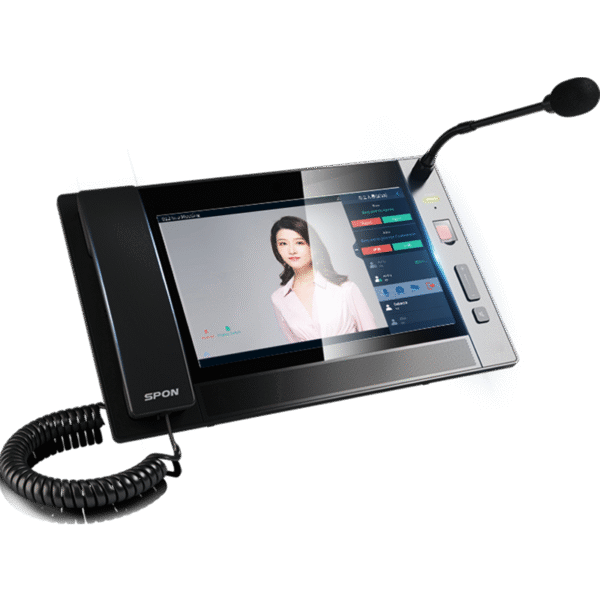

Network Video Paging Console

XC-9031NV

  • 10″ Touch Display
  • Multi-Video Calls
  • Quick Emergency PA
  • HDMI & SIP Support
  • 13MP Face Recognition

Description

IP Video Paging Console

Network Video Paging Console is a multifunctional terminal device integrating high-definition audio and video intercom, intelligent security management and multi-party conference collaboration, designed for intelligent parks, office buildings, campuses, hospitals, transportation hubs and other scenarios. Its powerful hardware configuration and flexible software functions can meet the diversified needs of users for efficient communication, intelligent security and remote collaboration, and is the core hub of modern security and communication systems.

Network Video Paging Console redefines the security communication standard with industrial-grade hardware design, intelligent function integration and high scalability. Whether for daily management or emergency response, it can provide users with efficient, stable and safe audio and video interaction experience, helping to build an intelligent and integrated security ecosystem.

Specifications

Specifications
Parameter Specification
Power Supply DC 12V/3.3A or PoE IEEE802.3af
Camera 13MP
Video Codec VGA/720/1080
S/N (Signal-to-Noise) Ratio ≥85dB
Audio Sampling & Bit Rate 8kHz ~ 48kHz, 16bit/32bit, 8kbps ~ 320kbps
Frequency Response 22Hz ~ 20kHz
Network Protocol SIP (RFC 3261), TCP, UDP, ARP, ICMP, IGMP, HTTP, RTP
Configuration Method Local Settings/Web Page
Mounting Method Desktop

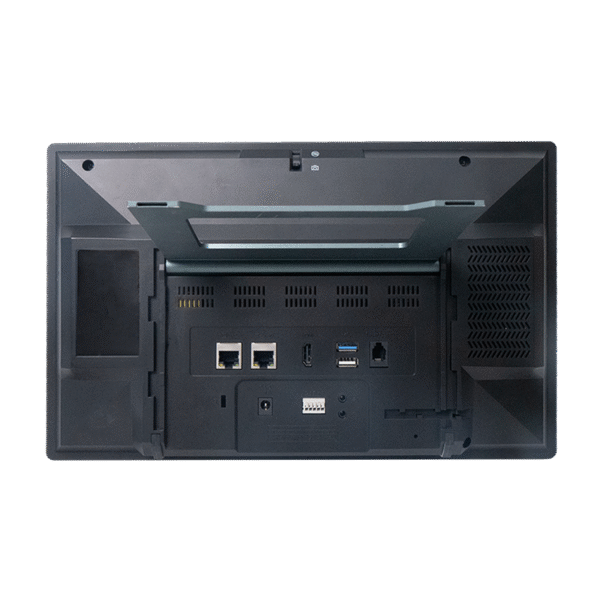

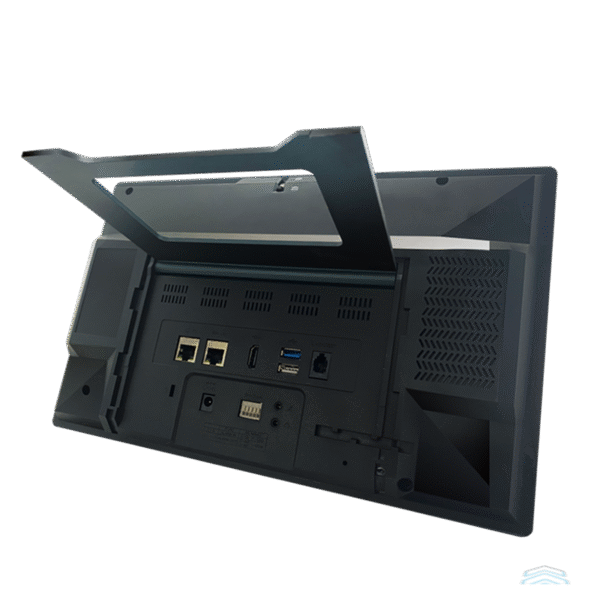

Interface 1×RJ45 Ethernet Port, 1×PC Port, 1×HDMI Port, 1×Handset Port, 1×USB 2.0, 1×USB 3.0, 1×Line Input, 1×Relay Input, 1×Relay Output, 1×Power Port
Dimensions 337×211×32.7 mm
Weight 1.5 kg
Standard Accessories 1×Telephone Cable, 1×Handset, 1×Gooseneck Microphone Rod, 1×Installation Manual
Optional Accessories DC 12V/3.3A Power Adapter IEC C13 Power Cord (US/EU/UK/AU)
