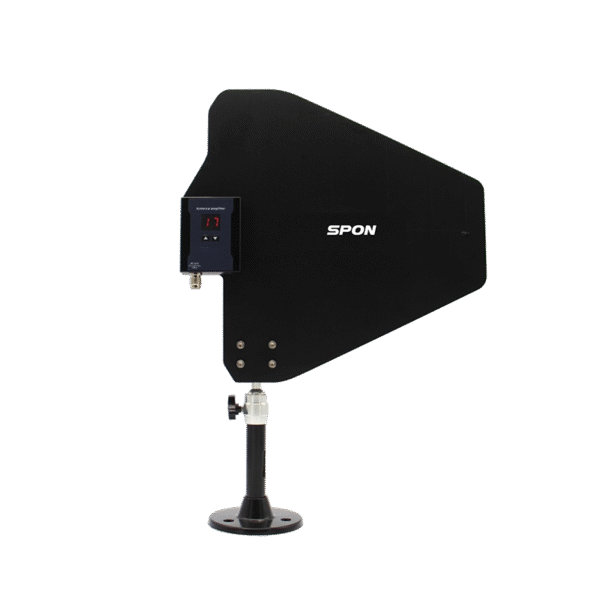

UHF Active Directional Antenna Paddle

SAP-ZQS-20

  • Adjustable Gain, LCD Setup
  • Professional Logarithmic Antenna
  • Extended Range, Anti-Interference
  • Wide Compatibility, 500-850MHz Range
  • Log-Periodic Array, Enhanced Rejection

Description

Wide 500–850 MHz Coverage

A professional-grade UHF band log-periodic antenna covering 500–850 MHz, delivering excellent signal capture for targeted reception in both stage and conference environments.

Adjustable Gain & Water-Resistant

The built-in adjustable gain amplifier enables precise tuning to match the reception conditions and minimize interference.With a water-resistant design, it is suitable for both indoor and outdoor use, ensuring stable performance in various environments.

Specifications

Parameter Specification
Power Supply DC 6V-10V (supplied via TNC antenna port)
Current Consumption 60mA
Frequency Range 500MHz-850MHz UHF
Antenna Connector Type TNC
Output Impedance 50Ω
Antenna Gain 3-5 dB
Dimensions 302mm x 252mm x 23mm
Weight 430g
Standard Accessories 2×Mounting Bracket / 2×13 ft. TNC Cable / 2×BNC Male to TNC Female Coaxial Adapter / 1×Installation Manual
