Wireless Access Point

LCS-5301Z

  • High-Speed and Efficient Connectivity
  • Network Optimization & Security
  • Power Supply & Cost Efficiency

Description

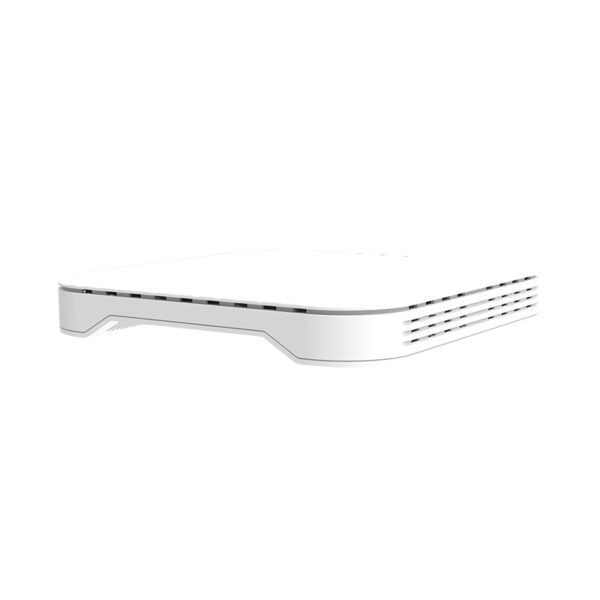

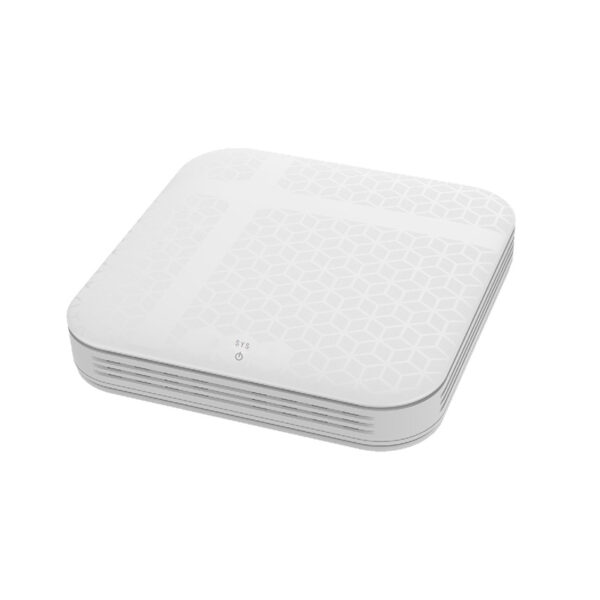

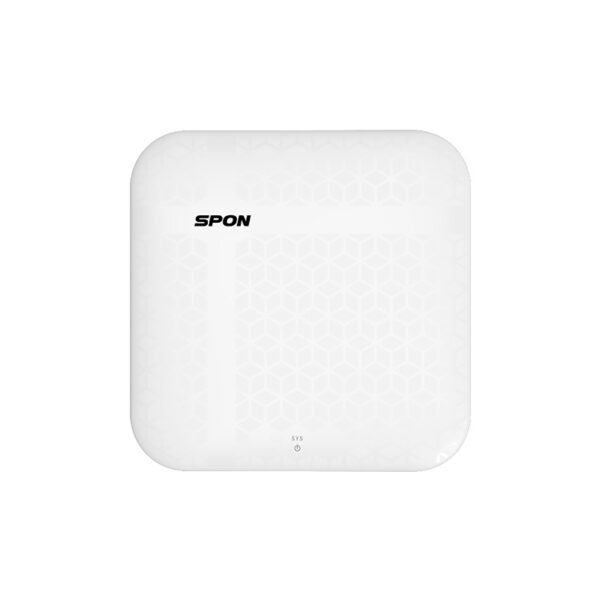

Wireless Digital Conference Access Point

This wireless access point delivers exceptional transmission quality and blazing-fast speeds, with a maximum concurrent rate of up to 3000Mbps. Designed for stability and ease of use, it supports a built-in hardware watchdog to auto-recover from system failures—ensuring long-term, maintenance-free operation. With a sleek, concealed-port design, it offers both aesthetic appeal and clean wiring for modern environments. Dual power supply options (48V PoE and 12V DC) provide flexible installation in various network setups.

Specifications

Parameter Specification
Chip Solution MT7981B+MT7976C+MT7531A
CPU Dual Core 1.3GHz
RAM 256 MByte
ROM 16 MByte
Wireless Network Protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax
Working Frequency 2.4GHz/5GHz
Power Input DC12V/1.5A or POE IEEE802.3at
Interface 1*10/100/1000Mbps RJ45 upstream LAN port, supporting 802.3at standard PoE power supply;1*10/100/1000Mbps RJ45 downstream LAN port;1*Power Interface;1*Reset Button;
Working Temperature -20°C~55°C
