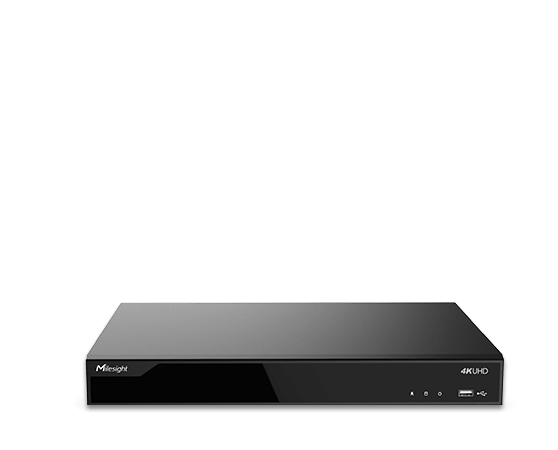

4K Pro NVR 5000 Series 8/16-CH NVR with 4K UHD Performance

MS-N5008 E

  • 8/16-CH Network Video lnput
  • AI VCA Management
  • 4K Decoding Capabilities
  • 2*10TB Storage & NAS
  • ANPR Management
  • POS Integration
  • ANR
  • Versatile Interfaces

Description

Stunning Reliability, Perfect for Your Project

ANR Function

AI VCA Management

Defined as the central management site to manage intelligent VCA, People Counting, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.

Enterprise ANPR Management

Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.

anpr

POS Integration

The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.

Dual Stream Recording

Supporting Primary Stream and Secondary Stream recording simultaneously, Dual Stream Recording makes it possible for you to freely choose the desired streaming based on the bandwidth available.

UHD Video Display

Equipped with solid 4K decoding and display capabilities, Milesight 4K Pro NVR 5000 Series can synchronously decode up to 3-CH 4K UHD and 12-CH 1080P with the finest details to guarantee real-time video monitoring.

HTML5 Streaming

The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized, making it easy for users to access the NVRs.

Flexible Storage Options

Flexible storage options including HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.

ANR

ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

Easy-to-use Design

Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight’s NVR is made to lower the learning costs no matter for a newcomer or trained expert.

poe nvr 1000 easy to use

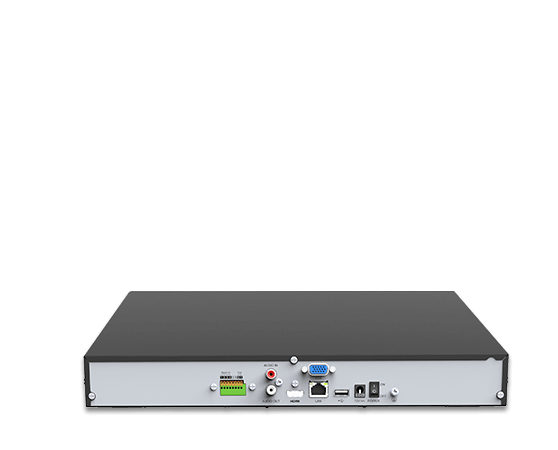

Versatile Interfaces

Milesight 4K Pro NVR 5000 Series comes with a whole array of ports such as an HDMI port, a VGA port, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance.

interface

1. Alarm I/O

2. VGA

3. Audio I/O

4. HDMI

5. Ethernet Port

6. USB

7. Power

Specifications

Input
Network Video Input 8-CH
Bandwidth Requirement 80Mbps (Incoming)50Mbps (Outgoing)
Output
HDMI Output 1-CH, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI Supports Audio Output
VGA Output 1-CH, Resolution: 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Dual Stream Support
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback *The recommended parameters are theoretical values only. Actual performance may vary depending on the usage environment, the number of connected cameras, and their models.
*Resolutions with width or height >4096 not supported for decoding.
1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP), 4*(30fps @3MP), 6*(30fps @1080P), 8*(30fps @720P)
Format
Video Compression H.264+/H.264
Audio Compression G.711/AAC/G.722/G.726
Sample Rate 8KHz/16KHz
Storage
SATA 2*SATA HDD (3.5”)
Capacity Up to 10TB capacity for each HDD
Record
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type N/A
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup
Network
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface 1*RJ45 10/100/1000Mbps
USB Interface 2*USB 2.0
Audio Input/Output 1*RCA/1*RCA
Alarm Input/Output 4-CH/1-CH
General
Compatibility ONVIF, API
Advanced Function ANR
ANPR Support
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard Control Milesight Keyboard(MS-K01)
Power Supply DC 12V 50Hz∼60Hz
Consumption ≤3W(Without HDD)
Working Conditions Temperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard)
Weight 1.9Kg
Warranty 3/5 Years

* Naming Convention
U – 4K
H/G – AI Series
