| Camera |
|---|

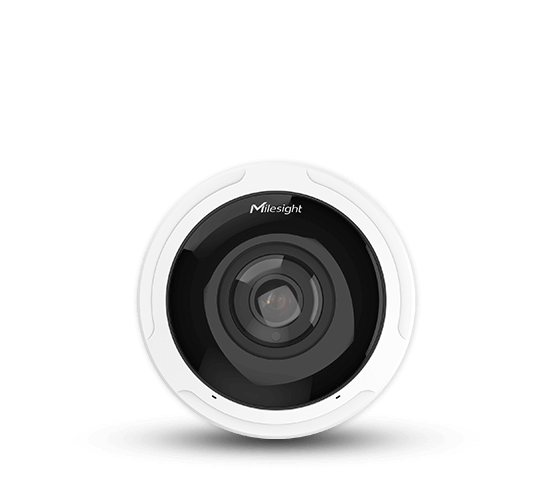

| Name | 8MP NDAA AI 360° Fisheye Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Mount | M12 |
| Field of View | Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360° |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 15m |
| S/N | >55dB |
| Display |
|---|

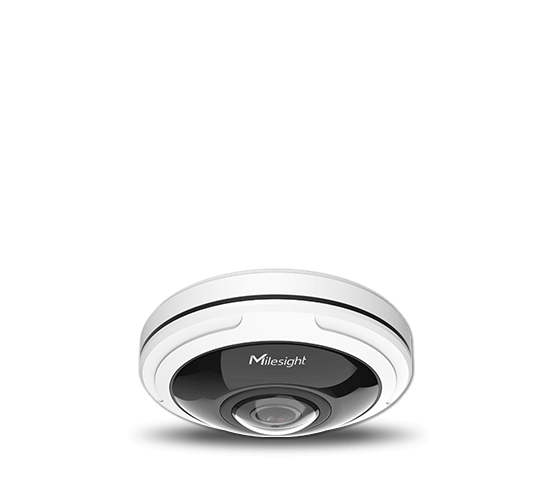

| Mount Mode | Ceiling Mount / Wall Mount / Flat Mount |
| Decoding Mode | On-board Dewarping/Client-side Dewarping |
| Display Mode | 11 display modes in total.
Client-side Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
On-board Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Note:
1. Only Fisheye in Multi-Channel Mode supports 1O1P3R.
2. The above letters O, P and R are explained as follows: O—-Fisheye View; P—-180° Fisheye View; 2P—-2*180° Panoramic View; R—-PTZ |
| Video |
|---|
| Max. Input Resolution | 3840×2160 |
| Primary Stream | Fisheye View:
60Hz: 30fps@(2144×2144, 2048×2048, 1920×1920, 1280×1280)
50Hz: 25fps@(2144×2144, 2048×2048, 1920×1920, 1280×1280) |
| Secondary Stream | Fisheye View:
60Hz: 30fps@(1280×960, 1024×1024, 736×736, 576×576)
50Hz: 25fps@(1280×960, 1024×1024, 736×736, 576×576) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Audio |
|---|
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Interface |
|---|
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network |
|---|
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Intelligent Analytics |
|---|
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System |
|---|
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input(Only for Multi-interface Version), etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output(Only for Multi-interface Version), SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General |
|---|
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 6W MAX, 8W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions | Φ140mmX45.4mm |
| Weight | 700g |
| Warranty | 3/5 Years |
