Description

Compact Size, Stylish Design and Easy Installation

Product LineupIntroduction

VCA 2.0: Precision That
Redefines Security

Designed with security at its core, Milesight camera features VCA 2.0 technology, powered by the enhanced chip. VCA 2.0 significantly reduces false alarms rate, ensuring reliable, precise detection while minimizing disturbances and potential losses.

Unlock Deeper Insights with MSense Technology

Edge AI counts people/vehicles, generates heat map, and detects face attributes (age, gender, glasses, mask, cap). All events and metadata stream to your
backend, delivering insights that optimize operations and security management.

mini series msense

0.005lux ultra low light

0.005Lux Ultra Low-light

smart ir ii

Smart IR II Technology

Up to 4K Viewing Experience

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, Smart IR II Technology, and up to 4K Video Viewing Experience features make it well-suited for various special circumstances.

Motorized Zoom Lens

Equipped with motorized zoom & focus lens, the camera allows remote control of focal length, iris and focus through a lens controller, which is perfect for long distance surveillance.

P-Iris Control

Adopting P-Iris control technology, the camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

p iris

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Versatile Interfaces (Optional)

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

versatile interfaces

Integrated Junction Box

The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

two colors

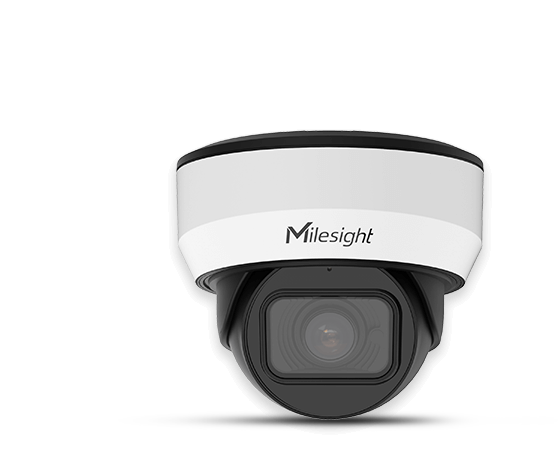

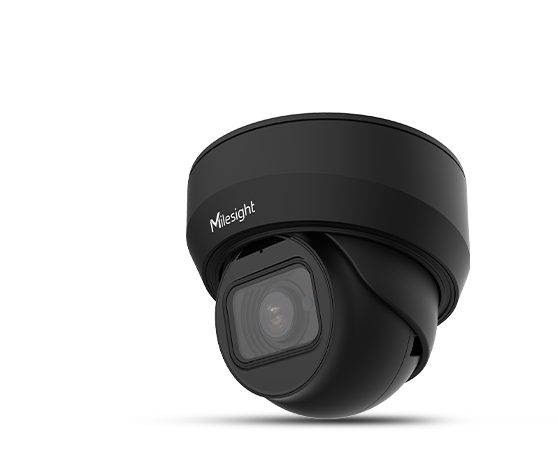

Two Colors Available

Available in White and Black, the camera provides more choices for your preference.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

Specifications

Camera
Name	2MP NDAA AI Motorized Dome Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.4 B/W: 0Lux with IR on
WDR	120dB Super WDR
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Lens
Lens	Motorized 2.7∼13.5mm/7∼22mm @F1.4
Field of View	H97°~H31°/D113°~D36°/V53°~V18°(2.7~13.5mm) H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
Mount	Φ14
Focus Control	Auto/Manual
Video
Max. Image Resolution	1920×1080
Primary Stream	60Hz: 60fps@(1920×1080)(Optional for R Series), 30fps@(1920×1080, 1280×960, 1280×720, 704×576) 50Hz: 50fps@(1920×1080)(Optional for R Series), 25fps@(1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream	60Hz: 30fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192) 50Hz: 25fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192)
Tertiary Stream	60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 352×288, 320×240, 320×192) 50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 352×288, 320×240, 320×192)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 4 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Image Enhancement	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	Built-in Microphone; 1/1 (Optional, Only for Multi-interface Version)
Alarm I/O	1/1 (Optional, Only for Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report	Count the number of people entering or exiting
Event
Event Trigger	Motion Detection, Audio Alarm, etc. Motion Detection, External Input, External Output,Audio Alarm (Optional, Only for Multi-interface Version), etc.
Exception	Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card
Event Action	FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audo, HTTP Notification, etc.; External Output (Multi-interface Version)
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	5.2W MAX, 6.4W MAX (With IR on)
Housing	Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight	Approx. 780g
Dimensions	Φ130mmX115mm
Warranty	3 Years / 5 Years (Optional)

Naming Convention
R – High Frame Rate (60fps)
T- High Frame Rate (100fps)
F – Motorized Vari-focal Lens
I- Pris Supported (Optional)
P – PoE Supported
C/D – A-Series

AI Motorized Dome Network Camera Intelligent and Robust for Mission-critical Applications

MS-C2975-FPD
