AI Motorized Pro Bullet Network Camera Intelligent and Endurable for the Most Severe Conditions

MS-C5362-RFPG1

  • AI Empowered VCA
  • 100m IR Distance
  • 140dB Super WDR & 0.0009Lux Low-light
  • 90fps High Frame Rate
  • PTFE Membrane
  • Audio I/O, Alarm I/O, PoE & DC 12V

Description

Go Beyond Security with Pro Cameras

maxresdefault
Product Video

vca2

VCA 2.0: Precision That Redefines Security

VCA 2.0 is Milesight’s upgraded video content analysis algorithm, purpose-built for essential security tasks. From intrusion to line crossing, it delivers precise, real-time detection — even in low light, rain, or fog — with dramatically reduced false alarms.

Key Highlights:

8 built-in AI VCA features for instant threat detection.

Accurate recognition of small and multiple targets.

Up to 80m AI Detection Distance (Motorized Lens).

Ultra-low false alarm rate

MSense Technology: Transforming Video into Actionable Intelligence

Powered by advanced AI, MSense takes surveillance far beyond recording. It analyzes live video streams in real time, converting them into rich, structured metadata to unlock deeper insights for industry-specific needs.

Key Highlights:

A wide range of advanced, self-developed AI algorithms.

Purpose-built for diverse vertical applications.

Delivers actionable insights based on behaviors, counts, and attributes.

Generates metadata to support smart search, reporting, and alert linkage.

msense

Superior Night Vision, See Clearly in the Dark

Engineered for exceptional low-light performance, this feature combines a 1/1.8” large sensor with a Day-Night Co-focus Lens to capture sharp, detailed images around the clock. The upcoming AI ISP technology will further optimize image quality, delivering true-to-life colors and enhanced clarity even in the darkest environments.

AI ISP Coming Soon

image 1image 2
ai

AI ISP

co focus

Day-Night Co-focus Lens

image sensor

1/1.8” Sensor

p iris

P-Iris Control

Advanced P-Iris control technology with Milesight AI Motorized Pro Bullet Network Camera is able to automatically and precisely response to all lighting conditions, offering optimal image quality with good depth of filed.

140dB Super WDR

Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.

wdr
90 high frame rate

90fps High Frame Rate

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

Smart IR II Technology

The upgraded IR LEDs technology offers videos with a viewing range of up to 60m (100m), ensuring quality image clarity regardless of object distance. The brightness of both beams can be adjusted manually or automatically based on the zoom ratio.

smart ir
4k view

4K Video Viewing
Experience

Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.

IP67 Weather-proof Housing

Equipped with industry-leading IP67-rated weather-proofing, the camera is well protected against adverse impacts to ensure stable operation in all weather conditions.

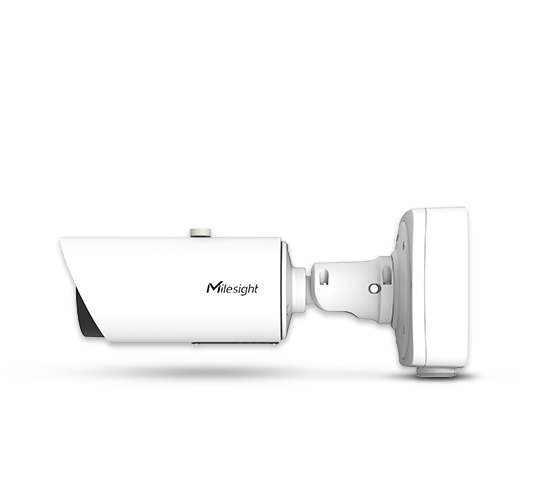

Unique Design with PTFE
Membrane

The AI Motorized Pro Bullet Network Camera uses a PTFE membrane for ventilation, keeping out dust and moisture while allowing air to flow freely to maintaining image clarity by preventing lens fogging and condensation. It features a user-friendly design with an SD card slot, reset button, and a rear 3-Axis adjustable bracket for flexible installation.

design ptfe
integrated cable bracket

Integrated Cable
Management Bracket

In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

Integrated Junction Box

A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear.

integrated junction

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

sip

Specifications

Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.006Lux@F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day / Night / Auto / Customize / Schedule
DORI Distance D: 84.6m ~ 273m O: 33.9m ~ 108m R: 16.6m ~ 53.8m I: 8.4m~26.9m
S/N >55dB
Illuminator
Illuminator Number 4
IR Wave Length 850nm
Illumination Distance Up to 60m
Illuminator On/Off Control Auto / Manual
Lens
Lens Motorized 2.7mm~13.5mm@F1.4
Field of View H93.8° ~ 32.1° / D121.5° ~ 44.7° / V68.2°~22.2°
Close Focus Distance W:0.5m, T:1m
Camera Angle Adjustment Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
Mount Φ14
Focus Control Auto/Manual
Aperture Max.F1.4
Iris Type Fixed
Video
Max. Image Resolution 2592×1944
Primary Stream 60Hz: 60fps@(2592×1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720)
50Hz: 50fps@(2592×1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720)
Secondary Stream 60Hz: 60fps@(704×576, 640×480, 640×360)
50Hz: 50fps@(704×576, 640×480, 640×360)
Tertiary Stream 60Hz: 30fps@(2048×1536,1600×1200,1920×1080, 1280×720, 704×576, 640×480, 640×360)
50Hz: 25fps@(2048×1536, 1600×1200, 1920×1080, 1280×720, 704×576, 640×480, 640×360)
Quaternary Stream 60Hz: 10fps@(1280×720), 30fps@(704×576, 640×480, 640×360)
50Hz: 10fps@(1280×720), 25fps@(704×576, 640×480, 640×360)
Video Compression H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps ~ 16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 Areas
Image Setting Brightness / Contrast / Saturation / Sharpness
Image Rotation Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Image Enhancement BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS
Hybrid Zoom Up to 40X
Network
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Intelligent Analytics
Video Analysis VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Attribute Extraction Simultaneously detect up to 50 targets and capture humans and vehicles in real time.
Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter).
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap.
Object Counting & Report Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas.
Heat Map The built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Hard Hat Detection Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat.
Privacy Protection Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats.
Fall Detection Detect a person’s fall and trigger an alarm to alert others for timely assistance.
Violence Detection Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action.
Event
One-Click Disarm Support
Basic Event Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc.
Exception Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event Action FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc.
System
Watermark Support
Storage Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support Yes, Voice & Video-over-IP
System Compatibility ONVIF Profile G & M & S & T, One API
General
Working Temperature -40℃~60℃
Working Humidity 0~95% RH(Non-condensing)
Power Supply PoE (802.3af) / DC 10V~DC 28V
Power Consumption Min.: 3.2W (DC), 4.2W (PoE)
24 Hour Average: 4.7W (DC), 5.9W (PoE)
Max.: 7.8W (DC), 9.4W (PoE)
Surge Protection 4KV
Net Weight Approx. 1.3kg
Gross Weight Approx. 2.1kg
Dimensions 134mm X 126mm X 285mm
Warranty 3 Years / 5 Years (Optional)
Certifications
EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety CE-LVD (EN IEC 62368-1)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Protection IP67

*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R – High Frame Rate (60fps)
T – High Frame Rate (90/100fps)
F – Motorized Vari-focal Lens
I – P-Iris Supported
P – PoE Supported
A/C/E – AI Series
