| Camera |
| Name |

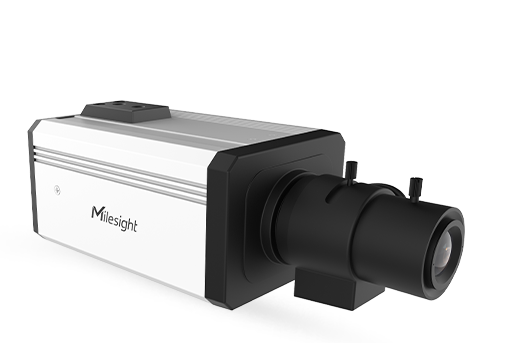

4MP NDAA AI Pro Box Plus Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.001Lux@F1.2
B/W: 0.0005Lux@F1.2 |
| WDR |
140dB Super WDR |
| Mount |
C/CS |
| Iris |
P-Iris/DC-Iris |
| Shutter Time |
1/100000s∼1s |
| Day/Night Mode |
Day/Night/Auto/Customize/Schedule |
| S/N |
>55dB |
| Video |
| Max. Image Resolution |
2688×1520 |
| Primary Stream |
60Hz: 60fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
50Hz: 50fps@(2688×1520, 2304×1296, 1920×1080, 1280×720) |
| Secondary Stream |
60Hz: 60fps@(704×576, 640×480, 640×360, 352×288, 320×240)
50Hz: 50fps@(704×576, 640×480, 640×360, 352×288, 320×240) |
| Tertiary Stream |
60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 320×240), 60Hz: 15fps@(1920×1080)
50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 320×240),50Hz: 15fps@(1920×1080) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate |
16Kbps∼16Mbps (CBR/VBR adjustable) |
| Image |
| Privacy Masking |
Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI |
Up to 8 Areas |
| Image Settings |
Saturation/Brightness/Contrast/Sharpness |
| Image Enhancement |
BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode |
| Audio |
| Audio Compression |
G.711/AAC/G.722/G.726 |
| Audio Sampling Rate |
8/16/32/44.1/48KHz |
| Audio Bit Rate |
16~256kbps |

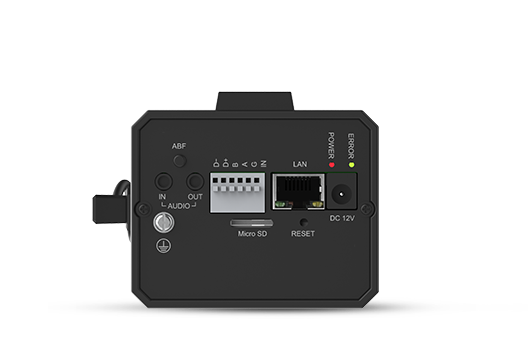

| Interface |
| Ethernet |
1*RJ45 10M/100M Ethernet Port |
| Audio I/O |
1/1 (Standard) |
| Alarm I/O |
1/1 (Standard) |
| Network |
| Network Storage |
NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols |
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, VPN, SIP, LLDP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Intelligent Analytics |
| Video Analysis |
VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection,
Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction |
Simultaneously detect up to 50 targets and capture humans and vehicles in real time.
Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition |
Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report |
Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas |
| Heat Map |
The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event |
| Basic Event |
Motion Detection, Tamper Detection, Audio Alarm, External Input, External Out, etc. |
| Exception |
Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action |
FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System |
| Auto Back Focus |
Support(Optional) |
| Watermark |
Support |
| Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support |
Yes, Voice&Video-over-IP |
| System Compatibility |
ONVIF Profile G & M & S & T, API |
| General |
| Working Temperature |
-40℃∼60℃ |
| Working Humidity |
0~95%(Non-condensing) |
| Power Supply |
PoE(802.3af)/DC 12V±10% |
| Power Consumption |
Min.: 4W (DC 12V), 3W(PoE)
Max.: 6.7W (DC 12V), 8.8W(PoE) |
| Dimensions |
130mmX75mmX66mm |
| Weight |
Approx. 427g(For ABF version)/ Approx. 366g(For Non-ABF version) |
| Warranty |
3/5 Years |
| Certifications |
| EMC |
CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety |
CE-LVD (EN IEC 62368-1) |
| Environment |
CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
