AI Road Traffic 5G Pro Bullet Plus Camera

TS4466-X4RGPEP(4MP)

Description

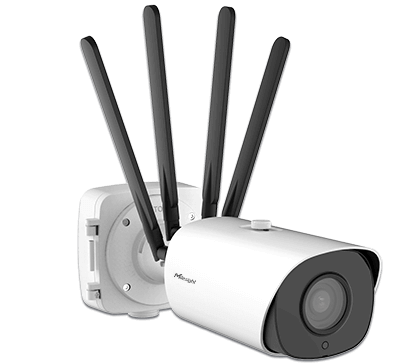

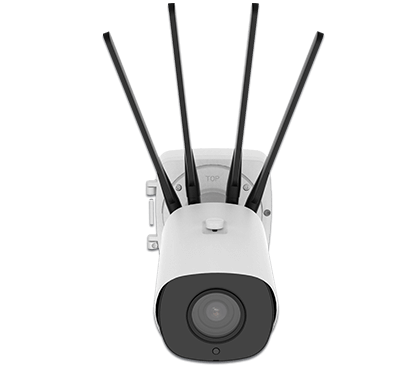

AI Road Traffic 5G Pro Bullet Plus Camera

Next Generation Video Surveillance Leveraging 5G & LPR

AI · 5G · LPR · 4X Optical Zoom · 1/8″ STARVIS Starlight Sensor · 60fps · IP66 · 4KV Surge Protection · Smart IR II · P2P

5GLPRAIHeat Map4KPoEH265+ONVIF G&Q&S&TSD CardSmart IR IIWeather-
Proof
StarlightSuper WDRPrivacy Mask3-Axis

5G High Mobility

Milesight AI Road Traffic 5G Pro Bullet Plus Camera can transmit data wirelessly by simply inserting a SIM card, eliminating the need of complicated network cable and fiber connections. Thus, it greatly assists in the traffic management in situations where temporary traffic control, costly network deployment, or bothersome wiring are inevitable.

5G High Mobility

5G Highly Efficient Data Transmission

With the higher data speed of 5G technology, Milesight AI Road Traffic 5G Pro Bullet Plus Camera can significantly reduce network latency while remaining high resolution. It establishes the foundation for a massive traffic management database that contains data on every vehicle and every incident, thus making it achievable to offer prompt evidence and insight in no time.

5G Highly Efficient Data Transmission

Traffic Violation Detection

Designed for mission-critical traffic management, AI-based AI Road Traffic 5G Pro Bullet Plus Cameras accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Parking Violation Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection based on recognized vehicle features.

Traffic Violation Detection

Traffic Flow Statistics

AI Road Traffic 5G Pro Bullet Plus Cameras provide valuable traffic flow statistics to further enhance traffic management capabilities. The vehicle counting result based on vehicle type, vehicle make and various vehicle features can be shown intuitively in camera’s live view and the camera can also generate useful report insights to aid in improved decision-making.

Traffic Flow Statistics

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, AI Road Traffic 5G Pro Bullet Plus Camera can link with any regular cameras to capture the evidence. Thanks to the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots.

Evidence Camera Linkage

LPR Smart Search

With Milesight LPR Smart Search, relevant videos can be found quickly by searching for only a portion of the target suspect vehicle’s features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent ai road traffic monitoring. In addition, it supports manual export and automatic export for easy management by security operators.

LPR Smart Search

Plate Data Management

Milesight offers a number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems. AI Road Traffic 5G Pro Bullet Plus Camera features on-edge plate management for black/white lists realizing the fast implementation for barrier control. It also works well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions. Besides, it offers various CGI/APIs and supports interfaces and protocols like TCP, HTTP, etc., which makes it easy to integrate openly with all data being pushed to third-party VMS or platforms.

Plate Data Management

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition,

Superior Image Quality

Milesight applies Sony’s high sensitive 1/2″ sensor for its high sensitivity which is designed for capturing saturated and sharp images even in pitch dark environment. Milesight AI Road Traffic 5G Pro Bullet Plus Camera is coupled with the 3 in 1 Super WDR Pro, 100fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.

Superior Image Quality

Easy Deployment and Compact Structure

Featuring 4X Optical Zoom Lens, Milesight AI Road Traffic 5G Pro Bullet Plus Camera achieves a clear visual experience perfectly for long distance. 5G antenna is built outside the camera and the 5G module is directly merged inside the camera. By inserting the SIM card, you can monitor in places where network wiring is not convenient. No need to worry if you are in complex environments, versatile interfaces and integrated junction box ensure installation neat and tidy.

Easy Deployment and Compact Structure

Specifications

Camera Name AI Road Traffic 5G Pro Bullet Plus Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Wave Length 850nm (Default); 740nm (Optional)
Illumination Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F1.7
Iris Control Auto
Road Traffic Management Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 95m during the day;
Up to 45m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1 (Integrated Cable Version)
2/2 (Cable Out Version)
Video Max. Image Resolution 2688×1520
Primary Stream 60Hz: 60fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
50Hz: 50fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
Secondary Stream 60Hz: 60fps@(704×576, 640×480, 640×360, 352×288, 320×240)
50Hz: 50fps@(704×576, 640×480, 640×360, 352×288, 320×240)
Tertiary Stream 60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 320×240)
50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 320×240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Mobile Communication Parameter Wireless Communication Support 5G/4G/3G
Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/
B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD: B34/B38/B39/B40/B41/B42/B48
LAA: B46
WCDMA: B1/B2/B4/B5/B8/B19
Wireless Transmission Speed SA: DL 2.4Gbps; UL 900Mbps
NSA: DL 3.4Gbps; UL 550Mbps
LTE: DL 1.6Gbps; UL 200Mbps
SIM Card Nano SIM
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS,
DHCP, FTP, NTP, SMTP, SNMP,
UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression G.711/AAC/G.722/G.726
Audio Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General Working Temperature -40℃~60℃
Working Humidity 5~90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Surge Protection 4KV
Weight 1623g
Dimensions 320mmX134mmX126mm
320mmX134mmX208mm (With Antennas)
Warranty 3/5 Years
Certifications EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety CE-LVD (EN IEC 62368-1)
RF CE-RED (EN 301908-1, EN 301908-2, EN 301908-13, EN 301908-25, EN301489-1, EN301489-52, EN 62133)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention

R – High Frame Rate (60fps)

T – High Frame Rate (100fps)

P – PoE Supported

C – AI Series

G – 5G Supported

O – IoT Supported
