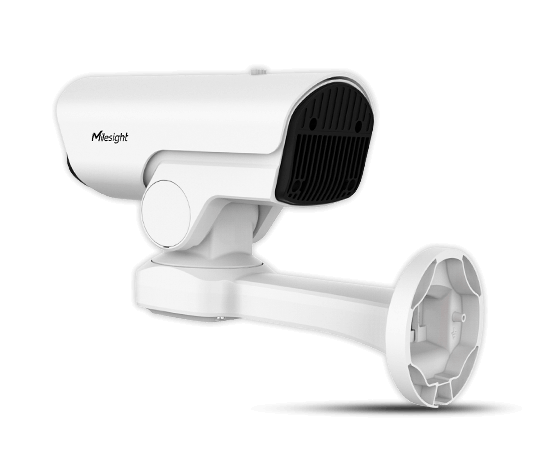

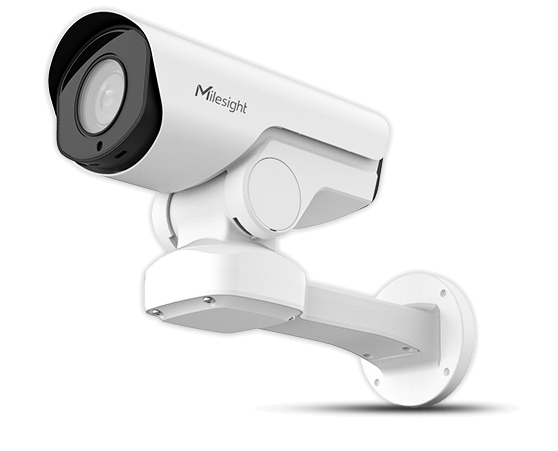

AI Road Traffic PTZ Bullet Plus Camera

TS4467-X20RPE (4MP)

  • Traffic Violation Detection
  • Intelligent AI-powered LPR Algorithm
  • Evidence Camera Linkage
  • Plate Data Management
  • Flexible Pan, Tilt and Zoom Tasks
  • 5X/12X/20X/23X AF Lens
  • 1/1.8” Sensor & 0.002Lux Starlight
  • 90fps High Frame Rate

Description

Introducing Milesight Intelligent Traffic

maxresdefault
maxresdefault
maxresdefault
Introduction VideoReverse Driving DetectionNo Plates Detection

Flexible Pan, Tilt and Zoom Tasks

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 8
patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.

pan tilt zoom

5X/12X/20X/23X Optical Zoom

The 5X/12X/20X/23X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

Traffic Violation Detection

Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

traffic violation detection

Traffic Flow Statistics

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera’s live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

traffic flow statistics

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With
seamless triggering between Milesight traffic camera and regular camera, users
can easily provide solid and convincible evidence including LPR results as well
as overview snapshots.

evidence camera linkage

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle’s features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports
manual export and auto export for easy management.

lpr smart search 1

Plate Data Management

A number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems.

On-edge Plate Management Standalone black/white list management realizes the fast implementation for barrier
control.
Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Third-party VMS Integration
Various CGI/APIs and interfaces, protocols like TCP, HTTP make it
easy to integrate with all data
being pushed to third-party
VMS or platforms.

plate data management

Intelligent AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep
learning model and continuously training to algorithms automatically. Milesight AI Road
Traffic Camera can not only recognize vehicle plates in real time, but also identify various
vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to
improve safety and mobility.

Intelligent White LED

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

intelligent white led

3d positioning

3D Positioning

With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras’ view and zoom ratio by just using a mouse.

Superior Image Quality

With advanced image processing algorithms and starlight sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light and 90fps High Frame Rate make it well-suited for 24/7 traffic monitoring.

starlight
90fps

Easy Deployment and Compact Structure

Featuring the new-generation PTZ motor & IP66-rated weather proofing, Milesight AI Road Traffic PTZ Bullet Plus Camera can work steadily for traffic application
scenarios. Additionally, the camera’s integrated junction box and multiple interfaces also facilitate easy installation, even in complex environments.

structure

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

sip voip

Specifications

Camera
Model TS4467-X20RPE (4MP)
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux@F1.6
B/W: 0Lux with IR on
Shutter Time 1/100000s~1s
Illumination Distance Up to 100m
Digital Zoom 16X
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens
Focal Length 6.4~128mm, 20X Optical Zoom
Zoom Speed Approx 5s (Wide-Tele)
Field of View H60°~H3°/D67°~D4°/V37°~V1°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1000/1500mm (Wide/Tele)
Aperture F1.6~F4.0
Iris Control Auto
Road Traffic  Management
Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 80m
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction
Smart Traffic Function Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 2/2
RS485 Support
PTZ
Pan Range/Pan Speed 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution 2688×1520
Primary Stream 60Hz: 60fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
50Hz: 50fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
Secondary Stream 60Hz: 30fps@(704×576, 640×480, 640×360, 352×288, 320×240)
50Hz: 25fps@(704×576, 640×480, 640×360, 352×288, 320×240)
Tertiary Stream 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240)
50Hz: 25fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Network
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System
System Compatibility API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General
Working Temperature -40℃~60℃
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V/3A±10%
Power Consumption Min.: 11.53W (DC 12V), 13.82W(PoE)
Max.: 21.96W (DC 12V), 25.9W(PoE)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Weight 2.9Kg
Dimensions 110mmX337mmX220mm
Warranty 2 Years / 3 Years (Optional)
Certifications
EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety CE-LVD (EN IEC 62368-1)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention
T – High Frame Rate (100fps)
P – PoE Supported
C – AI Series
