Enterprise NVR 2U Series

VE0601-A

  • Up to 32 Channels Connectivity
  • Pre-loaded with Milesight VMS Server & Client
  • Central Management for Single Site & Multiple Sites
  • High Scalability
  • 6*20TB Storage
  • Ready-to-go Design for Easy Installation
  • N+M Failover

Description

VMS Server & Client Inside

Milesight Enterprise NVR provides a systematic and professional solution with video input, storage, decoding and device management functions, which is pre-loaded with latest Windows-based VMS system and included license to deliver a ready-to-deploy solution.

Powerful Video Input & Decoding Capability

Milesight Enterprise NVR shines with its robust decoding capabilities, offering a wide range of channel options from 16 to 32. This flexibility ensures suitability for projects of all sizes, spanning from small to large-scale, and covering a vast array of applications.

Future Scalable for Any Project Size



Extensive Storage

Up to 6*20TB local storage is supported, also the expandable storage capacity is ready for future storage needs.



Device Compatibility

It is fully compatible with Milesight network cameras, IoT sensors and 3rd-party network cameras, meeting different project needs.



Enriched Capabilities

For increased usability, the Windows-based system supports a number of cutting-edge features, including AI analytics, E-map, video wall, and others.



High Flexibility for Various Needs

Milesight Enterprise NVR can be used standalone for projects starting from small installations with the flexibility to grow.
Moreover, it could serve as a local server from multiple units that can be connected freely on a single system.



Adaptive Streams

The client adapts itself and switches between primary and secondary streams depending on its decoding performance, including memory, CPU and GPU usage, ensuring fluent live streaming.



N+M Failover

In case of a server failure, other servers with N+M Failover function will take over the cameras and ensure continuous recording and boost risk resistance. Moreover, licenses can be shared within the system in case of a failed server, providing extra assurance and guarantee of successful failover.

Specifications

Devices
Included Camera Access License 16
Recording
Recording Schedule 16
Bandwidth
Incoming Bandwidth 10000 Mbps
Outgoing Bandwidth 10000 Mbps
Decoding
Video Format MJPEG, H.264, H.265
Decoding Resolution Up to 12 MP
Decoding Capability* Display with 1080P Monitor
D1(704*576)@30fps=16ch
2MP(1920*1080)@30fps=16ch
5MP(2592*1944)@30fps=11ch
12MP(4000*3000)@20fps=5ch
Event & Alarm
Event and Alarm Rules 1000
Users & Roles
Concurrent Accesses via Clients, App Clients 300
Users 1000
Roles 100
Local Viewing
Local Viewing Support
System
Main Processor 2.0 GHz Intel Celeron Series
Memory 2*4GB DDR4
Network Interface 4*2.5 GbE RJ-45 ports
Operating System Microsoft Windows 10 IoT Enterprise 64bit
GPU Options Integrated GPU
Auto Power On Support
Auxiliary Interface
HDD Drives (Video Data) 6*SATA (3.5″ or 2.5″)
SSD Drive (Operating System) M.2 SSD(1*256 GB Pre-installed)
RAM 2*SO-DIMM DDR4 2666 Slot (2*4GB /2*8GB Pre-installed)
Support Up to 16GB
Support Dual-Channel Mode
Capacity Up to 20TB capacity for each disk
Recording Storage Capacity Up to 6*20TB raw

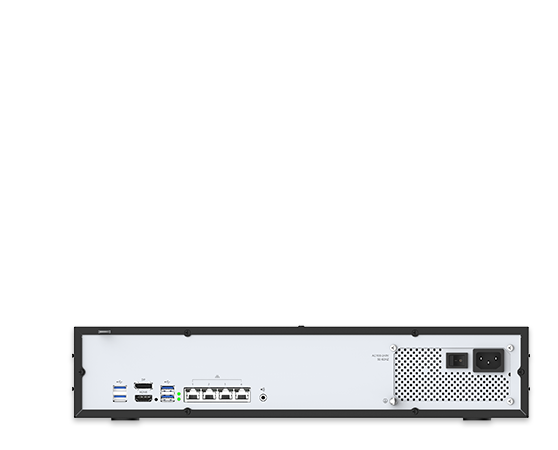

LAN 4*2.5Gbps LAN
PCI-E 1*PCI-E4 slot
Display 1*HDMI Port
1*DP Port
Support independent and synchronous display
Internal I/O 1*Power Connector(ATX_PWR 24pin)
1*Power Connector(CPU_PWR 4pin)
1*CPU Fan
1*COM Connector (9pin)
1*Front Panel Connector
Audio 1* HD Audio Connector

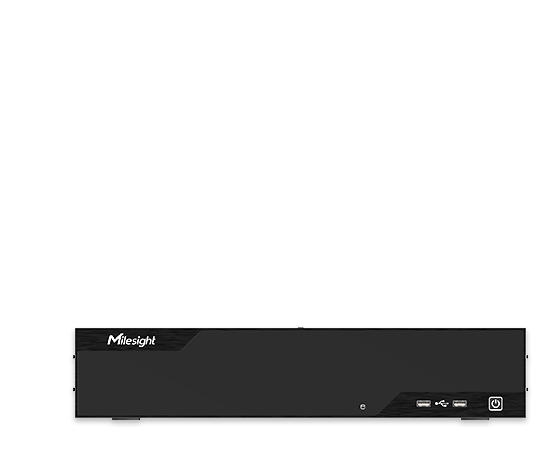

USB Interface Front panel: 2*USB 2.0
Rear panel: 2*USB 2.0, 2*USB 3.0
Power Supply AC 100-240V, 50-60Hz
General
Consumption ≤30W(without HDD)
Working Temperature 0°C to 35°C (32°F to 95°F)
Working Humidity 10% to 90% RH (no freezing and no condensation)
Dimension 440mm×420mm×88.2mm
Weight 8.1Kg
Warranty 3 Years
