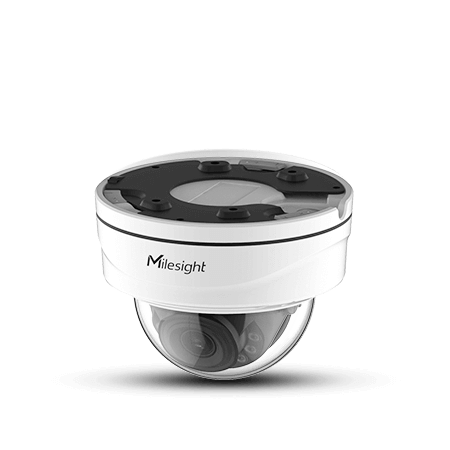

The Milesight Q Series Camera combines compact design with advanced features like TrueColor, On-Guard, VCA 2.0, and MSense. Offering exceptional performance in low-light conditions, it’s the perfect choice for reliable, everyday security.
|
Camera |
|
|---|---|
| Model | MS-CQ5472-HPG1 |
| Image Sensor | 1/2.65” Progressive Scan CMOS |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE) 0 lux (Illuminator on) |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s ~ 1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | 2.8mm: D: 68.5m O: 27m R: 13.5m I: 6.5m 4mm: D: 86m O: 34m R: 17m I: 8.5m |
| S/N | >56dB |
|
Illuminator |
|
| Illuminator Type | 6 x Smart Hybrid Lights (Mixed IR and White Warm Lights) |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 40m (IR Light), Up to 30m (White Warm Light) |
| Illuminator On/Off Control | Auto, Manual |
| Smart Hybrid Lights | Support |
| Red and Blue Flashing Lights | 1 x Red Light and 1 x Blue Light |
|
Lens |
|
| Lens | 2.8mm, 4mm |
| Aperture | F1.0 |
| Field of View | 2.8mm: H:111° V:58.5° D:136° 4mm: H:92° V:50° D:108.5° |
| Camera Angle Adjustment | Pan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355° |
| Close Focus Distance | 2.8mm: 1m 4mm:1.5m |
| Mount | M12 |
|
Video |
|
| Max. Image Resolution | 2960×1664 |
| Primary Stream | 60Hz: 30fps@(2960×1664, 2688×1520, 1920×1080, 1280×720) 50Hz: 25fps@(2960×1664, 2688×1520, 1920×1080, 1280×720) |
| Secondary Stream | 60Hz: 30fps@(704×576, 640×480, 640×360) 50Hz: 25fps@(704×576, 640×480, 640×360) |
| Tertiary Stream | 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360) 50Hz: 25fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
|
Image |
|
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc. |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
|
Audio |
|
| Built-in Microphone | Yes, Single Microphone |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
|
Network |
|
| Ethernet | 1 x RJ45 10M/100M Ethernet Port |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
|
Intelligent Analytics |
|
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Face Capture | Capture faces, get real-time snapshots and integrate with third-party systems for advanced analysis |
|
Event |
|
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card,etc. |
| Event Action | FTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc. |
|
System |
|
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G&M&S&T, One API |
|
General |
|
| Power Supply | PoE (802.3af) / DC 12V±25% |
| Working Temperature | -40℃ ~ 60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Surge Protection | 4KV |
| Power Consumption | Min.: 3W (DC 12V), 4W (PoE) Max.: 7W (DC 12V), 8W (PoE) |
| Casing Material | Metal |
| Net Weight | Approx. 1.0kg |
| Gross Weight | Approx. 1.3kg |
| Dimensions | Φ143mm X 108.4mm |
| Warranty | 3 Years / 5 Years (Optional) |
|
Certifications |
|
| EMC | CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
* Naming Convention
MS-C – Milesight Camera
Q – Q Series
H – Support Smart Hybrid Lights
Y – Support Speaker & Dual Mic
P – PoE Supported
GX- Platform Upgrade e.g.:G1 represents the first generation
