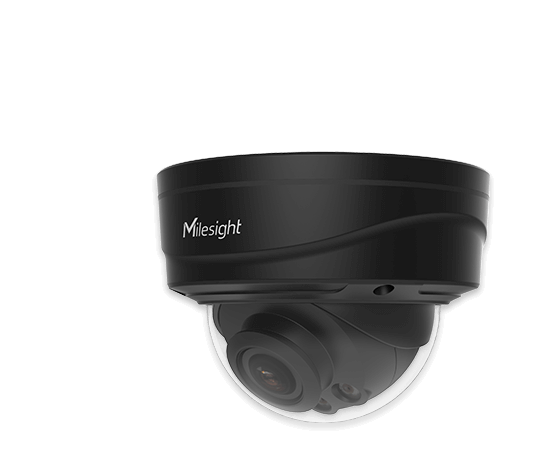

Entrance & Exit AI LPR Pro Dome Camera Dome-shaped Model for LPR Solution

MS-C2972-RFLPE

  • Intelligent AI-powered LPR Algorithm
  • Black & White List and No-plate Vehicle Detection
  • Evidence Camera Linkage
  • LPR Smart Search
  • 140dB Super WDR
  • IP67 & IK10 Full Protection
  • Clamshell Design for Easy Installation
  • Versatile Interfaces

Description

Introducing Milesight Intelligent Traffic

maxresdefault
maxresdefault
Introduction VideoNo Plates Detection

Black/White List and No-plate Vehicle Detection

With the built-in AI LPR algorithm and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable to achieve standalone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate, such as a campus or an apartment.

plate management

Intelligent AI-powered LPR Algorithm

Based on built-in AI algorithm, Milesight Entrance & Exit AI LPR Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and efficiency for access control at both entrances and exits.

Efficient & Simple
Installation

Milesight creatively introduces the clamshell design to the dome camera, which enlarges the space to make cable connection a piece of cake. Meanwhile, Milesight provides a light thin mounting bracket to further reduce the installation troubles to the least.

efficient installation

Easy and Flexible Deployment

Standalone Barrier Control

With built-in AI LPR algorithms and embedded black/white list, the camera enables a standalone and easy-to-deploy solution for gate or barrier control.

Milesight Back-ends Integration

Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.

Third-party VMS Integration

Various CGI/APIs, interfaces and protocols like TCP, HTTP make it easy to integrate with third-party VMS or platforms.

easy deployment

Evidence Camera Linkage

Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. With the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver’s face and loaded materials in trucks.

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle’s features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

lpr smart search

140dB Super WDR

Milesight’s sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of road traffic details.

wdr

Smart IR II Technology

The IR LEDs technology upgraded to provide better image clarity and quality in the dark night. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

ultra low light

0.005Lux Ultra Low-light

Milesight Entrance & Exit AI LPR Pro Dome Camera is able to deliver detailed clear images in low and near-infrared light conditions down to 0.005Lux (Color) and 0Lux (B/W), ensuring superior performance for 24/7 traffic monitoring.

60fps High Frame Rate

With the industry leading frame rate reaching 60fps, Milesight Entrance & Exit AI LPR Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.

Versatile Interfaces

The multi-interface cable is available with rich interfaces including PoE port, DC, Alarm I/O and Audio Output to offer more choices for easy cable management and various needs.

versatile interfaces

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

sip voip

Specifications

Camera
Name Entrance & Exit AI LPR Pro Dome Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.4
B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
Illumination Distance Up to 20m
S/N >55dB
Lens
Lens Motorized 2.7~13.5mm@F1.4
Field of View H115°~H34°/D135°~D39°/V62°~V19°
Mount Φ14
Focus Control Auto/Manual
Entrance & Exit Management
Max. Vehicle Speed 30 km/h
Recognition Accuracy >98%
Coverage 2 lanes
Country/Region Supported More than 80 countries and regions
ANPR Distance Up to 10m
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone and 1 Audio Output interface
Alarm I/O 1/1
Video
Max. Image Resolution 1920×1080
Primary Stream 60Hz: 60fps@(1920×1080, 1280×960, 1280×720, 704×576)
50Hz: 50fps@(1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream 60Hz: 60fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×180)
50Hz: 50fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×180)
Tertiary Stream 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240)
50Hz: 25fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Network
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System
System Compatibility API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature -40℃∼60℃
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption Min.: 2.79W (DC 12V), 3.69W(PoE)
Max.: 5.65W (DC 12V), 7W(PoE)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 1100g
Dimensions Φ143mmX108.4mm
Warranty 3/5 Years
Certifications
EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety CE-LVD (EN IEC 62368-1)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

*Naming Convention
R – High Frame Rate (60fps)
F – Motorized Vari-focal Lens
L – LPR Supported
P – PoE Supported
C/E – AI Series
