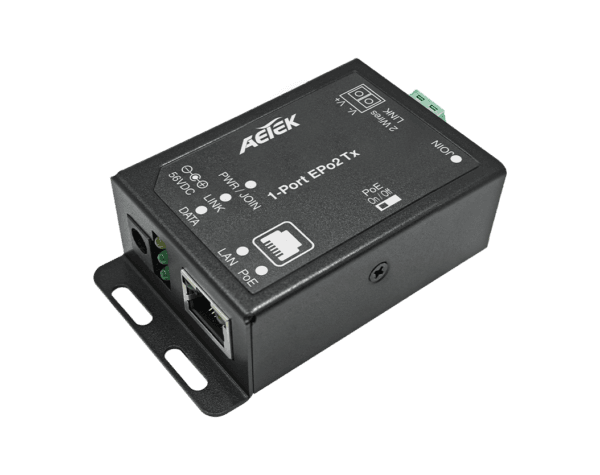

AETEK 2E10-110-TX-V2 1-Port EPo2 TX Adapter with 802.3af/at/bt PoE++ Output

Description

The AETEK 2E10-110-TX-V2 is a 1-port EPo2 TX adapter that delivers 802.3af/at/bt PoE++ output over existing two-conductor cabling. It reuses in-wall doorbell wire, telephone line, or generic 2-conductor cable instead of new Cat5e/6 runs. This makes it a practical retrofit tool for system integrators working in older buildings across Saudi Arabia.

How It Works

The 2E10-110-TX-V2 pairs with a matching 2E10-110-RX-V2 receiver unit at the far end of the run. The TX adapter accepts a 56VDC power input and passes both data and PoE++ power over the 2-conductor cable to the RX unit, which then powers the connected IP device. Setup is plug-and-play, with no software configuration required.

Power Output and PoE Standards

The adapter supports three PoE standards from a single port: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++). This lets one adapter serve a wide range of end devices, from low-power sensors to higher-draw PTZ cameras, access points, and intercoms, without swapping hardware. The unit itself draws only 2W.

Extended Range for Retrofit Projects

Standard PoE over Cat5e/6 is limited to 100m. The 2E10-110-TX-V2 extends that reach up to 600m for data and power combined, with actual distance depending on the gauge of the cable used. It works over doorbell wire (18/20/22 AWG), telephone cable (24/26 AWG), and generic 2-conductor cable (23/24 AWG). For retrofit projects where pulling new structured cabling is impractical or too costly, this lets integrators reuse cable already in the wall.

Connectivity and Build

The adapter has one 10/100 Mbps Ethernet RJ45 port and a 2-pin terminal block for the EPo2 connection, supporting data rates up to 100 Mbps. It ships in a compact metal enclosure (85.4 x 47.1 x 27.0 mm, 0.2 kg) that supports wall mount or optional DIN-rail mounting. Status LEDs indicate PoE, LAN, power, and link state for quick field diagnostics.

Built for Demanding Environments

The unit operates from -20°C to 60°C and is rated for 5-95% humidity, non-condensing, which suits both indoor installations and less-conditioned spaces such as parking structures or perimeter enclosures common in Saudi commercial and industrial sites. It carries CE, FCC, VCCI, and C-Tick EMC certifications, plus EN62368-1 safety compliance.

Typical Applications

System integrators and MEP contractors use the 2E10-110-TX-V2 for IP camera and access-control retrofits, PoE range extension in warehouses and campuses, and any deployment where new cabling is not an option. Contact Seven Sectors Trading Co. for pricing and availability in Saudi Arabia.
