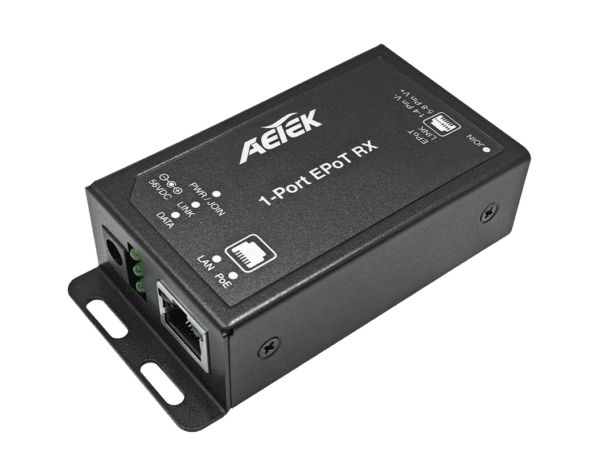

AETEK TE11-110-RX-V2 1-Port PoE PD EPoT RX Adapter

TE11-110-RX-V2

  • EPoT receiver with 1 EPoT port + 1 PoE PD port
  • Sources all link power from a PoE switch or PoE injector
  • IEEE 802.3bt 90W PoE recommended for long-range links
  • Supports IEEE 802.3 af/at/bt PoE or 48-56VDC input
  • Delivers data & power up to 1,200m (3,937ft) over single STP/FTP cat5e/6 shielded cable
  • Supports peer-to-peer, daisy-chain, and failover ring topologies
  • Optional 19” 8-bay rack mount chassis (CH-110-V2)

Description

The AETEK TE11-110-RX-V2 is a 1-port PoE PD EPoT receiver equipped with 1 EPoT port and 1 PoE PD port, allowing all link power to be sourced from a PoE switch or injector. IEEE 802.3bt 90W PoE is recommended for a long-range PoE solution providing data and power to an EPoT TX adapter and PoE IP camera over a single STP/FTP cat5e/6 shielded cable up to 1,200m (3,937ft). Ideal for long-range camera and access point deployments across Vision 2030 giga-projects in Saudi Arabia. Pairs with the TE10-110-TX-V2 transmitter.
