AETEK XE11-110-RX-V2 1-Port PoE PD EPoC RX Adapter

XE11-110-RX-V2

  • EPoC receiver: 1 BNC coax port + 1 PoE PD LAN port
  • Sources all link power from a PoE switch or injector
  • IEEE 802.3bt 90W PoE recommended for long-range links
  • Supports IEEE 802.3 bt/at/af PoE or 48-56VDC input
  • Optional 19” 8-bay rack mount chassis (CH-110-V2)
  • Optional EPoC surge protector (SD-301)

Description

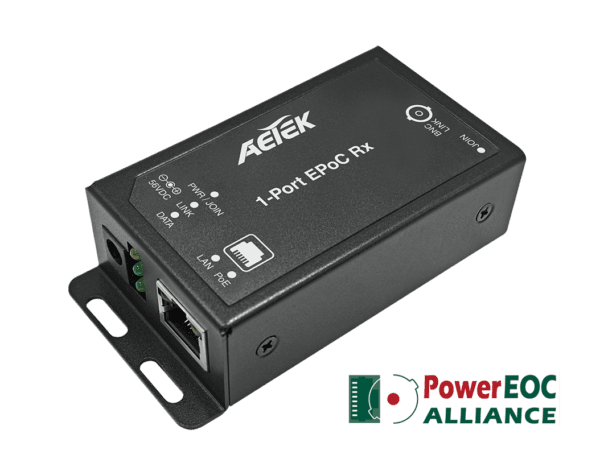

The AETEK XE11-110-RX-V2 is a 1-port PoE PD EPoC receiver equipped with 1 BNC port and 1 PoE PD LAN port, allowing all link power to be sourced from a PoE switch or injector. IEEE 802.3bt 90W PoE is recommended for a long-range PoE solution providing data and power to an EPoC TX adapter and PoE IP camera over a single coaxial cable up to 1,200m (3,937ft). Also used to upgrade legacy analog CCTV to IP surveillance without changing existing coax infrastructure — ideal for retrofit and long-range deployments across Saudi Arabia. Pairs with the XE10-110-TX-V2 / XE22-110-TX-V2 transmitters.
