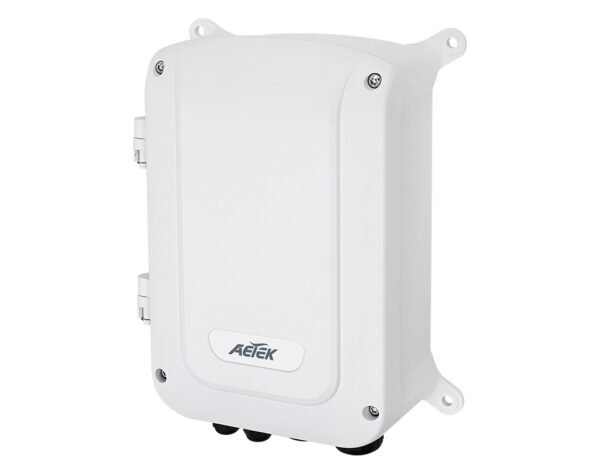

AETEK Outdoor 4-Port PoE Switch Mainstream Outdoor Node for Villas and Compounds

H40-044-30-150-V3

  • 4 x 30W 802.3at PoE Ports
  • 2 x SFP Fiber Uplinks
  • 2 x RJ45 Copper Uplinks
  • 150W Total Power Budget
  • AC Power On/Off Switch
  • IP67/IK10 Cast Aluminum Cabinet
  • 6KV PoE + 40KV AC Surge Protection
  • Operating Range: -40°C to 65°C

Description

The Go-To 4-Camera Outdoor Node

The H40-044-30-150-V3 is the mainstream outdoor PoE solution for residential compounds, villas, fuel stations, warehouses and small-to-mid commercial sites. Four 30W PoE ports power standard fixed and dome IP cameras while leaving uplink flexibility through both SFP and RJ45.

40KV AC Surge Protection – Industry Leading

Saudi Arabia’s grid surges and occasional lightning events can destroy ordinary outdoor electronics. The V3 generation upgrades AC surge protection to 40KV, providing dramatic resilience for installations powered from open-air AC sources.

Service-Friendly AC Switch

An external AC power on/off switch lets installers and maintenance teams safely de-energize the unit during service calls – a small but important detail for safety compliance on Saudi project sites.

Specification

Specification Value
Series H40 Outdoor PoE Switch (Unmanaged)
PoE Ports 4 x 30W 802.3at PoE
Uplink Ports 2 x SFP + 2 x RJ45
Total Power Budget 150W
Enclosure IP67 / IK10 Cast Aluminum
PoE Surge Protection 6KV
AC Surge Protection 40KV
Operating Temperature -40°C to 65°C
