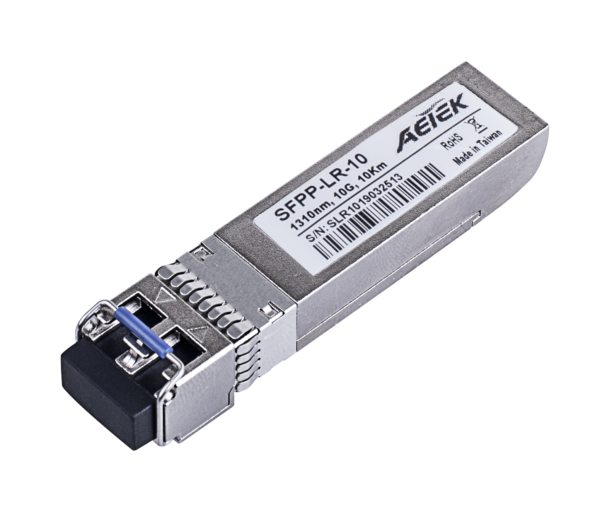

AETEK 10G SFP+ Module 1310nm 10km Core Uplink for Master Switches

SFPP-LR-10

  • 10 Gigabit Ethernet Transceiver
  • SFP+ Form Factor
  • Single-Mode Fiber
  • 1310nm Wavelength
  • 10km Reach
  • Built-In DDM Diagnostics
  • Duplex LC Connector
  • Core 10G Uplinks

Description

10G Core Uplinks for Campus CCTV

The SFPP-LR-10 is the 10 Gigabit fiber transceiver for AETEK’s C60 master switches. Use it to aggregate multiple GbE PoE switches into a 10G core, providing the bandwidth needed for high-camera-count campus surveillance.

DDM Monitoring

Digital Diagnostic Monitoring (DDM) provides real-time visibility into transceiver health – temperature, voltage, transmit/receive optical power. Combined with AETEK NTS, DDM helps operators detect failing fiber links before they cause outages.

Standard 10km Reach

Single-mode fiber at 1310nm with 10km reach – the industry standard for 10G campus and building-to-building links across most Saudi enterprise and government deployments.

Specification

Specification Value
Series SFPP 10G
Data Rate 10 Gbps
Form Factor SFP+
Fiber Type Single-Mode
Wavelength 1310nm
Reach 10km
Diagnostics DDM Supported
Application 10G Core Uplinks
