AETEK Ceiling PoE Switch Streamline Office & Retail Surveillance Installations

C42-050-30-A

• Patented Ceiling-Mount Latch-Bolt Design
• 1 x GbE bt PD PoE Input Port
• 1 x GbE bt PoE + 4 x GbE at PoE PSE Output Ports
• Eliminates Need for Extra Power Adaptors
• Snap-On Sleek Cover for Premium Aesthetics
• Ideal for Retail, Hospitality and Offices
• Rich Status LEDs for Quick Overview
• Easy Installation – Auto-Fasten via Tightened Bolt

Description

Patented Ceiling Installation in Seconds

The C42-050-30-A leverages AETEK’s unique latch-loaded bolt mechanism to auto-fasten onto ceiling boards once the bolt is tightened. This single-step mounting removes the need for expensive technician hours and complex cable pulling, making it the ideal PoE solution for retail stores, offices, hospitality venues, and any space where ceiling aesthetics matter.

Eliminate Power Adaptor Clutter

By converting a single bt PoE input into 1 x bt PoE plus 4 x at PoE outputs, the switch directly powers IP cameras, wireless access points and other non-PoE devices through PoE. This eliminates the need for additional power adapters in constrained ceiling space and dramatically streamlines installation.

Premium Finish for Visible Locations

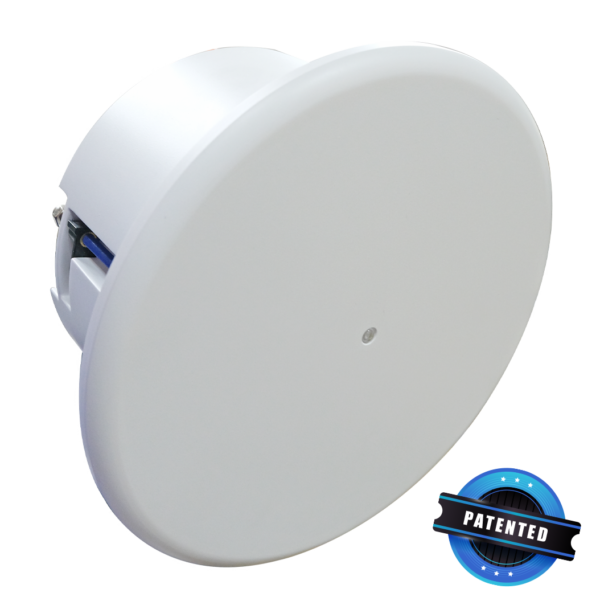

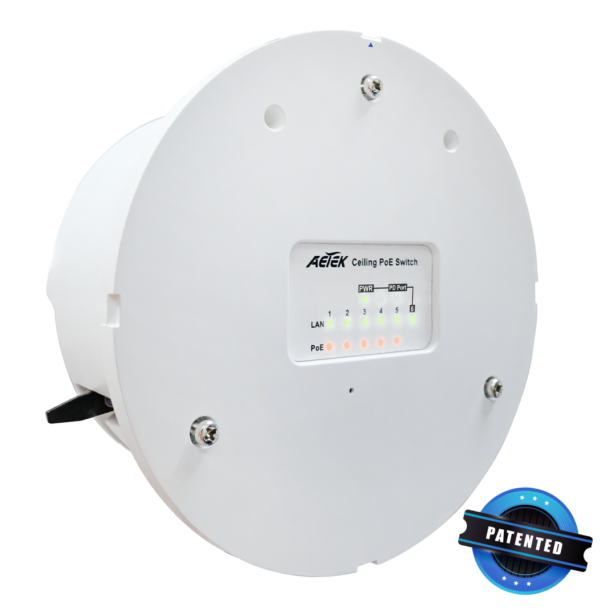

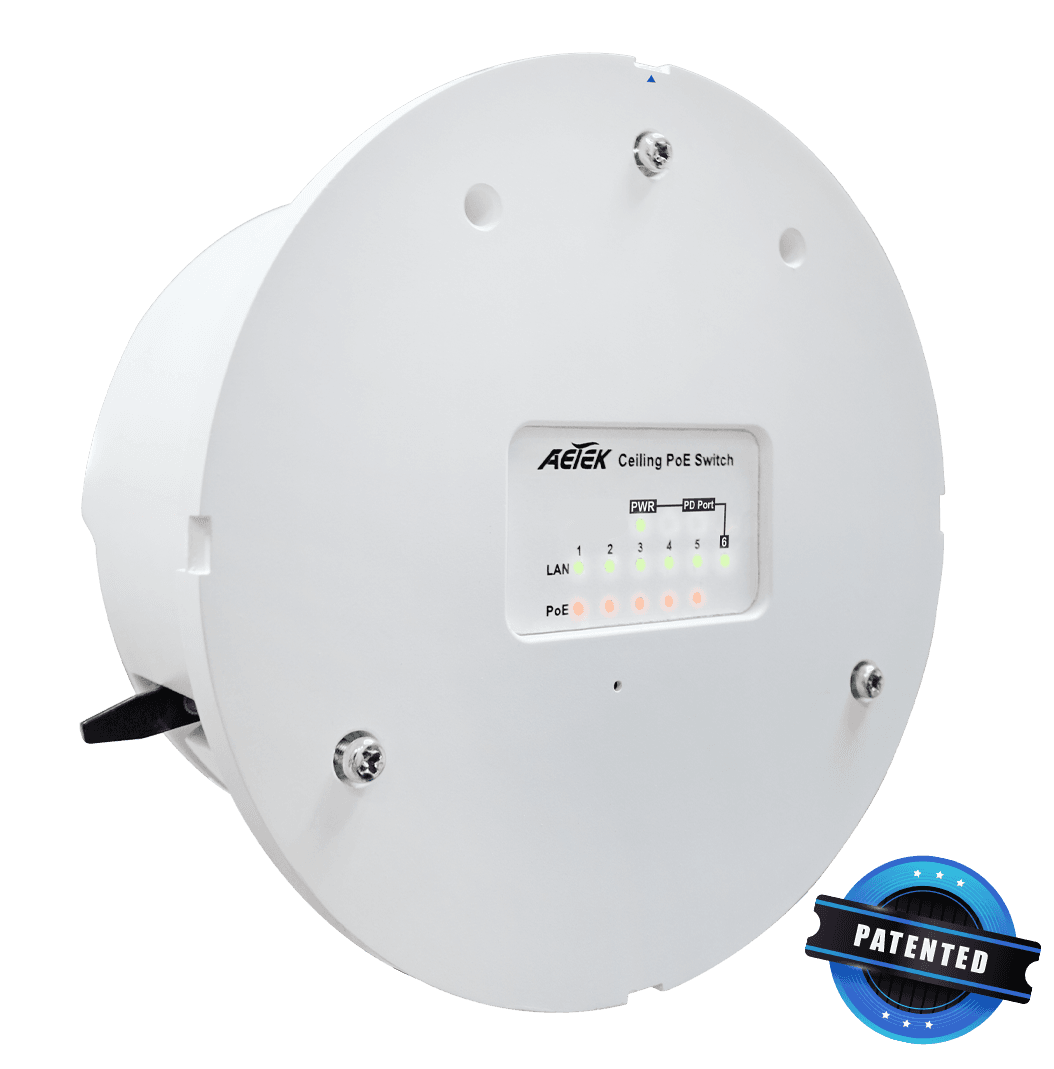

Unlike industrial-grade switches hidden in cabinets, the C42 series features a snap-on cover that creates a sleek, finished look suitable for client-facing spaces. Status LEDs remain accessible for quick power and data transmission diagnostics.



Specification



Specification Value
Series C42 Ceiling PoE Switch
PoE Input 1 x GbE 802.3bt PD Input
PoE Output 1 x GbE bt PoE + 4 x GbE at PoE
Switch Type Unmanaged
Mounting Patented Ceiling Latch-Bolt
Form Factor Ceiling-Mount with Snap-On Cover
LED Indicators Power, Link, PoE Status
Application Retail, Office, Hospitality, Hospitals
