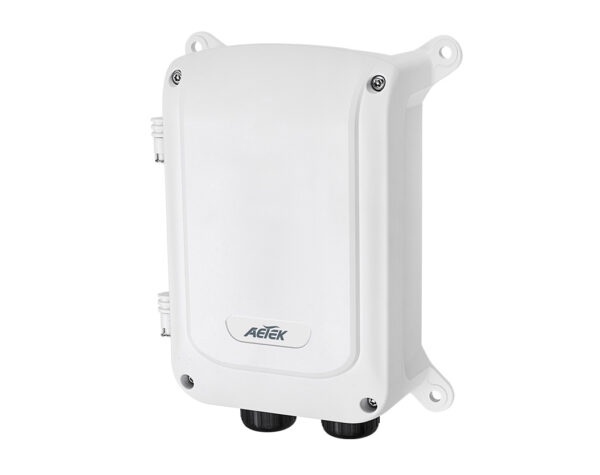

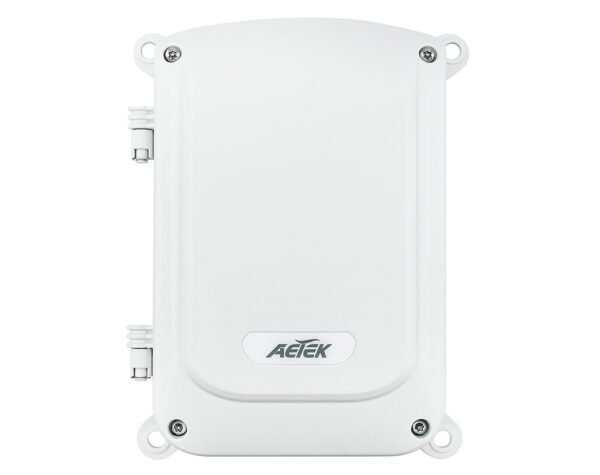

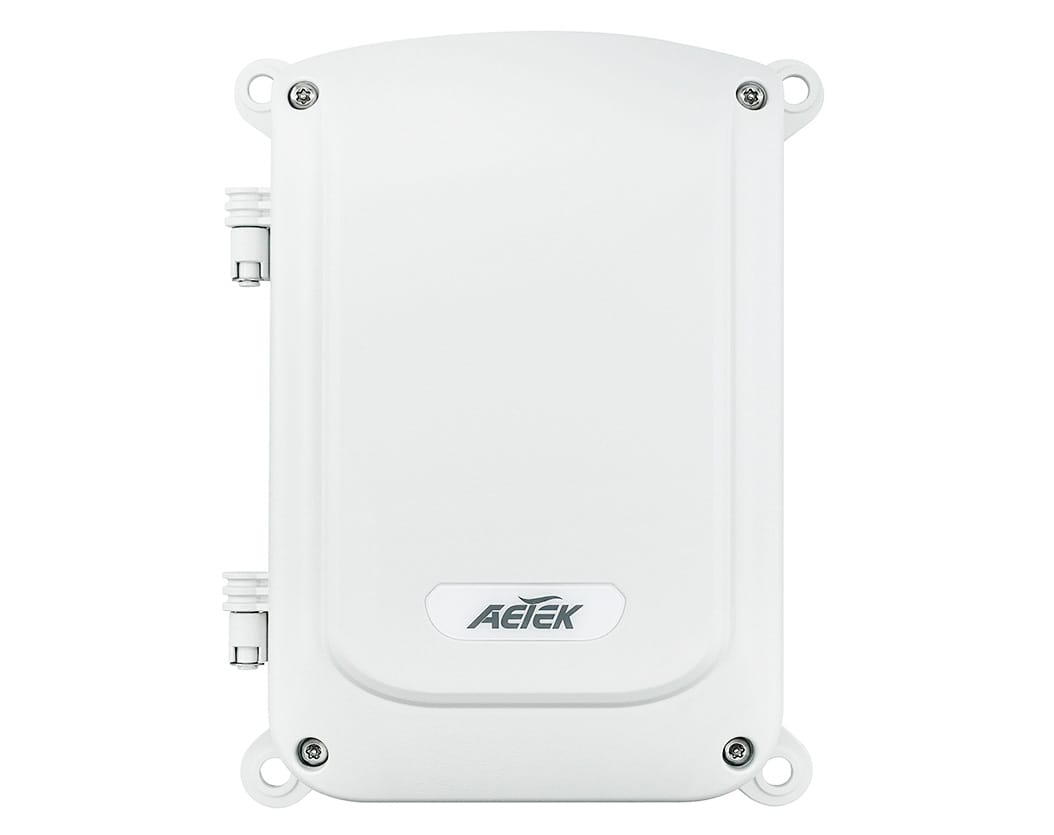

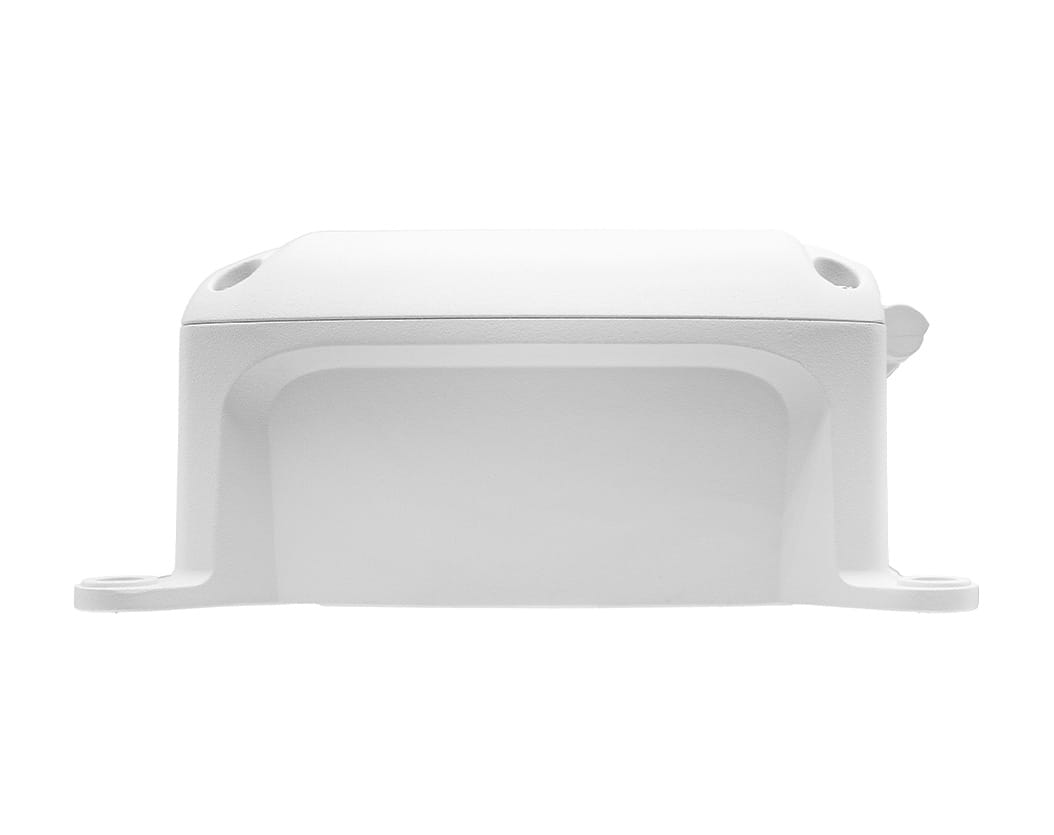

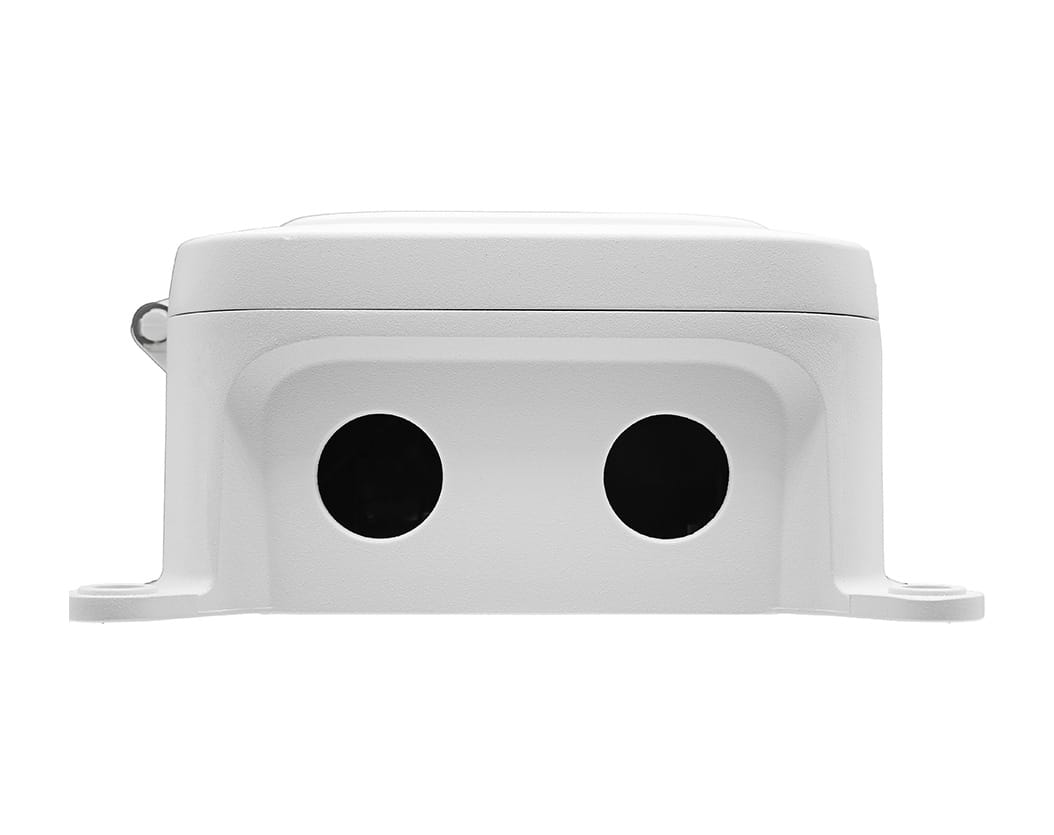

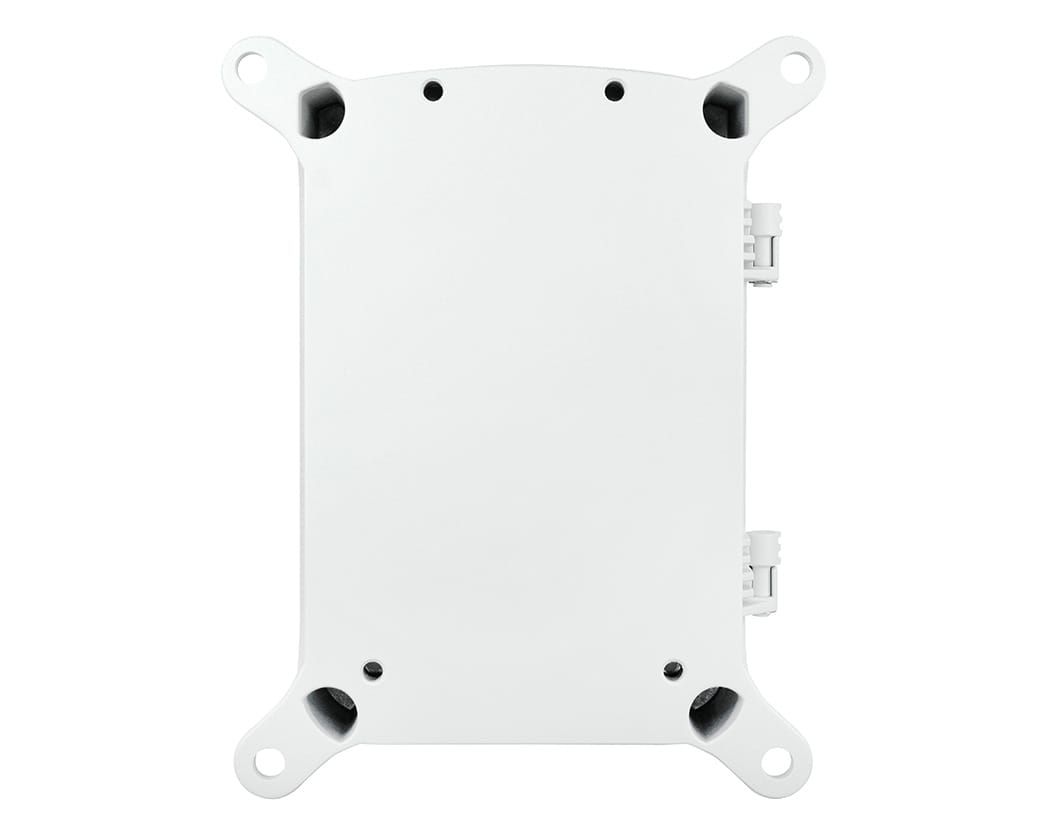

AETEK Outdoor 95W bt PoE Switch IP67/IK10 Rugged Switch for Perimeter CCTV

H40-022-91-120-V2

  • 2 x 95W bt/PoH PoE Ports
  • 2 x SFP Fiber Uplinks
  • 120W Total Power Budget
  • IP67/IK10 Cast Aluminum Enclosure
  • 6KV PoE Surge Protection
  • 10KV AC Surge Protection
  • Operating Range: -40°C to 65°C
  • Built for Saudi Outdoor Conditions

Description

The AETEK 95W outdoor KSA is an advanced AETEK networking solution designed for professional surveillance and access control installations across Saudi Arabia.

Engineered for Saudi Arabia’s Harshest Outdoor Conditions

The H40-022-91-120-V2 is housed in an IP67/IK10 cast aluminum enclosure rated to operate continuously from -40°C up to 65°C ambient. From the heat of Riyadh and Jeddah summers to the cold of Tabuk winters, this outdoor switch maintains rock-solid PoE performance for perimeter cameras.

95W per Port for PTZ + Wireless Backhaul

Two ports deliver up to 95W of IEEE 802.3bt power each – sufficient to drive high-zoom PTZ cameras with heaters and de-foggers, or to backhaul a wireless point-to-point link. Dual SFP slots enable fiber uplinks to the head-end.

Surge-Hardened for Open-Air Installations

Open-air installations face lightning, voltage spikes from grid power and induction across long copper runs. The H40 series includes 6KV PoE-line surge protection and 10KV AC surge protection as standard, dramatically reducing field failure rates.



Available from Seven Sectors — official AETEK distributor for Saudi Arabia. Browse all AETEK networking products in KSA or visit AETEK.

Specification

SpecificationValue
SeriesH40 Outdoor PoE Switch (Unmanaged)
PoE Ports2 x 95W bt/PoH PoE
Uplink Ports2 x SFP
Total Power Budget120W
EnclosureIP67 / IK10 Cast Aluminum
PoE Surge Protection6KV
AC Surge Protection10KV
Operating Temperature-40°C to 65°C
