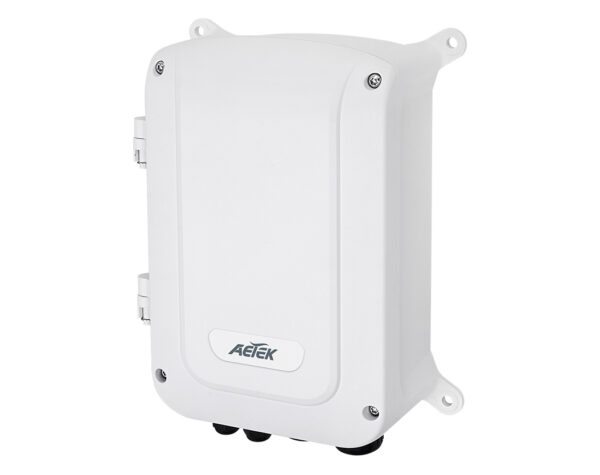

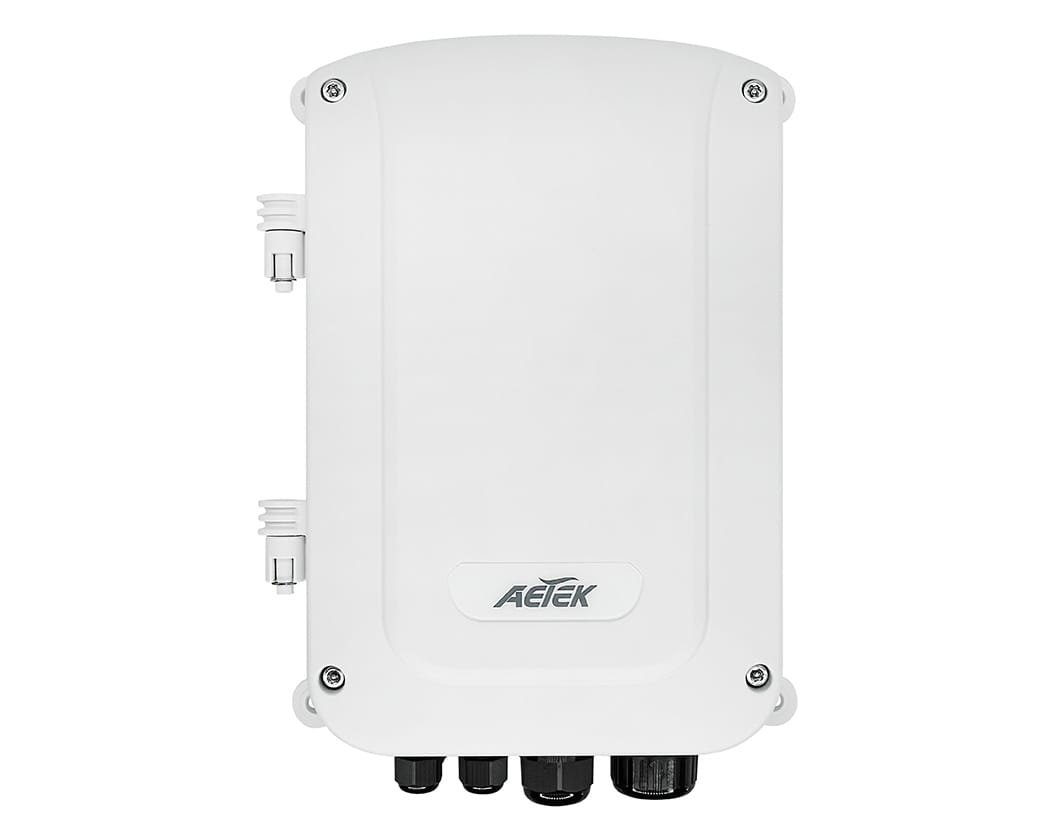

AETEK Outdoor 4-Port 90W bt Managed PoE Switch Flagship Outdoor PoE for Mining and Ports

H60-044-91-250

  • 4 x 90W 802.3bt PoE Ports
  • 2 x SFP + 2 x RJ45 Uplinks
  • L2 PRO Managed with NTS Software
  • 250W Total Power Budget
  • IP67/IK10 Cast Aluminum
  • 6KV PoE + 40KV AC Surge Protection
  • Operating Range: -40°C to 65°C
  • Featured on AETEK Homepage

Description

Flagship 4-Port 90W bt Outdoor Switch

The H60-044-91-250 is AETEK’s hero SKU and the most-specified outdoor managed switch in mining, port, oil & gas and high-security perimeter applications. Four full-spec 802.3bt 90W PoE ports drive the largest outdoor IR PTZ cameras and integrated radar–camera systems.

Topology Mapping for Critical Sites

Built-in NTS automatically maps the network and shows real-time device status. For mining sites, ports and perimeters where downtime translates directly to security and operational risk, this visibility is essential.

Designed for Saudi Mega-Projects

From Ma’aden mining facilities to the King Abdullah Port and Vision 2030 giga-projects, this switch is engineered for the harshest deployments. -40°C to 65°C operating range, IP67/IK10 build and industry-leading surge protection.

Specification

Specification Value
Series H60 Outdoor L2 PRO Managed Switch
PoE Ports 4 x 90W 802.3bt PoE
Uplink Ports 2 x SFP + 2 x RJ45
Total Power Budget 250W
Management L2 PRO Managed + NTS Software
Enclosure IP67 / IK10 Cast Aluminum
Surge Protection 6KV PoE / 40KV AC
Operating Temperature -40°C to 65°C
